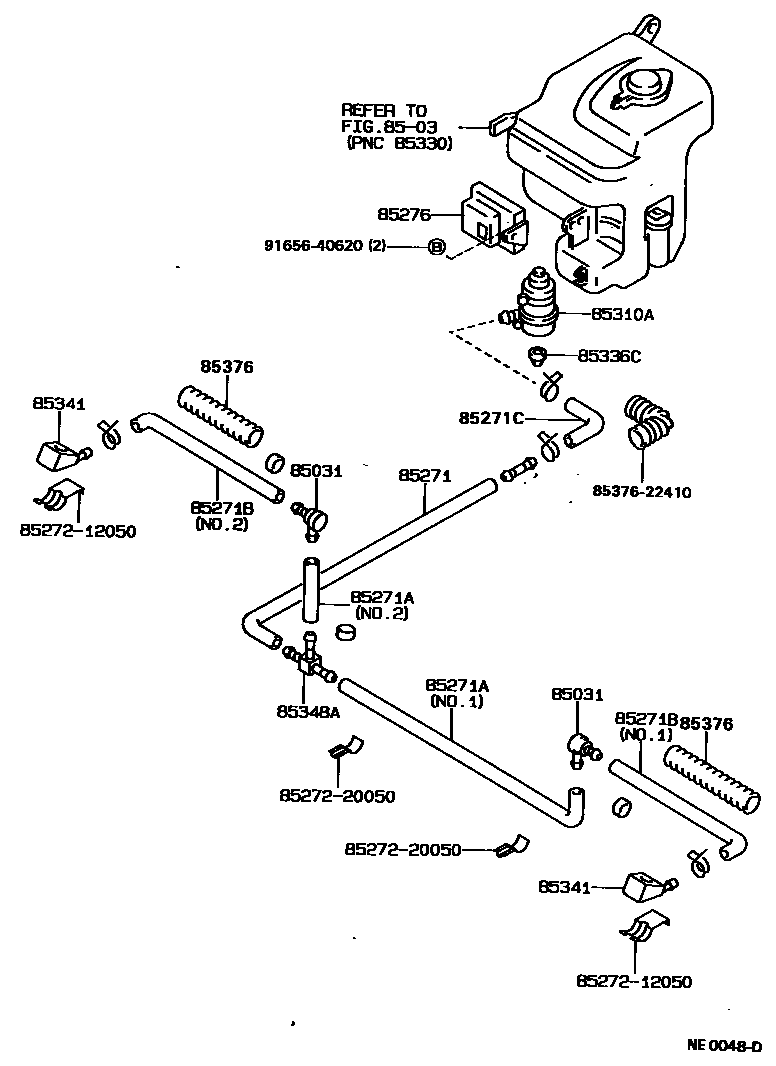

HEADLAMP CLEANER
8503
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85271HOSE, HEADLAMP CLEANER, NO.1
W(ABS OR PS)
85271AHOSE, HEADLAMP CLEANER, NO.2
NO.1
L=75,NO.2
W(PS OR ESC),NO.1
L=50,NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
NO.2
85271CHOSE, HEADLAMP CLEANER, NO.4
L=135
85276RELAY, CLEANER CONTROL
W(PS)
85336CPACKING, HEADLAMP CLEANER MOTOR
85341NOZZLE, HEADLAMP CLEANER WASHER
W(COLORED BUMPER)
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
8527212050CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-12050
8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20050
8537622410PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
main85376-22410
9165640620
main91656-40620
16 parts on this diagram · 1 diagram in section
