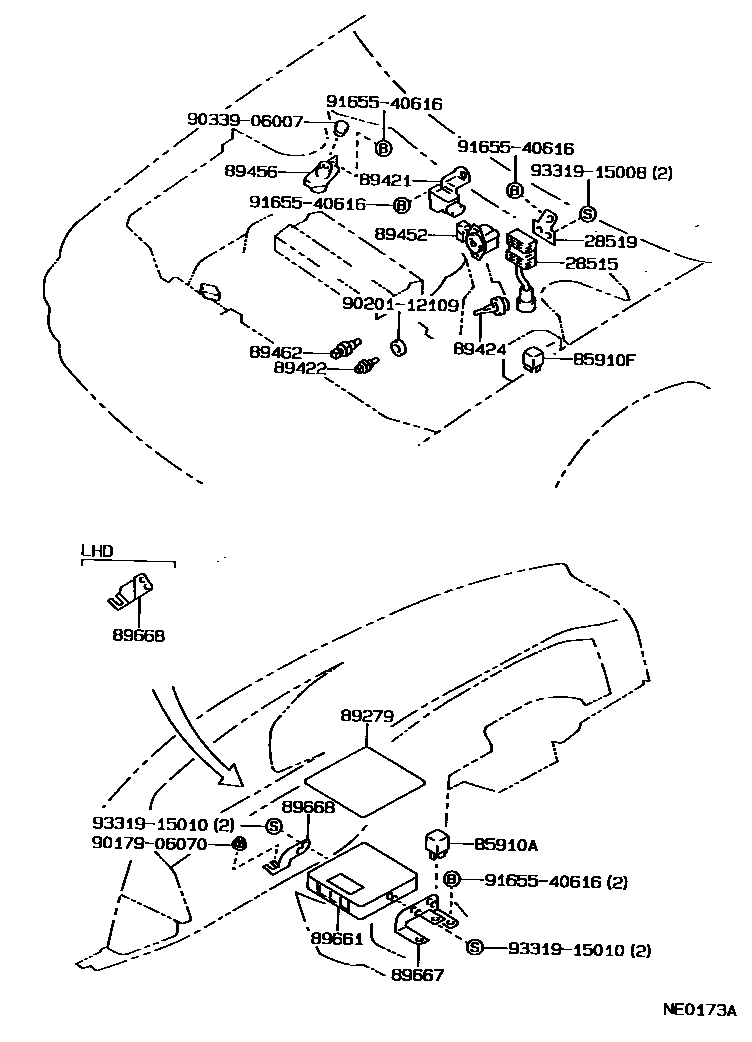

ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
EX.EMISSION CONTROL(A 11)
85910FRELAY, COMPUTER (FOR EFI)
89279COVER, ENGINE CONTROL COMPUTER
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89456RESISTOR, VARIABLE
89462SWITCH, START INJECTOR TIME
89661COMPUTER, ENGINE CONTROL
EX.EMISSION CONTROL (A11)
EX.EMISSION CONTROL (A11)
EX.EMISSION CONTROL (A11)
SWEDEN SPEC,NORWAY SPEC,FINLAND SPEC OR DENMARK SPEC
SWEDEN SPEC,NORWAY SPEC OR FINLAND SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9017906070
main90179-06070
9020112109
main90201-12109
9033906007
main90339-06007
9165540616
main91655-40616
9331915008
main93319-15008
9331915010
main93319-15010
20 parts on this diagram · 2 diagrams in section
