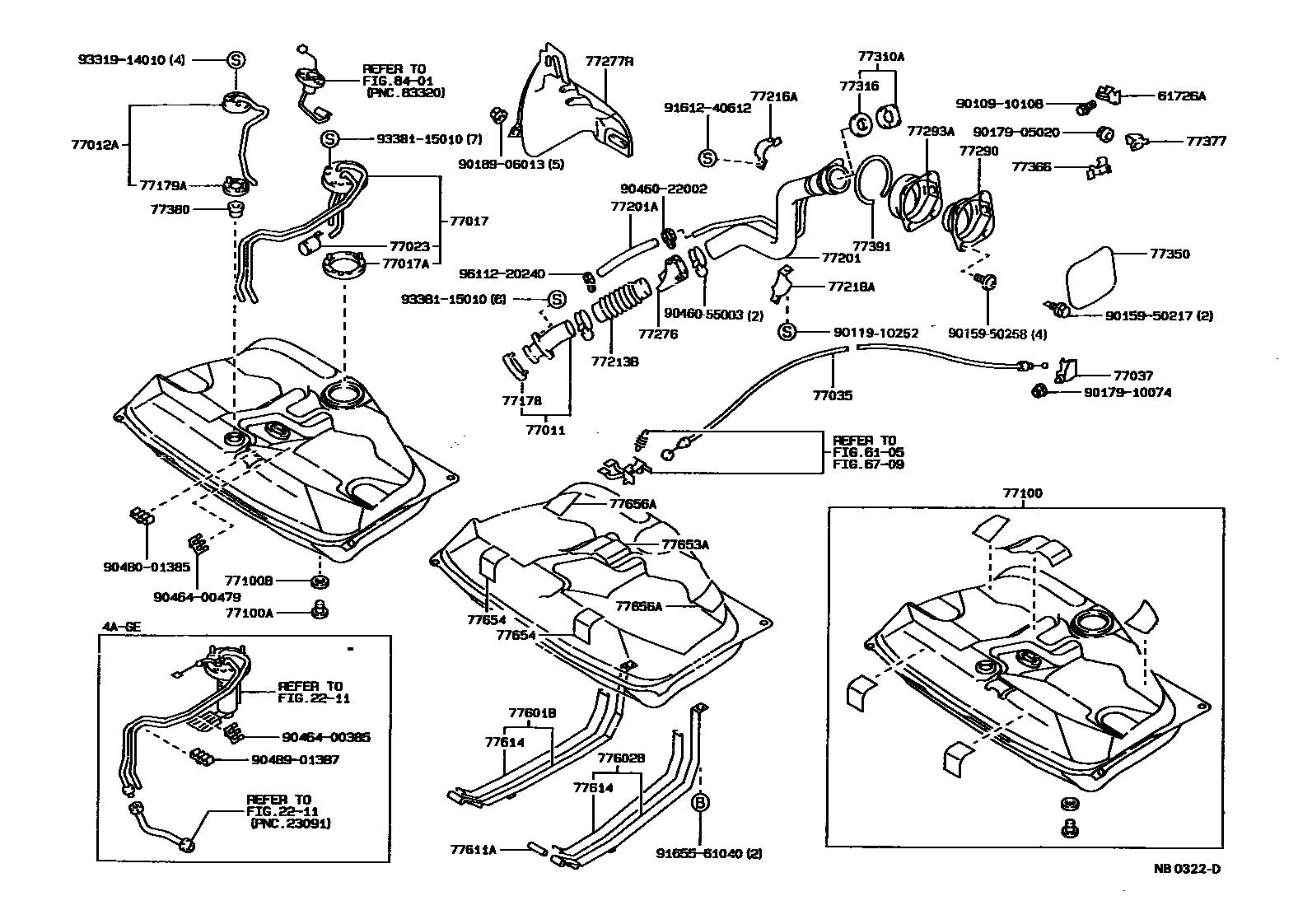

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

2211

6105

61726APLATE, FUEL INLET BOX COVER

main61726-12050iCE90,EE90..STD198705-199205

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12040iAE92,EE90198705-199211

main77011-12080iCE90198705-199206

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12010iEE90..STD198705-198708

EXHAUST EMISSION CONTROL(US'83)

sub77012-12030

main77012-12030iAE92,CE90,EE90198705-199211

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12310iAE92,EE90..CBR198908-199206

main77017-12310iAE92..CBR198705-198908

EXHAUST EMISSION CONTROL(US'83)

main77017-12320iCE90198705-199206

main77017-12330iEE90198705-198908

77017AGASKET, FUEL TANK VENT

main77169-12020iAE92,CE90,EE90..CBR,DSL198705-199206

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iAE92,EE90..CBR198705-199206

main77023-32010iCE90198705-199206

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12230iAE92,CE90,EE90..RHD198705-199206

main77035-12260iAE92,CE90,EE90..LHD..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198705-199211

77100TANK ASSY, FUEL

main77001-19545iAE92,EE90..CBR198705-199206

main77001-19555iAE92,CE90..DSL,EFI198705-199211

sub77001-19595

sub77001-19605

77100APLUG(FOR FUEL TANK)

main90341-20004iAE92,CE90,EE90..DSL,EFI198705-199211

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE92,CE90,EE90..DSL,EFI198705-199211

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-12010iAE92,CE90,EE90198705-198805

main77178-20010iAE92,CE90,EE90198805-199211

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iAE92,CE90,EE90198705-199211

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12340iAE92,EE90..LHD..MTM..CBR198705-198908

EXHAUST EMISSION CONTROL=(US'83) OR (*77)

main77201-12340iAE92,EE90..LHD..MTM..CBR198908-198911

EXHAUST EMISSION CONTROL(*77)

main77201-12340iAE92,EE90..(GLI,SR5,STD,XLI)..EFI198908-199206

main77201-12340iAE92..LHD..GTI198705-199211

EXHAUST EMISSION CONTROL(US'83)

main77201-12350iAE92..GTI;AE92,CE90,EE90..CBR,DSL198705-199211

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22011iAE92,CE90,EE90198705-199211

L=220

sub90445-22024

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12140iAE92,CE90,EE90198705-199211

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12040iAE92,CE90,EE90198705-199211

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12010iAE92,CE90,EE90198705-199206

main77218-12010iAE92,EE90..LHD..MTM..CBR198709-198908

EXHAUST EMISSION CONTROL=(US'83) OR (*77)

main77218-12010iAE92,EE90..LHD..MTM..CBR198908-198911

EXHAUST EMISSION CONTROL(*77)

main77218-12010iAE92..LHD..GTI198709-199211

EXHAUST EMISSION CONTROL(US'83)

main77218-12020iAE92..GTI;AE92,CE90,EE90..CBR,DSL198709-199211

77276PROTECTOR, FUEL HOSE

main77276-12040iAE92,CE90,EE90198705-199211

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12090iAE92,CE90,EE90198705-199211

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12060iAE92,CE90,EE90198705-199211

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12030iAE92,CE90,EE90198705-199211

77310ACAP ASSY, FUEL TANK

main77310-12100iAE92..GTI;AE92,EE90..CBR198705-199211

main77310-16010iAE92,EE90..LHD..MTM..CBR198705-198711

EXHAUST EMISSION CONTROL=(US'83) OR (*77)

sub77310-16011

main77310-16010iAE92..LHD..EFI198705-198711

EXHAUST EMISSION CONTROL(US'83)

sub77310-16011

main77310-16011iAE92,EE90..(GLI,SR5,STD,XLI)..EFI198908-199206

sub77310-12140

main77310-16011iAE92..LHD..GTI198711-199211

EXHAUST EMISSION CONTROL(US'83)

sub77310-12140

main77310-16011iAE92,EE90..LHD..MTM..CBR198711-198908

EXHAUST EMISSION CONTROL=(US'83) OR (*77)

sub77310-12140

main77310-16011iAE92,EE90..LHD..MTM..CBR198708-198911

EXHAUST EMISSION CONTROL(*77)

sub77310-12140

main77310-35061iCE90198705-199206

77316GASKET, FUEL TANK CAP

main77316-12050iAE92..GTI;AE92,CE90,EE90..CBR,DSL198705-199211

main77316-16010iAE92,EE90..LHD..MTM..CBR198705-198908

EXHAUST EMISSION CONTROL=(US'83) OR (*77)

main77316-16010iAE92,EE90..LHD..MTM..CBR198908-198911

EXHAUST EMISSION CONTROL(*77)

main77316-16010iAE92,EE90..(GLI,SR5,STD,XLI)..EFI198908-199206

main77316-16010iAE92..LHD..GTI198705-199211

EXHAUST EMISSION CONTROL(US'83)

77350LID ASSY, FUEL FILLER OPENING

main77350-12160iCE90,EE90..STD198705-199205

main77350-12220iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198705-199211

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12010iAE92,CE90,EE90198705-199211

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12040iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198705-199211

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iAE92,CE90,EE90198705-199211

77391RING, FUEL INLET BOX

main77391-14020iAE92,CE90,EE90198705-199211

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12100iAE92,EE90..LHD..MTM..CBR198705-198908

EXHAUST EMISSION CONTROL=(US'83) OR (*77)

main77601-12100iAE92,EE90..LHD..MTM..CBR198908-198911

EXHAUST EMISSION CONTROL(*77)

main77601-12100iAE92,EE90..(GLI,SR5,STD,XLI)..EFI198908-199206

main77601-12100iAE92..LHD..GTI198705-199211

EXHAUST EMISSION CONTROL(US'83)

main77601-12110iAE92..GTI;AE92,CE90,EE90..CBR,DSL198705-199211

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12060iAE92,CE90,EE90198705-199211

77611APIN (FOR FUEL TANK BAND)

main90250-08019iAE92,CE90,EE90198705-199211

77614SEAT, FUEL TANK BAND

main77681-12010iAE92,CE90,EE90198705-199211

77653ACUSHION, FUEL TANK, NO.3

main77653-12070iAE92,CE90,EE90198705-198708

sub77653-12090

main77653-12090iAE92,CE90,EE90198708-199211

77654CUSHION, FUEL TANK, NO.2

main77652-16050iAE92,CE90,EE90198705-198708

sub77652-16060

main77652-16060iAE92,CE90,EE90198708-199211

77656ACUSHION, FUEL TANK, NO.4

main77654-12030iAE92,CE90,EE90198705-198708

sub77654-12060

main77654-12060iAE92,CE90,EE90198708-199211

8401

9010910108

main90109-10108

9011910252

main90119-10252

9015950217

main90159-50217

9015950258

main90159-50258

9017905020

main90179-05020

9017910074

main90179-10074

9018906013

main90189-06013

9046022002

main90460-22002

9046055003

main90460-55003

9046400385

main90464-00385

9046400479

main90464-00479

9048001385

main90480-01385

9048901387

main90489-01387

9161240612

main91612-40612

9165561040

main91655-61040

9331914010

main93319-14010

9338115010

main93381-15010

9611220240

main96112-20240

58 parts on this diagram · 6 diagrams in section
