MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUEISH GRAY M
DK BLUE MICA M,8J7
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
76866RETAINER, REAR SPOILER, NO.2
76872PROTECTOR, REAR SPOILER, NO.1
76885RETAINER, REAR SPOILER, NO.5
76901MUDGUARD SUB-ASSY, SIDE, RH
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
76902MUDGUARD SUB-ASSY, SIDE, LH
SUPER RED,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
76915FMUDGUARD, SIDE, FR RH
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
76916FMUDGUARD, SIDE, FR LH
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
BEIGE M,27E
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
9015960078
main90159-60078
9015960182
main90159-60182
9015960244
main90159-60244
9018906048
main90189-06048
9018906057
main90189-06057
9018906058
main90189-06058
9018906066
main90189-06066
9033902006
main90339-02006
9046706053
main90467-06053
9046709077
main90467-09077
9046710058
main90467-10058
9046710090
main90467-10090
9095001545
main90950-01545
9356054008
main93560-54008

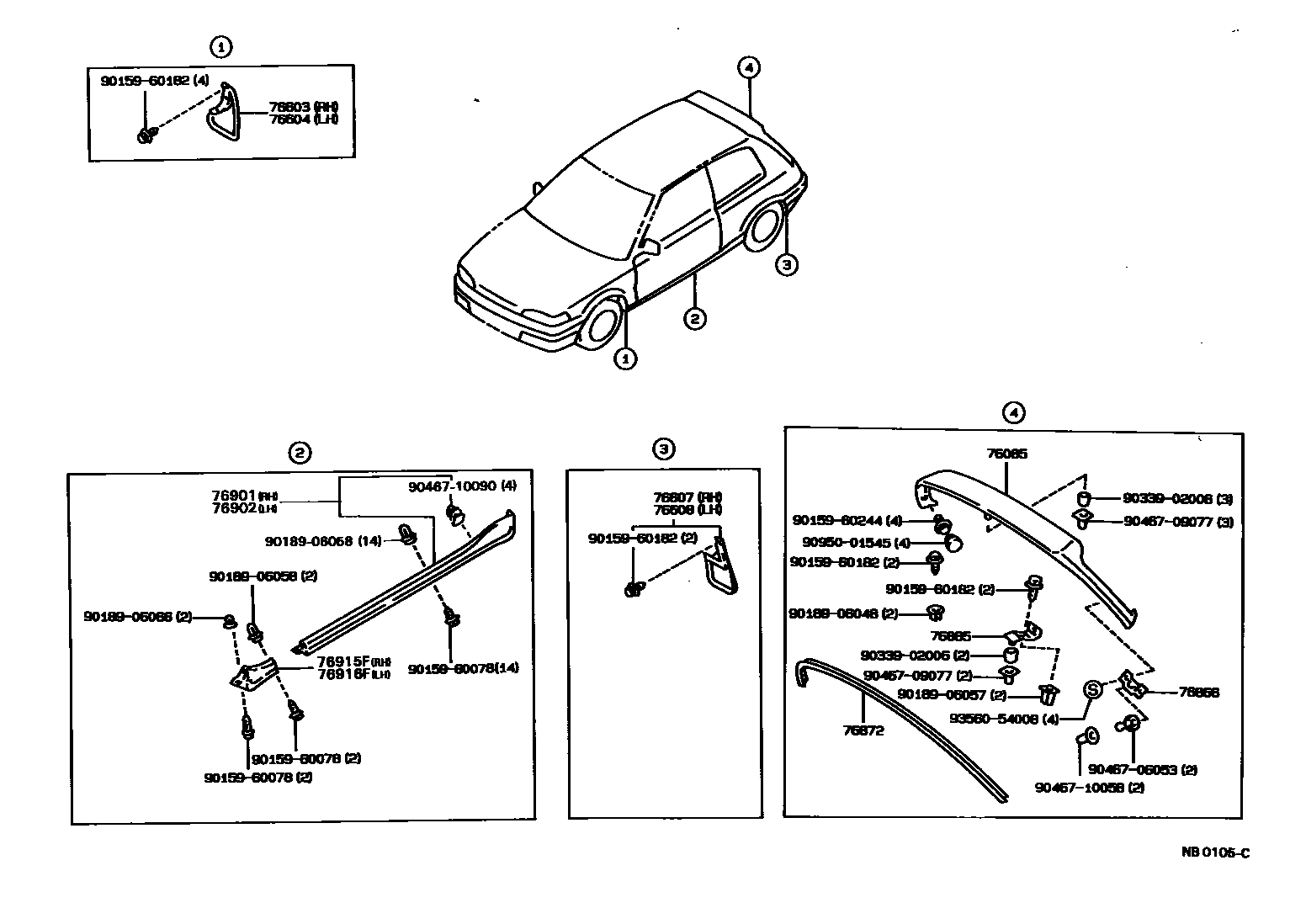

26 parts on this diagram · 1 diagram in section
