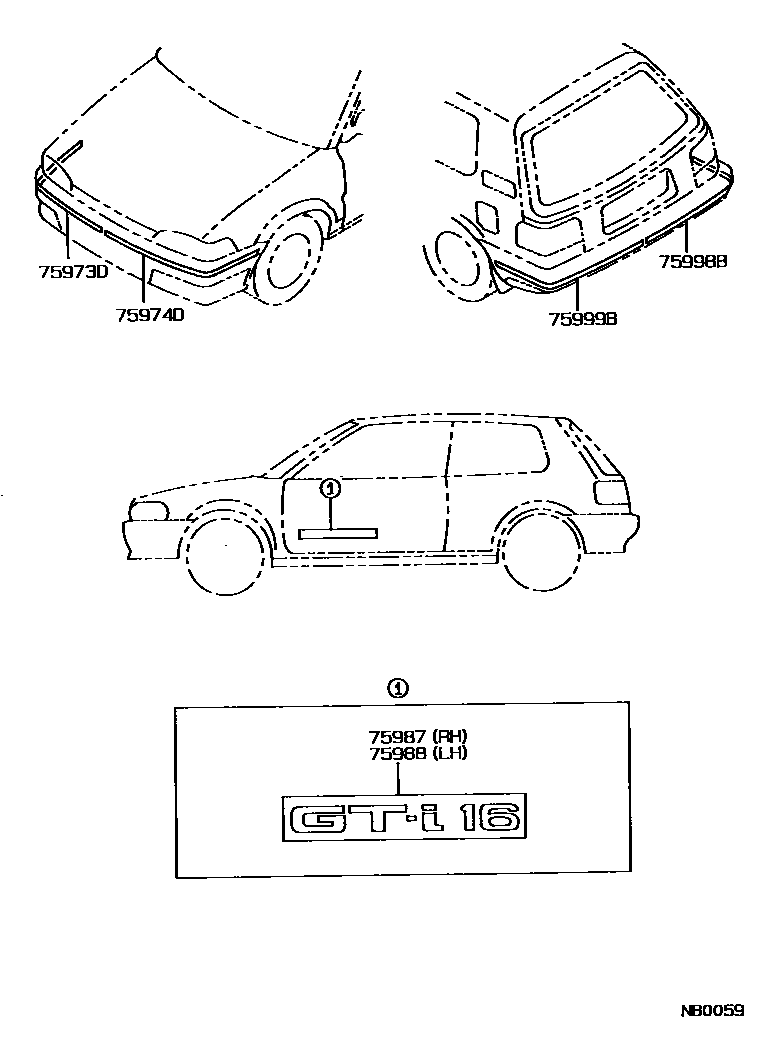

BODY STRIPE

75973DSTRIPE, FRONT BUMPER SIDE, RH

main75972-12020iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

SILVER

main75998-12080-02iAE92,CE90,EE90..GL,XL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

main75998-12080-02iAE92,CE90,EE90..GL,XL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

main75998-12080-02iAE92,CE90,EE90..GL,XL198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199106

RED,040 ,168 ,3E5 ,6K6 ,8E9

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199106-199108

RED,040 ,183 ,3E5 ,6K6 ,8E9

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199108-199211

RED,040 ,183 ,3E5 ,6K6 ,8J7

main75998-12080-02iAE92,EE90..LHD..3D..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

main75998-12080-03iAE92,CE90,EE90..GL,GTI,XL198705-198908

SILVER M,3E5

main75998-12080-04iAE92,CE90,EE90..GL,GTI,XL198705-198908

DARK BLUE,27E

main75998-12080-05iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

BEIGE M,040 ,205 ,6K6

75974DSTRIPE, FRONT BUMPER SIDE, LH

main75972-12020iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

SILVER

main75998-12080-02iAE92..5D;AE92..3D..XL;EE90..5D..GL;CE90,EE90..XL;EE90..RHD..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

main75998-12080-02iAE92,CE90,EE90..GL,XL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

main75998-12080-02iAE92,CE90,EE90..GL,XL198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199106

RED,040 ,168 ,3E5 ,6K6 ,8E9

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199106-199108

RED,040 ,183 ,3E5 ,6K6 ,8E9

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199108-199211

RED,040 ,183 ,3E5 ,6K6 ,8J7

main75998-12080-03iAE92,CE90,EE90..GL,GTI,XL198705-198908

SILVER M,3E5

main75998-12080-04iAE92,CE90,EE90..GL,GTI,XL198705-198908

DARK BLUE,27E

main75998-12080-05iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

BEIGE M,040 ,205 ,6K6

75987STRIPE, REAR DOOR, RH

main75987-12190-03iAE92..GTI199108-199211

GTI 16,BLACK M,8G2

main75987-12190-03iAE92..EFI198808-198908

GTI 16,BLACK M,040 ,164 ,27E ,3C7 ,8G2

main75987-12190-03iAE92..EFI198705-198808

GTI 16,BLACK M,040 ,164 ,27E ,3C7 ,8D8

main75987-12190-03iAE92..GTI198908-199108

GTI 16,BLACK M,164 ,8G2

main75987-12190-13iAE92..GTI198908-199106

GTI 16,SILVER,040 ,168 ,205 ,3E5 ,6K6 ,8E9

main75987-12190-13iAE92..GTI199106-199108

GTI 16,SILVER,040 ,183 ,205 ,3E5 ,6K6 ,8E9

main75987-12190-13iAE92..GTI199108-199211

GTI 16,SILVER,040 ,183 ,205 ,3E5 ,6K6 ,8J7

main75987-12190-13iAE92..EFI198705-198810

GTI 16,SILVER,168 ,204 ,3E5 ,6J7 ,8E3

main75987-12190-13iAE92..EFI198810-198908

GTI 16,SILVER,168 ,204 ,3E5 ,6J7 ,8B5 ,8E3

75988STRIPE, REAR DOOR, LH

main75987-12190-03iAE92..EFI198705-198808

GTI 16,BLACK M,040 ,164 ,27E ,3C7 ,8D8

main75987-12190-03iAE92..EFI198808-198908

GTI 16,BLACK M,040 ,164 ,27E ,3C7 ,8G2

main75987-12190-03iAE92..GTI198908-199108

GTI 16,BLACK M,164 ,8G2

main75987-12190-03iAE92..GTI199108-199211

GTI 16,BLACK M,8G2

main75987-12190-13iAE92..GTI199108-199211

GTI 16,SILVER,040 ,183 ,205 ,3E5 ,6K6 ,8J7

main75987-12190-13iAE92..GTI198908-199106

GTI 16,SILVER,040 ,168 ,205 ,3E5 ,6K6 ,8E9

main75987-12190-13iAE92..EFI198810-198908

GTI 16,SILVER,168 ,204 ,3E5 ,6J7 ,8B5 ,8E3

main75987-12190-13iAE92..GTI199106-199108

GTI 16,SILVER,040 ,183 ,205 ,3E5 ,6K6 ,8E9

main75987-12190-13iAE92..EFI198705-198810

GTI 16,SILVER,168 ,204 ,3E5 ,6J7 ,8E3

75998BSTRIPE, REAR BUMPER SIDE, RH

main75972-12020iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

SILVER

main75998-12080-02iAE92,CE90,EE90..GL,XL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

main75998-12080-02iAE92,CE90,EE90..GL,XL198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

main75998-12080-02iAE92,EE90..LHD..3D..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

main75998-12080-02iAE92,CE90,EE90..GL,XL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199106

RED,040 ,168 ,3E5 ,6K6 ,8E9

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199106-199108

RED,040 ,183 ,3E5 ,6K6 ,8E9

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199108-199211

RED,040 ,183 ,3E5 ,6K6 ,8J7

main75998-12080-03iAE92,CE90,EE90..GL,GTI,XL198705-198908

SILVER M,3E5

main75998-12080-04iAE92,CE90,EE90..GL,GTI,XL198705-198908

DARK BLUE,27E

main75998-12080-05iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

BEIGE M,040 ,205 ,6K6

75999BSTRIPE, REAR BUMPER SIDE, LH

main75972-12020iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

SILVER

main75998-12080-02iAE92,CE90,EE90..GL,XL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

main75998-12080-02iAE92,CE90,EE90..GL,XL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

main75998-12080-02iAE92,CE90,EE90..GL,XL198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

main75998-12080-02iAE92,EE90..LHD..3D..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199106

RED,040 ,168 ,3E5 ,6K6 ,8E9

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199106-199108

RED,040 ,183 ,3E5 ,6K6 ,8E9

main75998-12080-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199108-199211

RED,040 ,183 ,3E5 ,6K6 ,8J7

main75998-12080-03iAE92,CE90,EE90..GL,GTI,XL198705-198908

SILVER M,3E5

main75998-12080-04iAE92,CE90,EE90..GL,GTI,XL198705-198908

DARK BLUE,27E

main75998-12080-05iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

BEIGE M,040 ,205 ,6K6

6 parts on this diagram · 1 diagram in section
