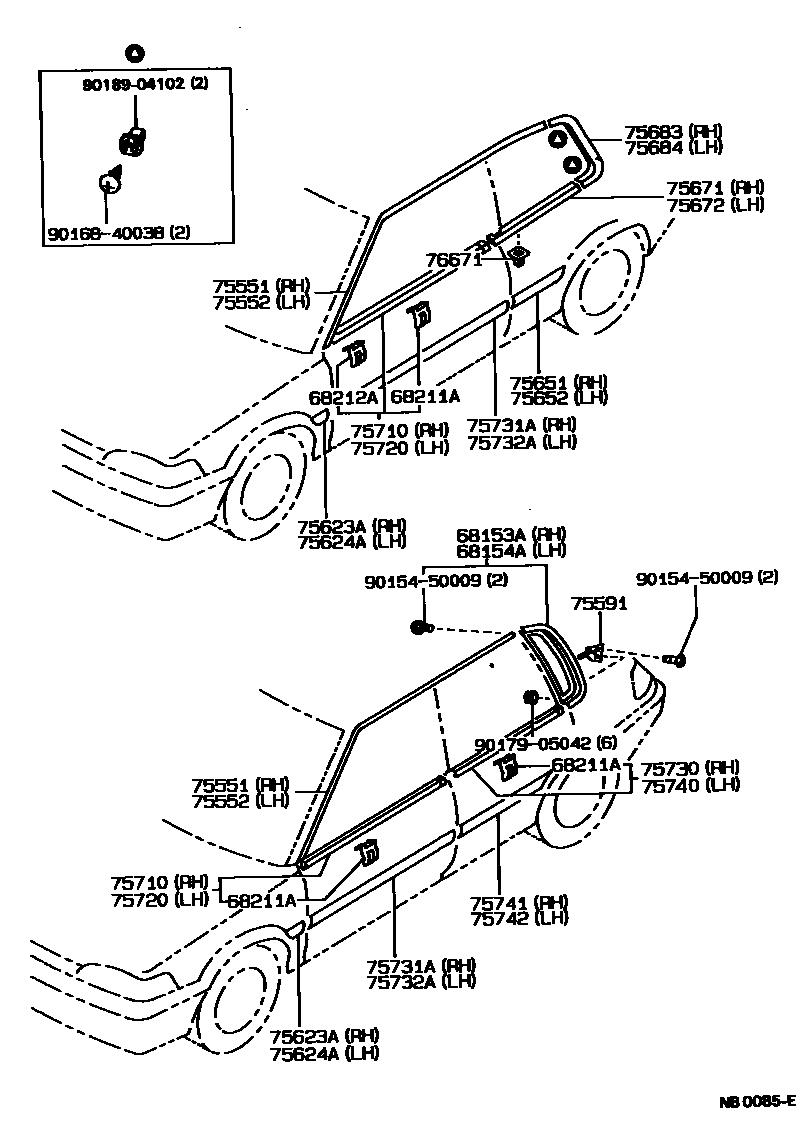

SIDE MOULDING

68153AMOULDING, QUARTER WINDOW NO.2 GLASS, RH

main68153-12060iAE92,CE90,EE90..5D198705-199206

68154AMOULDING, QUARTER WINDOW NO.2 GLASS, LH

main68154-12060iAE92,CE90,EE90..5D198705-199206

68211ACLIP, DOOR BELT MOULDING

main68211-12130iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

68212ACLIP, DOOR GLASS WEATHERSTRIP, OUTER

main68212-12010iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198705-199211

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-12410iAE92,CE90,EE90..3D198705-199211

main75551-12420iAE92,CE90,EE90..5D198705-199206

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-12410iAE92,CE90,EE90..3D198705-199211

main75552-12420iAE92,CE90,EE90..5D198705-199206

75591RETAINER, QUARTER GARNISH FRONT MOULDING, NO.1

main75591-12060iAE92,CE90,EE90..5D198705-199206

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-12460iEE90..3D..XL;EE90..3D..MTM..XLI;AE92,CE90..3D..(XL,XLI)198705-199206

main75623-12500-02iAE92,EE90..GL198808-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75623-12600

main75623-12500-02iAE92,EE90..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75623-12600

main75623-12500-02iAE92..EFI198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

sub75623-12600

main75623-12500-02iAE92..EFI198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8E3 ,8G2

sub75623-12600

main75623-12500-02iEE90..RHD..GL;AE92,EE90..5D..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75623-12600

main75623-12500-02iAE92..EFI198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8B5 ,8E3 ,8G2

sub75623-12600

main75623-12500-03iAE92,EE90..GL,GTI198705-198908

SILVER M,3E5

sub75623-12600

main75623-12500-03iAE92,CE90,EE90..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75623-12600

main75623-12510-02iAE92,CE90,EE90..XL198705-198908

SUPER RED 2,3E5

sub75623-12610

main75623-12510-03iAE92,CE90,EE90..GL,GTI,XL198705-198908

GRAY M,168

sub75623-12610

main75623-12510-05iAE92,CE90,EE90..GL,GTI,XL198705-198908

BEIGE M,27E

sub75623-12610

main75623-12510-08iAE92,CE90,EE90..GL,GTI,XL198705-198908

SUPER WHITE 2,040

sub75623-12610

main75623-12600-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199106

BLACK & W(RED TAPE),040 ,168 ,6K6 ,8E9

main75623-12600-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199108-199211

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8J7

main75623-12600-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199106-199108

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8E9

main75623-12600-03iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199108-199211

SILVER M,040 ,3E5 ,8J7

main75623-12600-03iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199108

SILVER M,040 ,3E5 ,8E9

main75623-12610-01iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199211

BLACK M,205

main75623-12610-02iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199211

SUPER RED 2,3E5

main75623-12610-03iAE92..GTI;AE92,CE90..5D;EE90..5D..EFI198908-199106

GRAY M,168

main75623-12610-04iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199108

DARK BLUE MICA M,8E9

main75623-12610-07iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199211

GRAYISH GREEN M,6K6

main75623-12610-08iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199211

SUPER WHITE 2,040

main75623-12610-B0iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI199106-199211

DK BLUEISH GRAY M,183

main75623-12610-J0iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI199108-199211

DK BLUE MICA M,8J7

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-12460iAE92,CE90,EE90..STD,XL198705-199206

main75624-12500-02iAE92..EFI198708-198808

RED,040 ,164 ,168 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75624-12600

main75624-12500-02iAE92..EFI198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

sub75624-12600

main75624-12500-02iAE92..EFI198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75624-12600

main75624-12500-02iAE92..EFI198708-198808

RED,040 ,164 ,168 ,3C7 ,6J7 ,8D8 ,8E3

sub75624-12600

main75624-12500-02iAE92..EFI198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8E3 ,8G2

sub75624-12600

main75624-12500-02iAE92..EFI198808-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75624-12600

main75624-12500-02iEE90..RHD..GL;AE92,EE90..5D..GL198810-198908

RED,040 ,164 ,168 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75624-12600

main75624-12500-02iAE92..EFI198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8B5 ,8E3 ,8G2

sub75624-12600

main75624-12500-02iAE92..EFI198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75624-12600

main75624-12500-03iAE92,CE90,EE90..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75624-12600

main75624-12500-03iAE92,EE90..GL,GTI198705-198908

SILVER M,3E5

sub75624-12600

main75624-12510-02iAE92,CE90,EE90..XL198705-198908

SUPER RED 2,3E5

sub75624-12610

main75624-12510-03iAE92,CE90,EE90..GL,GTI,XL198705-198908

GRAY M,168

sub75624-12610

main75624-12510-05iAE92,CE90,EE90..GL,GTI,XL198705-198908

BEIGE M,27E

sub75624-12610

main75624-12510-08iAE92,CE90,EE90..GL,GTI,XL198705-198908

SUPER WHITE 2,040

sub75624-12610

main75624-12600-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199106-199108

BLACK & W(RED TAPE),BLACK & W(RED TAPE),040 ,183 ,6K6 ,8E9

main75624-12600-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199106

BLACK & W(RED TAPE),040 ,168 ,6K6 ,8E9

main75624-12600-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199106-199108

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8E9

main75624-12600-02iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199108-199211

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8J7

main75624-12600-03iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199108

SILVER M,040 ,3E5 ,8E9

main75624-12600-03iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI199108-199211

SILVER M,040 ,3E5 ,8J7

main75624-12610-01iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199211

BLACK M,205

main75624-12610-02iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199211

SUPER RED 2,3E5

main75624-12610-03iAE92..GTI;AE92,CE90..5D;EE90..5D..EFI198908-199106

GRAY M,168

main75624-12610-04iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199108

DARK BLUE MICA M,8E9

main75624-12610-07iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199211

GRAYISH GREEN M,6K6

main75624-12610-08iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI198908-199211

SUPER WHITE 2,040

main75624-12610-B0iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI199106-199211

DK BLUEISH GRAY M,183

main75624-12610-J0iAE92..GTI;AE92,CE90..5D;EE90..5D..5F..EFI199108-199211

DK BLUE MICA M,8J7

75651MOULDING, QUARTER, OUTSIDE RH

main75651-12710iCE90,EE90..STD;EE90..3D..3FC..EFI198705-199205

main75651-12720-02iAE92..EFI198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75651-12860

main75651-12720-02iAE92,EE90..3D..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

sub75651-12860

main75651-12720-02iAE92..EFI198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8E3 ,8G2

sub75651-12860

main75651-12720-02iAE92..EFI198808-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75651-12860

main75651-12720-02iEE90..RHD..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75651-12860

main75651-12720-02iAE92..EFI198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8B5 ,8E3 ,8G2

sub75651-12860

main75651-12720-03iAE92,CE90,EE90..3D..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75651-12860

main75651-12720-03iAE92,EE90..3D..(GL,GTI)198705-198908

SILVER M,3E5

sub75651-12860

main75651-12730-02iAE92,CE90,EE90..3D..XL198705-198908

SUPER RED 2,3E5

sub75651-12870

main75651-12730-03iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

GRAY M,168

sub75651-12870

main75651-12730-05iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

BEIGE M,27E

sub75651-12870

main75651-12730-08iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

SUPER WHITE 2,040

sub75651-12870

main75651-12860-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199105-199106

RED,040 ,6K6 ,8E9

main75651-12860-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199108-199211

RED,040 ,183 ,6K6 ,8J7

main75651-12860-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198908-199105

RED,040 ,168 ,6K6 ,8E9

main75651-12860-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199106-199108

RED,040 ,183 ,6K6 ,8E9

main75651-12860-03iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198908-199108

SILVER M,040 ,3E5 ,8E9

main75651-12860-03iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199108-199211

SILVER M,040 ,3E5 ,8J7

main75651-12870-01iAE92..GTI198908-199211

BLACK M,205

main75651-12870-02iAE92..GTI198908-199211

SUPER RED 2,3E5

main75651-12870-03iAE92..GTI198908-199106

GRAY M,168

main75651-12870-04iAE92..GTI198908-199108

DARK BLUE MICA M,8E9

main75651-12870-07iAE92..GTI198908-199211

GRAYISH GREEN M,6K6

main75651-12870-08iAE92..GTI198908-199211

SUPER WHITE 2,040

main75651-12870-B0iAE92..GTI199106-199211

DK BLUEISH GRAY M,183

main75651-12870-J0iAE92..GTI199108-199211

DK BLUE MICA M,8J7

75652MOULDING, QUARTER, OUTSIDE LH

main75652-12710iEE90..3D..XL;EE90..3D..MTM..XLI;AE92,CE90..3D..(XL,XLI)198705-199205

main75652-12720-02iAE92,EE90..3D..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

sub75652-12860

main75652-12720-02iAE92..EFI198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8E3 ,8G2

sub75652-12860

main75652-12720-02iAE92..EFI198808-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75652-12860

main75652-12720-02iAE92..EFI198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8B5 ,8E3 ,8G2

sub75652-12860

main75652-12720-02iEE90..RHD..GL;AE92,CE90,EE90..3D..XL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75652-12860

main75652-12720-02iAE92..EFI198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75652-12860

main75652-12720-03iAE92,CE90,EE90..3D..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75652-12860

main75652-12720-03iAE92,EE90..3D..(GL,GTI)198705-198908

SILVER M,3E5

sub75652-12860

main75652-12730-02iAE92,EE90..3D..(GL,GTI)198705-198908

SUPER RED 2,3E5

sub75652-12870

main75652-12730-03iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

GRAY M,168

sub75652-12870

main75652-12730-05iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

BEIGE M,27E

sub75652-12870

main75652-12730-08iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

SUPER WHITE 2,040

sub75652-12870

main75652-12860-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199108-199211

RED,040 ,183 ,6K6 ,8J7

main75652-12860-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198908-199106

RED,040 ,168 ,6K6 ,8E9

main75652-12860-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199106-199108

RED,040 ,183 ,6K6 ,8E9

main75652-12860-03iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199108-199211

SILVER M,040 ,3E5 ,8J7

main75652-12860-03iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198908-199108

SILVER M,040 ,3E5 ,8E9

main75652-12870-01iAE92..GTI198908-199211

BLACK M,205

main75652-12870-02iAE92..GTI198908-199211

SUPER RED 2,3E5

main75652-12870-03iAE92..GTI198908-199106

GRAY M,168

main75652-12870-04iAE92..GTI198908-199108

DARK BLUE MICA M,8E9

main75652-12870-07iAE92..GTI198908-199211

GRAYISH GREEN M,6K6

main75652-12870-08iAE92..GTI198908-199211

SUPER WHITE 2,040

main75652-12870-B0iAE92..GTI199106-199211

DK BLUEISH GRAY M,183

main75652-12870-J0iAE92..GTI199108-199211

DARK BLUE MICA M,8J7

75671MOULDING, QUARTER BELT, RH

main75660-12210iAE92,CE90,EE90..3D198705-199211

75672MOULDING, QUARTER BELT, LH

main75670-12210iAE92,CE90,EE90..3D198705-199211

75683MOULDING, QUARTER BELT, REAR RH

main75683-12080iAE92,CE90,EE90..3D198705-199211

75684MOULDING, QUARTER BELT, REAR LH

main75684-12080iAE92,CE90,EE90..3D198705-199211

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12410iAE92,CE90,EE90..5D198705-199206

main75710-12430iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12410iAE92,CE90,EE90..5D198705-199206

main75720-12430iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-12130iAE92,CE90,EE90..5D198705-199206

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-12860iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

main75731-1A010iAE92,CE90,EE90..3D..(STD,XL)198705-199205

main75731-1A020-02iEE90..RHD..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75731-1A250

main75731-1A020-02iAE92,EE90..3D..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75731-1A250

main75731-1A020-02iAE92..EFI198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8E3 ,8G2

sub75731-1A250

main75731-1A020-02iAE92..EFI198808-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75731-1A250

main75731-1A020-02iAE92,EE90..3D..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

sub75731-1A250

main75731-1A020-02iAE92..EFI198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8B5 ,8E3 ,8G2

sub75731-1A250

main75731-1A020-03iAE92,CE90,EE90..3D..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75731-1A250

main75731-1A020-03iAE92,EE90..3D..(GL,GTI)198705-198908

SILVER M,3E5

sub75731-1A250

main75731-1A030-02iAE92,EE90..5D..GL198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75731-1A270

main75731-1A030-02iAE92,EE90..5D..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75731-1A270

main75731-1A030-02iAE92,EE90..5D..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75731-1A270

main75731-1A030-03iAE92,CE90,EE90..5D..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75731-1A270

main75731-1A030-03iAE92,EE90..5D..GL198705-198908

SILVER M,3E5

sub75731-1A270

main75731-1A040-02iAE92,EE90..3D..(GL,GTI)198705-198908

SUPER RED 2,3E5

sub75731-1A260

main75731-1A040-03iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

GRAY M,168

sub75731-1A260

main75731-1A040-05iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

BEIGE M,27E

sub75731-1A260

main75731-1A040-08iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

SUPER WHITE 2,040

sub75731-1A260

main75731-1A050-02iAE92,CE90,EE90..5D..XL198705-198908

SUPER RED 2,3E5

main75731-1A050-03iAE92,CE90,EE90..5D198705-198908

GRAY M,168

main75731-1A050-05iAE92,CE90,EE90..5D198705-198908

BEIGE M,27E

main75731-1A050-08iAE92,CE90,EE90..5D198705-198908

SUPER WHITE 2,040

main75731-1A250-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199108-199211

BLACK & W(RED TAPE),RED,040 ,183 ,6K6 ,8J7

main75731-1A250-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198908-199106

BLACK & W(RED TAPE),RED,040 ,168 ,6K6 ,8E9

main75731-1A250-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199106-199108

BLACK & W(RED TAPE),RED,040 ,183 ,6K6 ,8E9

main75731-1A250-03iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199108-199211

BLACK & W(SILVER TAPE),SILVER M,040 ,3E5 ,8J7

main75731-1A250-03iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198908-199108

BLACK & W(SILVER TAPE),SILVER M,040 ,3E5 ,8E9

main75731-1A260-01iAE92..GTI198908-199211

BLACK M,205

main75731-1A260-02iAE92..GTI198908-199211

SUPER RED 2,3E5

main75731-1A260-03iAE92..GTI198908-199106

GRAY M,168

main75731-1A260-04iAE92..GTI198908-199108

DARK BLUE MICA M,8E9

main75731-1A260-07iAE92..GTI198908-199211

GRAYISH GREEN M,6K6

main75731-1A260-08iAE92..GTI198908-199211

SUPER WHITE 2,040

main75731-1A260-B0iAE92..GTI199106-199211

DK BLUEISH GRAY M,183

main75731-1A260-J0iAE92..GTI199108-199211

DK BLUE MICA M,8J7

main75731-1A270-02iAE92,CE90,EE90..5D198908-199106

BLACK & W(RED TAPE),040 ,168 ,6K6 ,8E9

main75731-1A270-02iAE92,CE90,EE90..5D199106-199108

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8E9

main75731-1A270-02iAE92,CE90,EE90..5D199108-199206

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8J7

main75731-1A270-03iAE92,CE90,EE90..5D199108-199206

SILVER M,040 ,3E5 ,8J7

main75731-1A270-03iAE92,CE90,EE90..5D198908-199108

SILVER M,040 ,3E5 ,8E9

main75731-1A280-01iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

BLACK M,205

main75731-1A280-02iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

SUPER RED 2,3E5

main75731-1A280-03iAE92,CE90..5D;EE90..5D..EFI198908-199106

GRAY M,168

main75731-1A280-04iAE92,CE90..5D;EE90..5D..5F..EFI198908-199108

DARK BLUE MICA M,8E9

main75731-1A280-07iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

GRAYISH GREEN M,6K6

main75731-1A280-08iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

SUPER WHITE 2,040

main75731-1A280-B0iAE92,CE90..5D;EE90..5D..5F..EFI199106-199206

DK BLUEISH GRAY M,183

main75731-1A280-J0iAE92,CE90..5D;EE90..5D..5F..EFI199108-199206

DK BLUE MICA M,8J7

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-12700iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

main75732-12740iEE90..3D..XL;EE90..3D..MTM..XLI;AE92,CE90..3D..(XL,XLI)198705-199205

main75732-12750-02iAE92,EE90..3D..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

sub75732-1A090

main75732-12750-02iAE92..EFI198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75732-1A090

main75732-12750-02iAE92..EFI198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8E3 ,8G2

sub75732-1A090

main75732-12750-02iAE92..EFI198808-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75732-1A090

main75732-12750-02iEE90..RHD..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75732-1A090

main75732-12750-02iAE92..EFI198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8B5 ,8E3 ,8G2

sub75732-1A090

main75732-12750-03iAE92,EE90..3D..(GL,GTI)198705-198908

SILVER M,3E5

sub75732-1A090

main75732-12750-03iAE92,CE90,EE90..3D..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75732-1A090

main75732-12760-02iAE92,EE90..5D..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75732-1A110

main75732-12760-02iAE92,CE90,EE90..5D198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75732-1A110

main75732-12760-02iAE92,EE90..5D..GL198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75732-1A110

main75732-12760-03iAE92,CE90,EE90..5D..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75732-1A110

main75732-12760-03iAE92,EE90..5D..GL198705-198908

SILVER M,3E5

sub75732-1A110

main75732-12770-02iAE92,EE90..3D..(GL,GTI)198705-198908

SUPER RED 2,3E5

sub75732-1A100

main75732-12770-03iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

GRAY M,168

sub75732-1A100

main75732-12770-05iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

BEIGE M,27E

sub75732-1A100

main75732-12770-08iAE92,CE90,EE90..3D..(GL,GTI,XL)198705-198908

SUPER WHITE 2,040

sub75732-1A100

main75732-12780-02iAE92,EE90..5D..GL198705-198908

SUPER RED 2,3E5

main75732-12780-03iAE92,CE90,EE90..5D198705-198908

GRAY M,168

main75732-12780-05iAE92,CE90,EE90..5D198705-198908

BEIGE M,27E

main75732-12780-08iAE92,CE90,EE90..5D198705-198908

SUPER WHITE 2,040

main75732-1A090-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199108-199211

RED,040 ,183 ,6K6 ,8J7

main75732-1A090-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198908-199106

RED,040 ,168 ,6K6 ,8E9

main75732-1A090-02iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199106-199108

RED,040 ,183 ,6K6 ,8E9

main75732-1A090-03iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)199108-199211

SILVER M,040 ,3E5 ,8J7

main75732-1A090-03iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198908-199108

SILVER M,040 ,3E5 ,8E9

main75732-1A100-01iAE92..GTI198908-199211

BLACK M,205

main75732-1A100-02iAE92..GTI198908-199211

SUPER RED 2,3E5

main75732-1A100-03iAE92..GTI198908-199106

GRAY M,168

main75732-1A100-04iAE92..GTI198908-199108

DARK BLUE MICA M,8E9

main75732-1A100-07iAE92..GTI198908-199211

GRAYISH GREEN M,6K6

main75732-1A100-08iAE92..GTI198908-199211

SUPER WHITE 2,040

main75732-1A100-B0iAE92..GTI199106-199211

DK BLUEISH GRAY M,183

main75732-1A100-J0iAE92..GTI199108-199211

DK BLUE MICA M,8J7

main75732-1A110-02iAE92,CE90,EE90..5D198908-199106

BLACK & W(RED TAPE),040 ,168 ,6K6 ,8E9

main75732-1A110-02iAE92,CE90,EE90..5D199106-199108

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8E9

main75732-1A110-02iAE92,CE90,EE90..5D199108-199206

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8J7

main75732-1A110-03iAE92,CE90,EE90..5D199108-199206

SILVER M,040 ,3E5 ,8J7

main75732-1A110-03iAE92,CE90,EE90..5D198908-199108

SILVER M,040 ,3E5 ,8E9

main75732-1A120-01iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

BLACK M,205

main75732-1A120-02iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

SUPER RED 2,3E5

main75732-1A120-03iAE92,CE90..5D;EE90..5D..EFI198908-199106

GRAY M,168

main75732-1A120-04iAE92,CE90..5D;EE90..5D..5F..EFI198908-199108

DARK BLUE MICA M,8E9

main75732-1A120-07iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

GRAYISH GREEN M,6K6

main75732-1A120-08iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

SUPER WHITE 2,040

main75732-1A120-B0iAE92,CE90..5D;EE90..5D..5F..EFI199106-199206

DK BLUEISH GRAY M,183

main75732-1A120-J0iAE92,CE90..5D;EE90..5D..5F..EFI199108-199206

DK BLUE MICA M,8J7

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-12220iAE92,CE90,EE90..5D198705-199206

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-12630iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

main75741-12670-02iAE92,CE90,EE90..5D198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75741-12800

main75741-12670-02iAE92,EE90..5D..GL198705-198708

RED,040 ,164 ,168 ,204 ,3C7 ,6J7 ,8D8 ,8E3

sub75741-12800

main75741-12670-02iAE92,EE90..5D..GL198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75741-12800

main75741-12670-02iAE92,EE90..5D..GL198708-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75741-12800

main75741-12670-03iAE92,CE90,EE90..5D..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75741-12800

main75741-12670-03iAE92,EE90..5D..GL198705-198908

SILVER M,3E5

sub75741-12800

main75741-12680-02iAE92,CE90,EE90..5D198705-198908

SUPER RED 2,3E5

main75741-12680-03iAE92,CE90,EE90..5D198705-198908

GRAY M,168

main75741-12680-05iAE92,CE90,EE90..5D198705-198908

BEIGE M,27E

main75741-12680-08iAE92,CE90,EE90..5D198705-198908

SUPER WHITE 2,040

main75741-12800-02iAE92,CE90,EE90..5D199108-199206

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8J7

main75741-12800-02iAE92,CE90,EE90..5D199106-199108

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8E9

main75741-12800-02iAE92,CE90,EE90..5D198908-199106

BLACK & W(RED TAPE),040 ,168 ,6K6 ,8E9

main75741-12800-03iAE92,CE90,EE90..5D198908-199108

SILVER M,040 ,3E5 ,8E9

main75741-12800-03iAE92,CE90,EE90..5D199108-199206

SILVER M,040 ,3E5 ,8J7

main75741-12810-01iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

BLACK M,205

main75741-12810-02iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

SUPER RED 2,3E5

main75741-12810-03iAE92,CE90..5D;EE90..5D..EFI198908-199106

GRAY M,168

main75741-12810-04iAE92,CE90..5D;EE90..5D..5F..EFI198908-199108

DARK BLUE MICA M,8E9

main75741-12810-07iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

GRAYISH GREEN M,6K6

main75741-12810-08iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

SUPER WHITE 2,040

main75741-12810-B0iAE92,CE90..5D;EE90..5D..5F..EFI199106-199206

DK BLUEISH GRAY M,183

main75741-12810-J0iAE92,CE90..5D;EE90..5D..5F..EFI199108-199206

DK BLUE MICA M,8J7

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-12610iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

main75742-12650-02iAE92,EE90..5D..GL198810-198908

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8B5 ,8E3 ,8G2

sub75742-12790

main75742-12650-02iAE92,EE90..5D..GL198705-198808

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8D8 ,8E3

sub75742-12790

main75742-12650-02iAE92,EE90..5D..GL198808-198810

RED,040 ,164 ,168 ,204 ,3C7 ,4H6 ,6J7 ,8E3 ,8G2

sub75742-12790

main75742-12650-03iAE92,EE90..5D..GL198705-198908

SILVER M,3E5

sub75742-12790

main75742-12650-03iAE92,CE90,EE90..5D..XL198812-198908

BLACK MOULDING W/TAPE,SILVER M,3E5

sub75742-12790

main75742-12660-02iAE92,EE90..5D..GL198705-198908

SUPER RED 2,3E5

main75742-12660-03iAE92,CE90,EE90..5D198705-198908

GRAY M,168

main75742-12660-05iAE92,CE90,EE90..5D198705-198908

BEIGE M,27E

main75742-12660-08iAE92,CE90,EE90..5D198705-198908

SUPER WHITE 2,040

main75742-12790-02iAE92,CE90,EE90..5D199106-199108

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8E9

main75742-12790-02iAE92,CE90,EE90..5D198908-199106

BLACK & W(RED TAPE),040 ,168 ,6K6 ,8E9

main75742-12790-02iAE92,CE90,EE90..5D199108-199206

BLACK & W(RED TAPE),040 ,183 ,6K6 ,8J7

main75742-12790-03iAE92,CE90,EE90..5D198908-199108

SILVER M,040 ,3E5 ,8E9

main75742-12790-03iAE92,CE90,EE90..5D199108-199206

SILVER M,040 ,3E5 ,8J7

main75742-12800-01iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

BLACK M,205

main75742-12800-02iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

SUPER RED 2,3E5

main75742-12800-03iAE92,CE90..5D;EE90..5D..EFI198908-199106

GRAY M,168

main75742-12800-04iAE92,CE90..5D;EE90..5D..5F..EFI198908-199108

DARK BLUE MICA M,8E9

main75742-12800-07iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

GRAYISH GREEN M,6K6

main75742-12800-08iAE92,CE90..5D;EE90..5D..5F..EFI198908-199206

SUPER WHITE 2,040

main75742-12800-B0iAE92,CE90..5D;EE90..5D..5F..EFI199106-199206

DK BLUEISH GRAY M,183

main75742-12800-J0iAE92,CE90..5D;EE90..5D..5F..EFI199108-199206

DK BLUE MICA M,8J7

76671CLIP, QUARTER BELT MOULDING, NO.1

main76671-12010iAE92,CE90,EE90..3D198908-199211

9015450009

main90154-50009

9016840038

main90168-40038

9017905042

main90179-05042

9018904102

main90189-04102

28 parts on this diagram · 1 diagram in section
