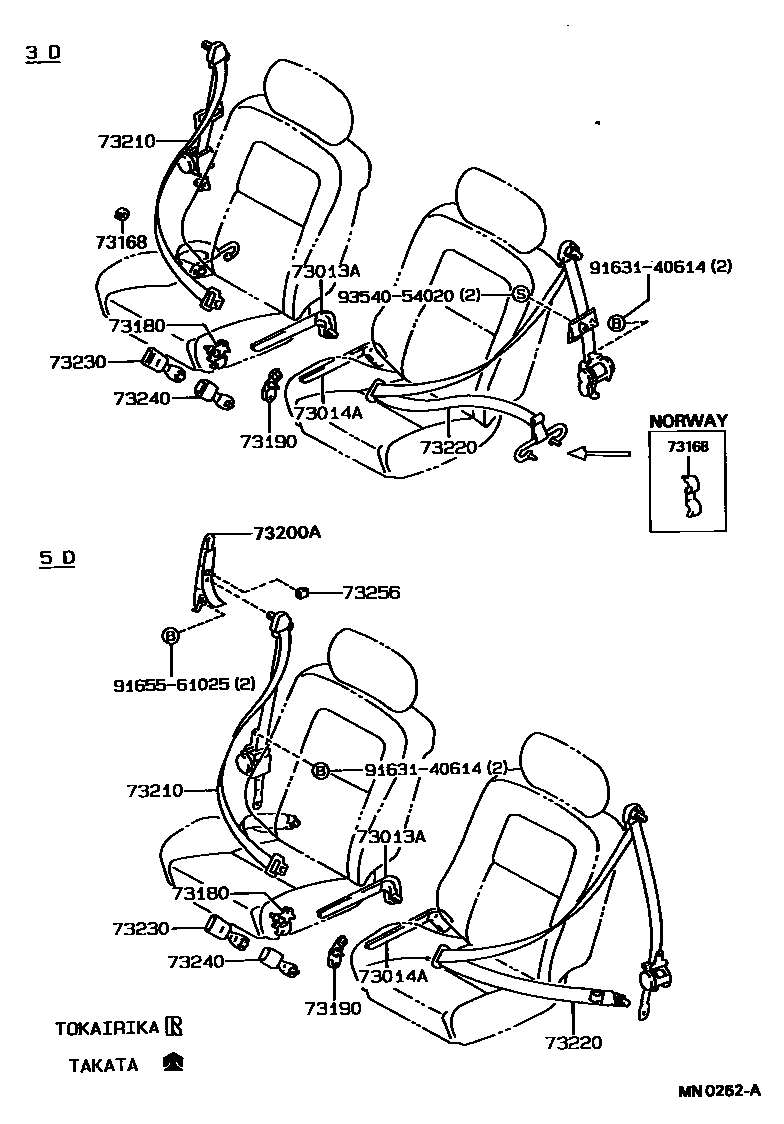

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-12030-03iAE92,CE90,EE90198705-198804

SHADOW GRAY,TRIM1#

sub73013-12031

main73013-12030-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198804

DARK BLUE,TRIM8#

sub73013-12031

main73013-12030-05iAE92,CE90,EE90..CBR,DSL198705-198804

DARK BEIGE,TRIM4#

sub73013-12031

main73013-12031-03iAE92,CE90,EE90198806-199211

SHADOW GRAY,TRIM1#

sub73013-12031

main73013-12031-04iAE92,CE90,EE90..LHD..(GL,XL)198806-199206

DARK BLUE,TRIM8#

sub73013-12031

main73013-12031-05iAE92,CE90,EE90..CBR,DSL198806-198908

DARK BEIGE,TRIM4#

sub73013-12031

main73013-12031-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub73013-12031

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-12030-03iAE92,CE90,EE90198705-198804

SHADOW GRAY,TRIM1#

sub73014-12031

main73014-12030-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198804

DARK BLUE,TRIM8#

sub73014-12031

main73014-12030-05iAE92,CE90,EE90..CBR,DSL198705-198804

DARK BEIGE,TRIM4#

sub73014-12031

main73014-12031-03iAE92,CE90,EE90198806-199211

SHAODW GRAY,TRIM1#

sub73014-12031

main73014-12031-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198806-199206

DARK BLUE,TRIM8#

sub73014-12031

main73014-12031-05iAE92,CE90,EE90..CBR,DSL198806-198908

DARK BEIGE,TRIM4#

sub73014-12031

main73014-12031-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub73014-12031

73168STOPPER FRONT SEAT BELT LAP ANCHOR

main73168-10010iAE92,CE90,EE90..LHD..3D..MTM..(DSL,EFI)198908-199211

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-12030iAE92,CE90,EE90198705-199211

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-12030iAE92,CE90,EE90198705-199211

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12011-03iAE92,CE90,EE90..5D198705-198908

SHADOW GRAY,TRIM1#

sub73200-12011

main73200-12011-04iAE92,CE90,EE90..LHD..5D198705-198908

DARK BLUE,TRIM8#

sub73200-12011

main73200-12011-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub73200-12011

main73200-12012-03iAE92,CE90,EE90..5D198908-199206

SHADOW GRAY,TRIM1#

sub73200-12012

main73200-12012-04iAE92,CE90,EE90..5D198908-199206

DARK BLUE,TRIM8#

sub73200-12012

main73200-12012-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub73200-12012

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12680-03iAE92,CE90,EE90..5D198705-198708

SHADOW GRAY,TRIM1#

sub73210-12681

main73210-12680-05iAE92,CE90,EE90..5D198705-198708

DARK BEIGE,TRIM4#

sub73210-12681

main73210-12681-03iAE92,CE90,EE90..5D198708-198908

SHADOW GRAY,TRIM1#

sub73210-12682

main73210-12681-04iAE92,CE90,EE90..LHD..5D198708-198908

DARK BLUE,TRIM8#

sub73210-12682

main73210-12681-05iAE92,CE90,EE90..5D198708-198908

DARK BEIGE,TRIM4#

sub73210-12682

main73210-12682-03iAE92,CE90,EE90..5D198908-199104

SHADOW GRAY,TRIM1#

sub73210-12682

main73210-12682-04iAE92,CE90,EE90..5D198908-199104

DARK BLUE,TRIM8#

sub73210-12682

main73210-12682-06iAE92,CE90,EE90..LHD..5D198908-199104

BROWN,TRIM4#

sub73210-12682

main73210-12683-03iAE92,CE90,EE90..5D199104-199206

SHADOW GRAY,TRIM1#

sub73210-12684

main73210-12683-04iAE92,CE90,EE90..5D199104-199206

DARK BLUE,TRIM8#

sub73210-12684

main73210-12683-06iAE92,CE90,EE90..LHD..5D199104-199206

BROWN,TRIM4#

sub73210-12684

main73210-12700-03iAE92,CE90,EE90..3D198705-198908

SHADOW GRAY,TRIM1#

sub73210-12701

main73210-12700-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-198908

DARK BLUE,TRIM8#

sub73210-12701

main73210-12700-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub73210-12701

main73210-12701-03iAE92,CE90,EE90..3D198908-199104

SHADOW GRAY,TRIM1#

sub73210-12701

main73210-12701-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198908-199104

DARK BLUE,TRIM8#

sub73210-12701

main73210-12701-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199104

BROWN,TRIM4#

sub73210-12701

main73210-12702-03iAE92,CE90,EE90..3D199104-199211

SHADOW GRAY,TRIM1#

sub73210-12702

main73210-12702-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)199104-199205

DARK BLUE,TRIM8#

sub73210-12702

main73210-12702-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)199104-199205

BROWN,TRIM4#

sub73210-12702

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12590-03iAE92,CE90,EE90..5D198705-198708

SHADOW GRAY,TRIM1#

sub73220-12591

main73220-12590-05iAE92,CE90,EE90..5D198705-198708

DARK BEIGE,TRIM4#

sub73220-12591

main73220-12591-03iAE92,CE90,EE90..5D198708-198908

SHADOW GRAY,TRIM1#

sub73220-12592

main73220-12591-04iAE92,CE90,EE90..LHD..5D198708-198908

DARK BLUE,TRIM8#

sub73220-12592

main73220-12591-05iAE92,CE90,EE90..5D198708-198908

DARK BEIGE,TRIM4#

sub73220-12592

main73220-12592-03iAE92,CE90,EE90..5D198908-199101

SHADOW GRAY,TRIM1#

sub73220-12592

main73220-12592-04iAE92,CE90,EE90..5D198908-199104

DARK BLUE,TRIM8#

sub73220-12592

main73220-12592-06iAE92,CE90,EE90..LHD..5D198908-199104

BROWN,TRIM4#

sub73220-12592

main73220-12593-03iAE92,CE90,EE90..5D199104-199206

SHADOW GRAY,TRIM1#

sub73220-12594

main73220-12593-04iAE92,CE90,EE90..5D199104-199206

DARK BLUE,TRIM8#

sub73220-12594

main73220-12593-06iAE92,CE90,EE90..LHD..5D199104-199206

BROWN,TRIM4#

sub73220-12594

main73220-12610-03iAE92,CE90,EE90..3D198705-198908

SHADOW GRAY,TRIM1#

sub73220-12611

main73220-12610-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-198908

DARK BLUE,TRIM8#

sub73220-12611

main73220-12610-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub73220-12611

main73220-12611-03iAE92,CE90,EE90..3D198908-199104

SHADOW GRAY,TRIM1#

sub73220-12611

main73220-12611-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198908-199104

DARK BLUE,TRIM8#

sub73220-12611

main73220-12611-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199104

BROWN,TRIM4#

sub73220-12611

main73220-12612-03iAE92,CE90,EE90..3D199104-199211

SHADOW GRAY,TRIM1#

sub73220-12612

main73220-12612-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)199104-199205

DARK BLUE,TRIM8#

sub73220-12612

main73220-12612-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)199104-199205

BROWN,TRIM4#

sub73220-12612

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12320-03iAE92,CE90,EE90198705-199104

SHADOW GRAY,TRIM1#

sub73230-12320

main73230-12320-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-199104

DARK BLUE,TRIM8#

sub73230-12320

main73230-12320-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub73230-12320

main73230-12320-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199104

BROWN,TRIM4#

sub73230-12320

main73230-12321-03iAE92,CE90,EE90199104-199211

SHADOW GRAY,TRIM1#

sub73230-12322

main73230-12321-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI199104-199206

DARK BLUE,TRIM8#

sub73230-12322

main73230-12321-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)199104-199206

BROWN,TRIM4#

sub73230-12322

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12320-03iAE92,CE90,EE90198705-199104

SHADOW GRAY,TRIM1#

sub73230-12320

main73230-12320-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199104

DARK BLUE,TRIM8#

sub73230-12320

main73230-12320-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub73230-12320

main73230-12320-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199104

BROWN,TRIM4#

sub73230-12320

main73230-12321-03iAE92,CE90,EE90199104-199211

SHADOW GRAY,TRIM1#

sub73230-12322

main73230-12321-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI199104-199206

DARK BLUE,TRIM8#

sub73230-12322

main73230-12321-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)199104-199206

BROWN,TRIM4#

sub73230-12322

73256KNOB, SHOULDER BELT ANCHOR ADJUST

main73256-12010-03iAE92,CE90,EE90..5D198705-199206

SHADOW GRAY,TRIM1#

sub73256-12010

main73256-12010-04iAE92,CE90,EE90..LHD..5D198705-199206

DARK BLUE,TRIM8#

sub73256-12010

main73256-12010-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub73256-12010

main73256-12010-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub73256-12010

9163140614

main91631-40614

9165561025

main91655-61025

9354054020

main93540-54020

14 parts on this diagram · 2 diagrams in section
