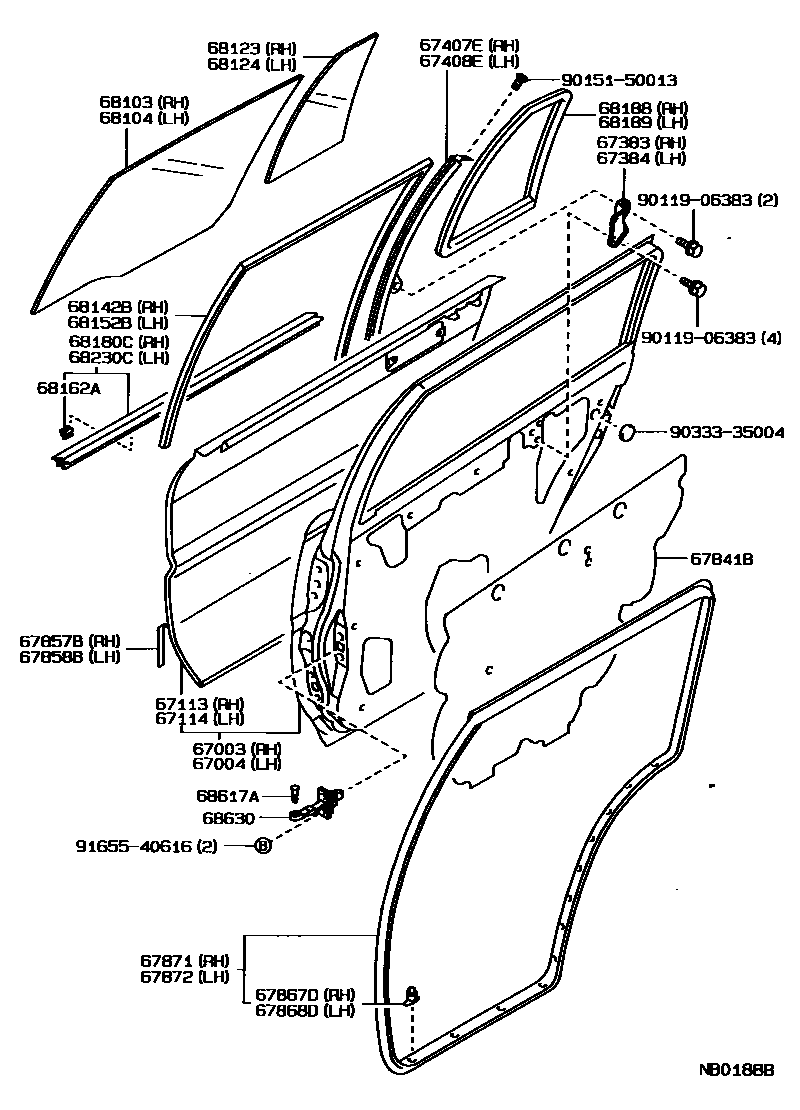

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12600iAE92,CE90,EE90..5D¥52,800198705-199206

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12600iAE92,CE90,EE90..5D¥52,800198705-199206

67113PANEL, REAR DOOR, OUTER RH

main67113-12140iAE92,CE90,EE90..5D¥21,200198705-199206

67114PANEL, REAR DOOR, OUTER LH

main67114-12140iAE92,CE90,EE90..5D¥21,200198705-199206

67383BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH

main67383-12030iAE92,CE90,EE90..5D¥550198705-199206

67384BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH

main67384-12030iAE92,CE90,EE90..5D¥550198705-199206

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12160iAE92,CE90,EE90..5D¥3,520198705-199206

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12160iAE92,CE90,EE90..5D¥3,520198705-199206

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-12220iAE92,CE90,EE90..5D¥640198705-199206

sub67841-12210¥790

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-12010iAE92,CE90,EE90..5D¥390198710-198808

main67857-12020iAE92,CE90,EE90..5D¥470198808-199206

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-12010iAE92,CE90,EE90..5D¥390198710-198808

main67858-12020iAE92,CE90,EE90..5D¥470198808-199206

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12120iAE92,CE90,EE90..5D¥170198708-199206

main67868-12050iAE92,CE90,EE90..5D¥210198705-198708

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12030iAE92,CE90,EE90..5D¥210198705-198708

sub67868-12050¥210

main67868-12070iAE92,CE90,EE90..5D¥170198708-199206

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12320iAE92,CE90,EE90..5D¥8,700198705-198905

sub67871-12321¥6,800

main67871-12321iAE92,CE90,EE90..5D¥6,800198905-199206

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12320iAE92,CE90,EE90..5D¥8,700198705-198905

sub67872-12321¥6,800

main67872-12321iAE92,CE90,EE90..5D¥6,800198905-199206

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12210iEE90..5D..GL¥21,500199011-199206

*TT,T=3.5,GRAY

sub68113-12280¥20,100

main68113-12260iAE92,CE90,EE90..5D¥16,600198705-199206

*TEM,T=3.5

main68113-12270iAE92,CE90,EE90..5D¥16,800198705-199206

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12210iEE90..5D..GL¥21,500199011-199206

*TT,T=3.5,GRAY

sub68114-12280¥20,100

main68114-12260iAE92,CE90,EE90..5D¥16,600198705-199206

*TEM,T=3.5

main68114-12270iAE92,CE90,EE90..5D¥16,800198705-199206

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-12410iEE90..5D..GL¥6,600199011-199206

*TT,T=3.5,GRAY

sub68123-12470¥6,000

main68123-12450iAE92,CE90,EE90..5D¥4,790198705-199206

*TEM,T=3.5

sub68123-12460¥4,950

main68123-12460iAE92,CE90,EE90..5D¥4,950198705-199206

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-12410iEE90..5D..GL¥6,600199011-199206

*TT,T=3.5,GRAY

sub68124-12470¥6,000

main68124-12450iAE92,CE90,EE90..5D¥4,800198705-199206

*TEM,T=3.5

sub68124-12460¥4,950

main68124-12460iAE92,CE90,EE90..5D¥4,950198705-199206

*TT,T=3.5

68142BRUN, REAR DOOR WINDOW, RH

main68142-12140iAE92,CE90,EE90..5D¥3,010198705-199206

68152BRUN, REAR DOOR WINDOW, LH

main68152-12060iAE92,CE90,EE90..5D¥3,010198705-199206

68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-12160iAE92,CE90,EE90..5D..(XL,XLI)¥160198705-199206

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-12090iAE92,CE90,EE90..5D..(XL,XLI)¥2,260198705-199206

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12220iAE92,CE90,EE90..5D¥1,780198705-199206

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12230iAE92,CE90,EE90..5D¥1,780198705-199206

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-12060iAE92,CE90,EE90..5D..(XL,XLI)¥2,260198705-199206

68617APIN, REAR DOOR CHECK

main68617-12030iAE92,CE90,EE90..5D¥260198809-199206

main68617-22020iAE92,CE90,EE90..5D¥300198705-198809

68630CHECK ASSY, REAR DOOR

main68630-12040iAE92,CE90,EE90..5D¥3,700198705-199206

9011906383

main90119-06383¥120

9015150013

main90151-50013¥120

9033335004

main90333-35004¥70

9165540616

main91655-40616¥120

32 parts on this diagram · 2 diagrams in section
