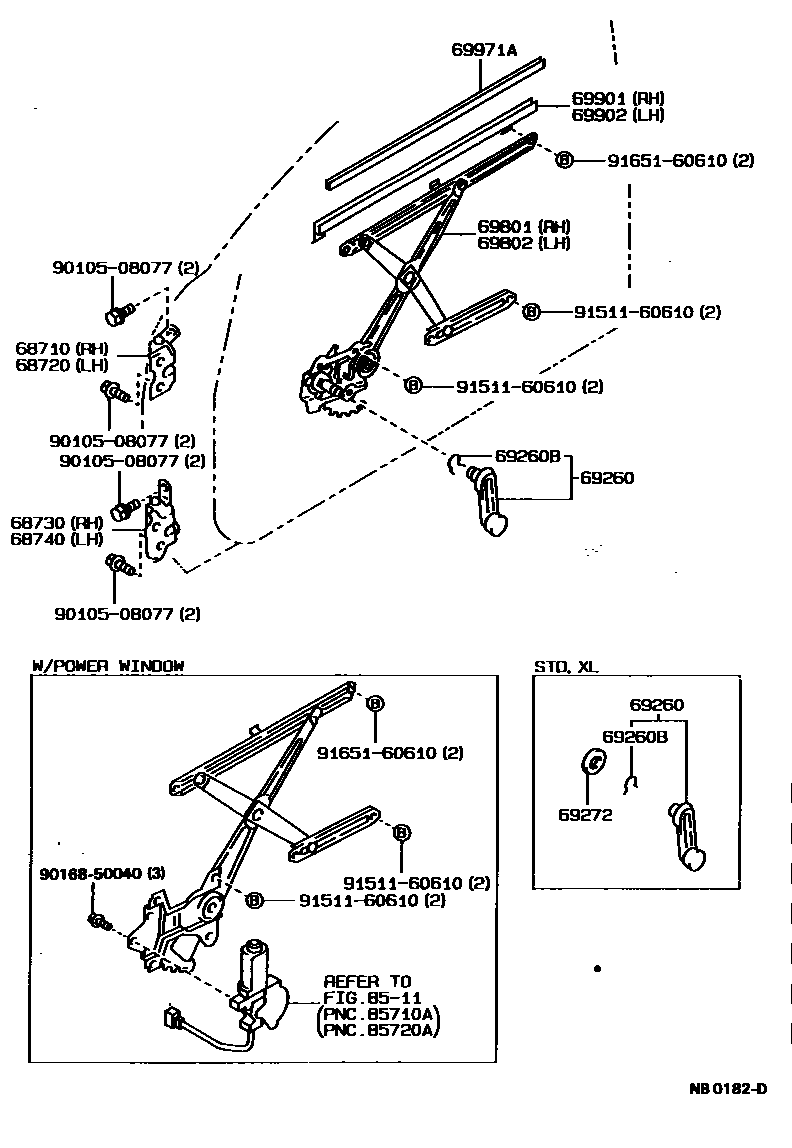

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12100iAE92,CE90,EE90..5D¥2,980198705-199206

sub68710-12110¥2,990

main68710-12110iAE92,CE90,EE90..3D¥2,990198705-199211

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12100iAE92,CE90,EE90..5D¥2,980198705-199206

sub68720-12110¥2,990

main68720-12110iAE92,CE90,EE90..3D¥2,990198705-199211

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12060iAE92,CE90,EE90..5D¥2,990198705-199206

main68730-12070iAE92,CE90,EE90..3D¥2,980198705-199211

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12060iAE92,CE90,EE90..5D¥2,990198705-199206

main68740-12070iAE92,CE90,EE90..3D¥2,980198705-199211

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12070-13iEE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL,XLI)198705-199011

GRAY,TRIM1#

sub69260-14030¥1,610

main69260-12070-15iEE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub69260-14030¥1,610

main69260-12070-34iAE92,CE90..LHD..3D..XL;EE90..LHD..3D..(GL,XL)198705-199011

BLUE,TRIM8#

sub69260-14030¥1,610

main69260-12090-03iAE92..3D..XL198812-198908

S PACKAGE,SHADOW GRAY,TRIM1#

sub69260-12090¥1,610

main69260-12090-03iEE90..5D;EE90..RHD..GL;AE92..GL,GLI,GTI,SR5;AE92,CE90..5D..(XL,XLI)198705-199211

SHADOW GRAY,TRIM1#

sub69260-12090¥1,610

main69260-12090-04iAE92..3D..XL198812-198908

S PACKAGE,BLUE,TRIM8#

sub69260-12090¥1,610

main69260-12090-04iAE92,CE90,EE90..5D;AE92,EE90..3D..(GL,GLI)198705-199206

BLUE,TRIM8#

sub69260-12090¥1,610

main69260-12090-05iAE92..3D..GL;EE90..RHD..GL;AE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub69260-12090¥1,610

main69260-12090-05iAE92..3D..XL198812-198908

S PACKAGE,DARK BEIGE,TRIM4#

sub69260-12090¥1,610

main69260-12090-06iAE92..GLI;AE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub69260-12090¥1,610

main69260-14030-53iEE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL,XLI)198705-199205

SHADOW GRAY,TRIM1#

sub69260-14030¥1,610

main69260-14030-57iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

BROWN,TRIM4#

sub69260-14030¥1,610

main69260-14030-59iAE92,CE90,EE90..3D..(STD,XL,XLI)198708-199205

DARK BLUE,TRIM8#

sub69260-14030¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iEE90..LHD..3D..GL;AE92,CE90,EE90..3D..(STD,XL)¥180198705-199205

sub90520-01274¥160

main90520-01005iAE92..3D..XL¥110198812-198908

S PACKAGE

main90520-01005iEE90..5D;EE90..RHD..GL;AE92..GL,GLI,GTI,SR5;AE92,CE90..5D..(XL,XLI)¥110198705-199211

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iAE92,CE90,EE90¥180198705-199205

sub69268-20020¥180

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12100iAE92,CE90,EE90..5D¥7,300198705-199206

W(*PW)

main69801-12110iAE92,EE90..3D..(GL,GLI,GTI,SR5)¥7,300198705-199211

W(*PW)

main69810-12290iAE92,CE90,EE90..5D¥6,300198705-199206

main69810-12320iAE92,CE90,EE90..3D¥7,300198705-199211

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12100iAE92,CE90,EE90..5D¥7,300198705-199206

W(*PW)

main69802-12110iAE92,EE90..3D..(GL,GLI,GTI,SR5)¥7,300198705-199211

W(*PW)

main69820-12290iAE92,CE90,EE90..5D¥6,300198705-199206

main69820-12320iAE92,CE90,EE90..3D¥7,300198705-199211

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12200iAE92,CE90,EE90..3D¥820198705-199211

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-12140iAE92,CE90,EE90..3D¥820198705-199211

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-12090iAE92,CE90,EE90..3D¥400198705-199211

8511

9010508077

main90105-08077¥110

9016850040

main90168-50040¥70

9151160610

main91511-60610¥120

9165160610

main91651-60610¥100

17 parts on this diagram · 2 diagrams in section
