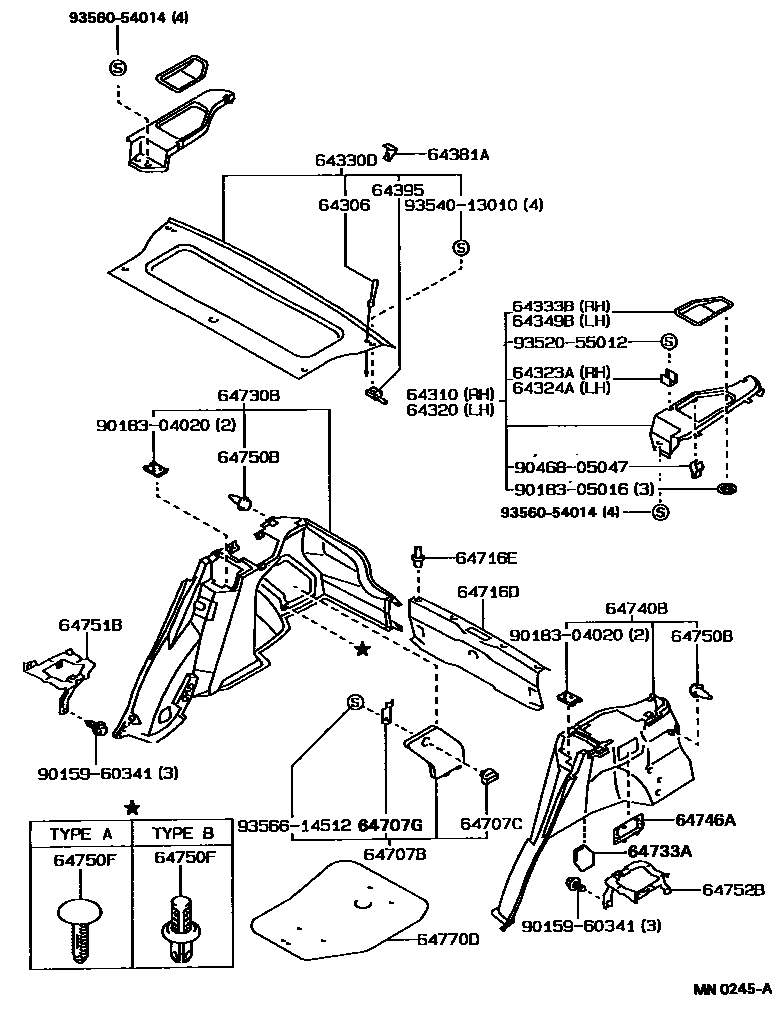

DECK BOARD & DECK TRIM COVER

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-12030iAE92,CE90,EE90¥400198908-199211

main64306-12060iAE92,CE90,EE90¥510198705-198710

sub64306-12030¥400

64310BRACKET, PACKAGE TRAY TRIM, RH

main64301-12090-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64301-12100¥5,700

sub64301-12090¥7,400

main64301-12090-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199206

DARK BLUE,TRIM8#

sub64301-12100¥5,700

sub64301-12090¥7,400

main64301-12090-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64301-12100¥5,700

sub64301-12090¥7,400

main64301-12090-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64301-12100¥5,700

sub64301-12090¥7,400

main64301-12100-03iAE92,CE90,EE90198802-199211

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub64301-12100¥5,700

main64301-12100-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198802-199206

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

sub64301-12100¥5,700

main64301-12100-05iAE92,CE90,EE90..CBR,DSL198802-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

sub64301-12100¥5,700

main64301-12100-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

sub64301-12100¥5,700

64320BRACKET, PACKAGE TRAY TRIM, LH

main64302-12090-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64302-12100¥5,700

sub64302-12090¥7,500

main64302-12090-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199206

DARK BLUE,TRIM8#

sub64302-12100¥5,700

sub64302-12090¥7,500

main64302-12090-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64302-12100¥5,700

sub64302-12090¥7,500

main64302-12090-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64302-12100¥5,700

sub64302-12090¥7,500

main64302-12100-03iAE92,CE90,EE90198802-199211

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub64302-12100¥5,700

main64302-12100-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198802-199206

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

sub64302-12100¥5,700

main64302-12100-05iAE92,CE90,EE90..CBR,DSL198802-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

sub64302-12100¥5,700

main64302-12100-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

sub64302-12100¥5,700

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-12020iAE92,CE90,EE90¥370198705-199211

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64324-12010iAE92,CE90,EE90¥350198705-199211

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-1A040-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64330-1A040¥10,000

main64330-1A040-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub64330-1A040¥10,000

main64330-1A040-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64330-1A040¥10,000

main64330-1A040-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64330-1A040¥10,000

64333BCOVER, PACKAGE TRAY TRIM SIDE, RH

main64333-12070-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64333-12070¥2,160

main64333-12070-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub64333-12070¥2,160

main64333-12070-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64333-12070¥2,160

main64333-12070-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64333-12070¥2,160

64349BCOVER, PACKAGE TRAY TRIM SIDE, LH

main64349-12050-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64349-12050¥2,160

main64349-12050-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub64349-12050¥2,160

main64349-12050-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64349-12050¥2,160

main64349-12050-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64349-12050¥2,160

64381AHANGER, PACKAGE TRAY TRIM

main64381-10010iAE92,CE90,EE90¥300198705-199211

64395PIN, PACKAGE TRAY TRIM HINGE

main64395-12050iAE92,CE90,EE90¥630198705-199211

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-12050-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64707-12050¥2,400

main64707-12050-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub64707-12050¥2,400

main64707-12050-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64707-12050¥2,400

main64707-12050-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64707-12050¥2,400

64707CKNOB, JACK COVER

main64982-16020-23iAE92,CE90,EE90198705-198802

GRAY,TRIM1#

sub64982-16020¥260

main64982-16020-25iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64982-16020¥260

main64982-16020-30iAE92,CE90,EE90198802-199211

SHADOW GRAY,TRIM1#

sub64982-16020¥260

main64982-16020-50iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64982-16020¥260

main64982-16020-54iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199206

DARK BLUE,TRIM8#

sub64982-16020¥260

64707GSTOPPER, JACK COVER

main64981-16021iAE92,CE90,EE90¥320198705-199211

64716DCOVER, DECK TRIM, REAR

main64716-12140-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64716-12140¥6,100

main64716-12140-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub64716-12140¥6,100

main64716-12140-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64716-12140¥6,100

main64716-12140-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64716-12140¥6,100

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07066-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub90467-07066¥120

main90467-07066-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub90467-07066¥120

main90467-07066-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub90467-07066¥120

main90467-07066-14iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub90467-07066¥120

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-12240-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64730-12240¥16,700

main64730-12240-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199206

DARK BLUE,TRIM8#

sub64730-12240¥16,700

main64730-12240-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64730-12240¥16,700

main64730-12240-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64730-12240¥16,700

64733APAD, DECK TRIM SIDE, NO.1

main64733-12040iAE92,CE90,EE90¥350198705-199211

64740BBOARD, DECK TRIM SIDE, LH

main64740-12240-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub64740-12240¥16,700

main64740-12240-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub64740-12240¥16,700

main64740-12240-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub64740-12240¥16,700

main64740-12240-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub64740-12240¥16,700

64746ACOVER, DECK TRIM SIDE LAMP HOLE

main64746-12080-03iEE90..STD,XL;EE90..MTM..XLI;AE92,CE90..STD,XL,XLI198705-199206

SHADOW GRAY,TRIM1#

sub64746-12080¥390

main64746-12080-04iAE92,CE90,EE90..LHD..XL198705-199206

DARK BLUE,TRIM8#

sub64746-12080¥390

main64746-12080-05iAE92,CE90..STD,XL;EE90..LHD..5D..XL;EE90..3D..(STD,XL)198705-198908

DARK BEIGE,TRIM4#

sub64746-12080¥390

main64746-12080-06iEE90..LHD..XL;EE90..MTM..XLI;AE92,CE90..LHD..(XL,XLI)198908-199206

BROWN,TRIM4#

sub64746-12080¥390

64750BRETAINER(FOR DECK SIDE TRIM PANEL)

main67771-32010iAE92,CE90,EE90¥230198705-199211

sub67771-14040¥180

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-06049-01iCE90,EE90..RHD;CE90,EE90..STD198908-199211

BLACK,TRIM1#,8#,TYPE A

sub90467-06049¥140

main90467-06049-01iCE90,EE90..RHD;CE90,EE90..STD198705-199211

BLACK,TRIM1#,4#,8#,TYPE A

sub90467-06049¥140

main90467-06049-01iCE90,EE90..RHD;CE90,EE90..STD198705-199211

BLACK,TRIM1#,TYPE A

sub90467-06049¥140

main90467-06049-01iCE90,EE90..RHD;CE90,EE90..STD198705-198908

BLACK,TRIM1#,4#,TYPE A

sub90467-06049¥140

main90467-06049-03iAE92,CE90,EE90198705-198908

GRAY,TRIM1#,TYPE A

sub90467-06049¥140

main90467-06049-15iAE92,CE90,EE90..CBR,DSL198705-198809

DARK BEIGE,TRIM4#,TYPE A

sub90467-06049¥140

main90467-06049-16iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-198909

BROWN,TRIM4#,TYPE A

sub90467-06049¥140

main90467-06049-24iAE92,CE90,EE90..LHD..(GL,XL)198705-198809

DARK BLUE,TRIM8#,TYPE A

sub90467-06049¥140

main90467-06049-B0iAE92,CE90,EE90198908-199211

SHADOW GRAY,TRIM1#,TYPE A

sub90467-06049¥140

main90467-06049-E0iAE92,CE90,EE90..CBR,DSL198809-198908

DARK BEIGE,TRIM4#,TYPE A

sub90467-06049¥140

main90467-06049-E4iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198909-199206

BROWN,TRIM4#,TYPE A

sub90467-06049¥140

main90467-06049-J1iAE92,CE90,EE90..LHD..(GL,XL)198809-199206

DARK BLUE,TRIM8#,TYPE A

sub90467-06049¥140

main90467-07071-03iAE92,CE90,EE90198705-199009

SHADOW GRAY,TRIM1#,TYPE B

sub90467-07071¥110

main90467-07071-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198811

DARK BLUE,TRIM8#,TYPE B

sub90467-07071¥110

main90467-07071-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#,TYPE B

sub90467-07071¥110

main90467-07071-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#,TYPE B

sub90467-07071¥110

main90467-07071-B4iAE92,CE90,EE90199009-199211

SHADOW GRAY,TRIM1#,TYPE B

sub90467-07071¥110

main90467-07071-J1iAE92..5D;AE92..3D..XL;EE90..5D..GL;CE90,EE90..LHD..XL198811-199206

DARK BLUE,TRIM8#,TYPE B

sub90467-07071¥110

64751BBRACKET, SPEAKER SET, NO.1 RH

main64751-12020iAE92,CE90,EE90¥1,970198705-199211

64752BBRACKET, SPEAKER SET, NO.1 LH

main64752-12020iAE92,CE90,EE90¥1,970198705-199211

64770DCOVER ASSY, SPARE WHEEL

main64770-12120iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥3,170198705-199206

main64770-12140iEE90..3D..GL¥4,890199111-199206

W(NORMAL TIRE)

main64770-12140iAE92..GTI¥4,890198705-199211

main64770-12140iEE90..GL¥4,890198705-199111

W(175/70 TIRE)

main64770-12140iEE90..GL¥4,890198705-199111

W(175/70 TIRE OR 185/70 TIRE)

main64770-12140iEE90..STD..EFI¥4,890198908-199111

W(NORMAL TIPE)

9015960341

main90159-60341¥120

9018304020

main90183-04020¥160

9018305016

main90183-05016¥80

9046805047

main90468-05047¥90

9352055012

main93520-55012¥120

9354013010

main93540-13010¥160

9356054014

main93560-54014¥60

9356614512

main93566-14512¥120

32 parts on this diagram · 1 diagram in section
