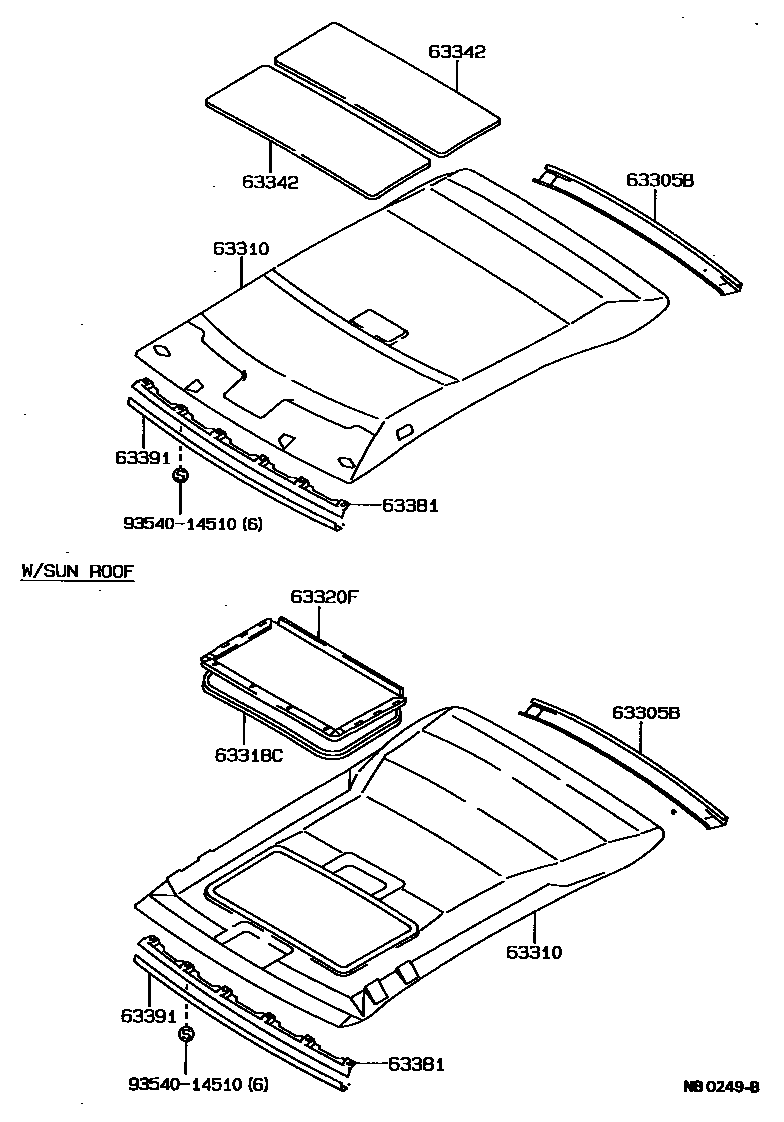

ROOF HEADLINING & SILENCER PAD

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12110-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

main63305-12110-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

main63305-12110-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

main63305-12110-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-1A030-03iAE92,CE90,EE90..SR5,STD,XL,XLI198705-199206

LIGHT GRAY,TRIM1#

main63310-1A030-04iAE92,CE90,EE90..LHD..XL198705-199206

LIGHT BLUE,TRIM8#

main63310-1A030-05iAE92,CE90,EE90..STD,XL198705-198908

LIGHT BEIGE,TRIM4#

main63310-1A030-06iAE92,CE90,EE90..LHD..(XL,XLI)198908-199206

LIGHT BROWN,TRIM4#

main63310-1A040-03iAE92,EE90..GL,GLI,GTI198705-199211

LIGHT GRAY,TRIM1#

main63310-1A040-04iAE92,EE90..GL,GLI198705-199206

LIGHT BLUE,TRIM8#

main63310-1A040-05iAE92,EE90..GL198705-198908

LIGHT BEIGE,TRIM4#

main63310-1A040-06iAE92,EE90..LHD..(GL,GLI)198908-199206

LIGHT BROWN,TRIM4#

main63310-1A060-03iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198705-199211

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A060-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A060-05iAE92,CE90,EE90..GL,XL198705-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A060-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

W(SUN ROOF),LIGHT BROWN,TRIM4#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12030-03iAE92,CE90,EE90..GL,GTI,XL198705-198908

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198908

LIGHT BLUE,TRIM8#

sub63318-12030

main63318-12030-05iAE92,CE90,EE90..GL,XL198705-198908

LIGHT BEIGE,TRIM4#

sub63318-12030

main63318-12030-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-198909

LIGHT BROWN,TRIM4#

sub63318-12030

main63318-12030-B3iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198908-199211

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-E4iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198909-199206

LIGHT BROWN,TRIM4#

sub63318-12030

main63318-12030-J2iAE92,CE90,EE90..GL,GLI,XL,XLI198908-199206

LIGHT BLUE,TRIM8#

sub63318-12030

63320FHEADLINING ASSY, SUN ROOF

main63320-12070-03iAE92,CE90,EE90..GL,GTI,XL198705-198809

LIGHT GRAY,TRIM1#

sub63320-12070

main63320-12070-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198809

LIGHT BLUE,TRIM8#

sub63320-12070

main63320-12070-05iAE92,CE90,EE90..GL,XL198705-198809

LIGHT BEIGE,TRIM4#

sub63320-12070

main63320-12070-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

LIGHT BROWN,TRIM4#

sub63320-12070

main63320-12070-B1iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198809-199211

LIGHT GRAY,TRIM1#

sub63320-12070

main63320-12070-E1iAE92,CE90,EE90..GL,XL198809-198908

LIGHT BEIGE,TRIM4#

sub63320-12070

main63320-12070-J1iAE92,CE90,EE90..LHD..(GL,XL)198809-199206

LIGHT BLUE,TRIM8#

sub63320-12070

63342PAD, ROOF SILENCER, NO.2

main63343-12050iAE92,CE90,EE90198705-199211

63381RETAINER, HEADLINING, FRONT

main63381-12190iAE92,CE90,EE90198705-199211

63391TRIM, ROOF HEADLINING, FRONT

main63391-12060-03iAE92,CE90,EE90198705-199009

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198809

DARK BLUE,TRIM8#

sub63391-12060

main63391-12060-05iAE92,CE90,EE90..CBR,DSL198705-198809

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-198909

BROWN,TRIM4#

sub63391-12060

main63391-12060-B0iAE92,CE90,EE90199009-199211

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-E0iAE92,CE90,EE90..CBR,DSL198809-198908

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-E1iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198909-199206

BROWN,TRIM4#

sub63391-12060

main63391-12060-J0iAE92,CE90,EE90..LHD..(GL,XL)198809-199206

DARK BLUE,TRIM8#

sub63391-12060

9354014510

main93540-14510

8 parts on this diagram · 1 diagram in section
