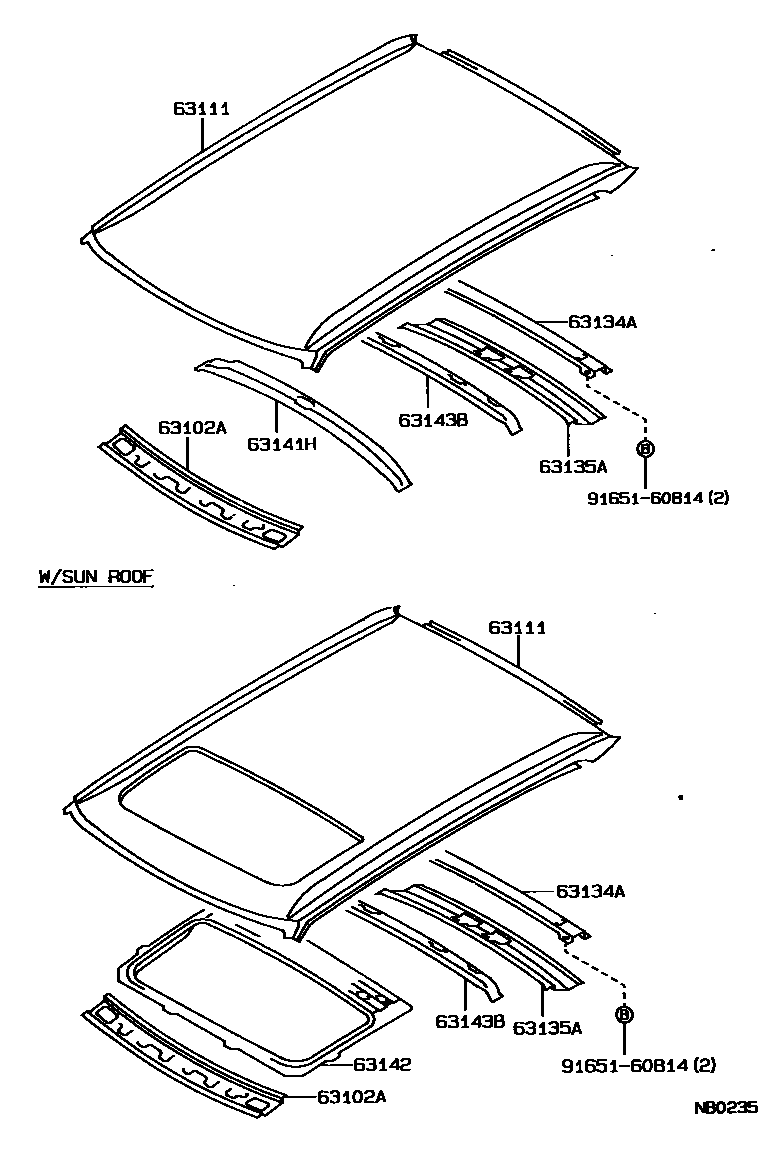

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12040iAE92,CE90,EE90198705-199211

63111PANEL, ROOF

main63111-12390iAE92,CE90,EE90198705-198808

sub63111-12391

main63111-12391iAE92,CE90,EE90198808-199211

main63111-12400iAE92,CE90,EE90..GL,GTI,XL198705-198808

W(SUN ROOF)

sub63111-12401

main63111-12401iEE90..GL,XL;EE90..MTM..XLI;AE92,CE90..GL,GLI,GTI,SR5,XL,XLI198808-199211

W(SUN ROOF)

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-12140iAE92,CE90,EE90198705-199211

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-12080iAE92,CE90,EE90198705-199211

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12130iAE92,CE90,EE90198705-199211

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12030iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198705-199211

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12040iAE92,CE90,EE90198705-199211

9165160814

main91651-60814

8 parts on this diagram · 2 diagrams in section
