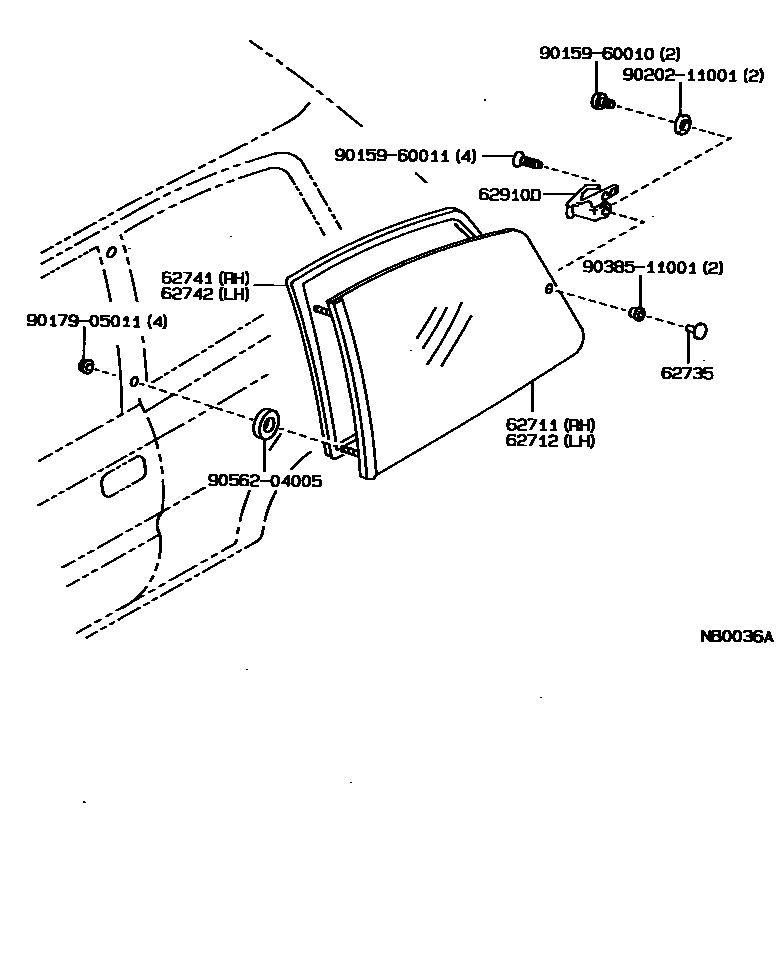

QUARTER WINDOW

0001 1 0002 1

62711GLASS, QUARTER WINDOW, RH

main62071-12180iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

*TT,T=4.0

main62071-12200iAE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)198705-199205

*TEM,T=4.0

sub62071-12180

main62071-12210iAE92,EE90..3D..(GL,GLI,GTI)199011-199211

*TT,T=4.0,GRAY

sub62071-12190

main62711-12590iAE92,CE90,EE90..5D198705-199206

*TEM,T=3.5

main62711-12600iAE92,CE90,EE90..5D198705-199206

*TT,T=3.5

main62711-12680iEE90..5D..GL199011-199206

*TT,T=3.5,GRAY

sub62711-12610

62712GLASS, QUARTER WINDOW, LH

main62072-12180iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

*TT,T=4.0

main62072-12200iAE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)198705-199205

*TEM,T=4.0

sub62072-12180

main62072-12210iAE92,EE90..3D..(GL,GLI,GTI)199011-199211

*TT,T=4.0,GRAY

sub62072-12190

main62712-12590iAE92,CE90,EE90..5D198705-199206

*TEM,T=3.5

main62712-12600iAE92,CE90,EE90..5D198705-199206

*TT,T=3.5

main62712-12730iEE90..5D..GL199011-199206

*TT,T=3.5,GRAY

62735RETAINER, QUARTER WINDOW HINGE

main62735-14010iAE92,CE90,EE90..3D198705-199211

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-12150iAE92,CE90,EE90..3D198705-199211

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-12150iAE92,CE90,EE90..3D198705-199211

62910DLOCK ASSY, QUARTER WINDOW

main62910-12090iAE92,CE90,EE90..3D198705-199211

9015960010

main90159-60010

9015960011

main90159-60011

9017905011

main90179-05011

9020211001

main90202-11001

9038511001

main90385-11001

9056204005

main90562-04005

12 parts on this diagram · 2 diagrams in section
