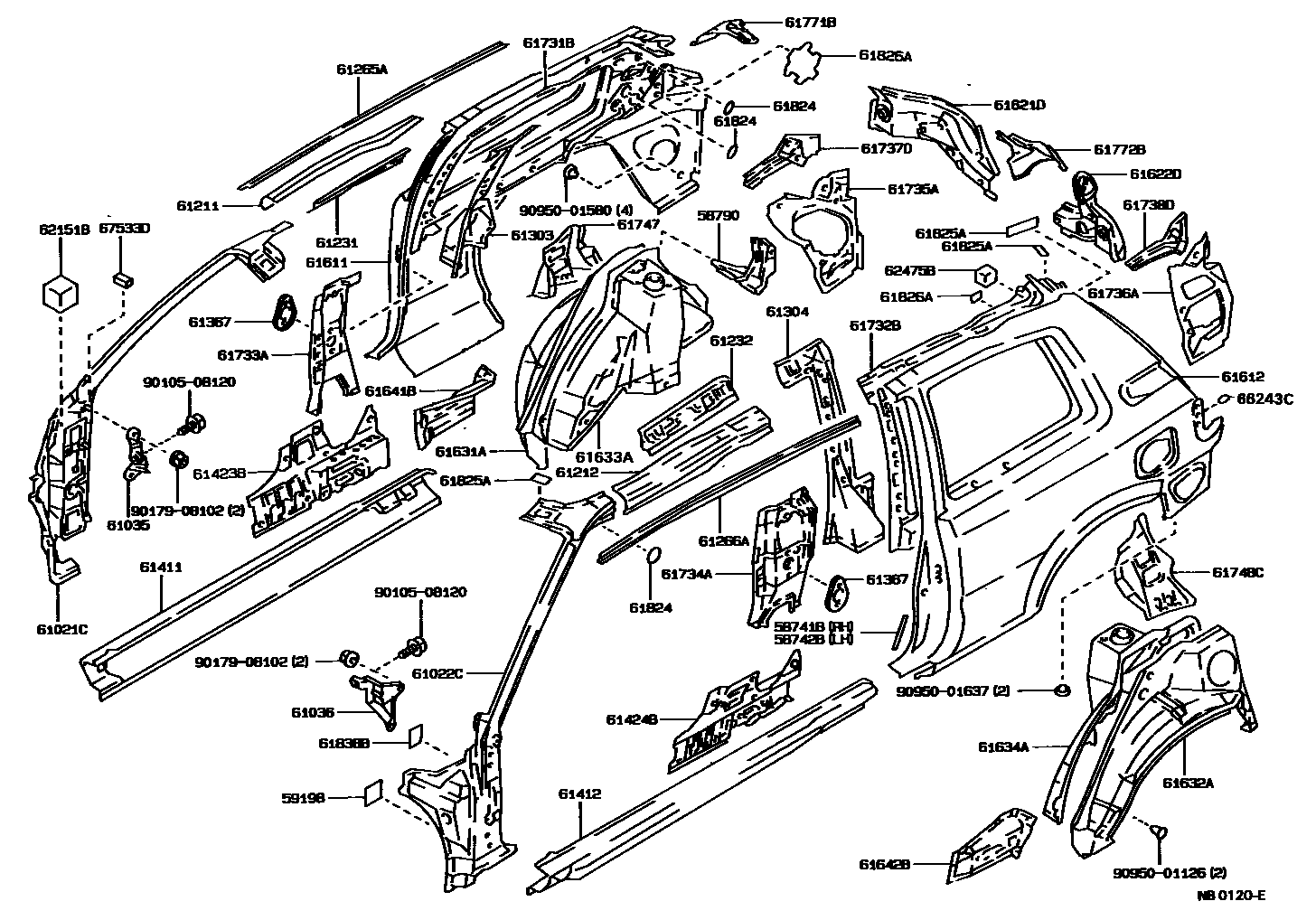

SIDE MEMBER

0001 1 0002 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12040iAE92,CE90,EE90..5D¥340198808-199206

main58741-12050iAE92,CE90,EE90..3D¥340198808-199211

main58741-12060iAE92,CE90,EE90¥860198710-198808

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iAE92,CE90,EE90¥860198710-198808

main58742-12040iAE92,CE90,EE90..5D¥340198808-199206

main58742-12050iAE92,CE90,EE90..3D¥340198808-199211

58790CARRIER ASSY, JACK

main58790-12050iAE92,CE90,EE90¥2,170198705-199211

59198SEAL, NOISE SHUTTER

main59198-12010iAE92,CE90,EE90¥160198705-199211

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-12640iAE92,CE90,EE90..LHD¥45,900198705-199211

main61021-12780iAE92,CE90,EE90..RHD¥45,900198705-199206

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-12650iAE92,CE90,EE90..LHD¥45,900198705-199211

main61022-12790iAE92,CE90,EE90..RHD¥45,900198705-199206

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12040iAE92,CE90,EE90..LHD¥1,960198705-199211

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12040iAE92,CE90,EE90..RHD¥1,970198705-199206

61211RAIL, ROOF SIDE, OUTER RH

main61211-12240iAE92,CE90,EE90..3D¥2,800198705-199211

main61211-12250iAE92,CE90,EE90..5D¥4,830198705-199206

61212RAIL, ROOF SIDE, OUTER LH

main61212-12240iAE92,CE90,EE90..3D¥2,800198705-199211

main61212-12250iAE92,CE90,EE90..5D¥4,830198705-199206

61231RAIL, ROOF SIDE, INNER RH

main61231-12470iAE92,CE90,EE90..3D¥2,190198705-199211

main61231-12490iAE92,CE90,EE90..5D¥3,580198705-199206

61232RAIL, ROOF SIDE, INNER LH

main61232-12390iAE92,CE90,EE90..5D¥3,580198705-199206

main61232-12400iAE92,CE90,EE90..3D¥2,190198705-199211

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12130iAE92,CE90,EE90..3D¥2,190198705-199211

main61265-12140iAE92,CE90,EE90..5D¥2,090198705-199206

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12130iAE92,CE90,EE90..3D¥2,190198705-199211

main61266-12140iAE92,CE90,EE90..5D¥2,090198705-199206

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-12070iAE92,CE90,EE90..3D¥4,030198705-199211

main61303-12090iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)¥4,030198705-199211

W(SUN ROOF)

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-12060iAE92,CE90,EE90..3D¥4,030198705-199211

main61304-12080iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)¥4,030198705-199211

W(SUN ROOF)

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-14010iAE92,CE90,EE90..3D¥680198705-199211

61411PANEL, ROCKER, OUTER RH

main61411-12370iAE92,CE90,EE90..5D¥21,900198705-199206

main61411-12380iAE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)¥21,800198705-199205

main61411-12390iAE92..3D..XL¥21,800198812-199205

W(SIDE MUD GUARD)

main61411-12390iAE92..GTI¥21,800198705-199211

61412PANEL, ROCKER, OUTER LH

main61412-12360iAE92,CE90,EE90..5D¥21,900198705-199206

main61412-12370iAE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)¥21,800198705-199205

main61412-12380iAE92..3D..XL¥21,800198812-199205

W(SIDE MUD GUARD)

main61412-12380iAE92..GTI¥21,800198705-199211

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-12040iAE92,CE90,EE90..3D¥4,140198705-199211

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61424-12030iAE92,CE90,EE90..3D¥4,140198705-199211

61611PANEL, QUARTER, RH

main61611-12925iAE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)¥45,100198705-199205

main61611-12926iAE92..3D..XL¥45,100198812-199205

W(SIDE MUD GUARD)

main61611-12926iAE92..GTI¥45,100198705-199211

main61611-12927iAE92,CE90,EE90..5D¥45,100198705-199206

61612PANEL, QUARTER, LH

main61612-12909iCE90,EE90..STD¥45,100198705-199205

main61612-12910iAE92,CE90,EE90..3D..(GL,GLI,SR5,XL,XLI)¥45,100198705-199205

main61612-12912iAE92..SR5¥45,100198812-199205

W(SIDE MUD GUARD)

main61612-12912iAE92..GTI¥45,100198705-199211

main61612-12915iAE92,CE90,EE90..5D¥39,200198705-199206

61621DTROUGH, BACK DOOR OPENING, RH

main61621-12901iAE92,CE90,EE90¥3,800198705-198910

sub61621-12905¥4,160

main61621-12905iAE92,CE90,EE90¥4,160198910-199211

61622DTROUGH, BACK DOOR OPENING, LH

main61622-12901iAE92,CE90,EE90¥3,800198705-198910

sub61622-12905¥4,160

main61622-12905iAE92,CE90,EE90¥4,160198910-199211

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12230iAE92,CE90,EE90¥10,100198705-199211

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12230iAE92,CE90,EE90¥10,100198705-199211

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12210iAE92,CE90,EE90¥16,500198705-199211

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12220iAE92,CE90,EE90¥16,500198705-199211

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-12040iAE92..SR5;EE90..STD..EFI;AE92,CE90,EE90..5D¥1,540198705-199206

main61641-12050iEE90..3D..CBR;EE90..3D..XLI;AE92,CE90..3D..(GL,GLI,GTI,STD,XL,XLI)¥2,570198705-199211

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-12040iAE92..SR5;EE90..STD..EFI;AE92,CE90,EE90..5D¥1,540198705-199206

main61642-12050iEE90..3D..CBR;EE90..3D..XLI;AE92,CE90..3D..(GL,GLI,GTI,STD,XL,XLI)¥2,570198705-199211

61731BPANEL, ROOF SIDE, INNER RH

main61731-12907iAE92,CE90,EE90..3D¥20,200198705-199211

main61731-12909iAE92,CE90,EE90..5D¥11,100198705-199206

61732BPANEL, ROOF SIDE, INNER LH

main61732-12907iAE92,CE90,EE90..3D¥20,200198705-199211

main61732-12909iAE92,CE90,EE90..5D¥11,100198705-199206

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-12130iAE92,CE90,EE90..3D¥3,510198705-199211

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-12130iAE92,CE90,EE90..3D¥3,510198705-199211

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12270iAE92,CE90,EE90¥2,910198705-198910

sub61735-12271¥3,760

main61735-12271iAE92,CE90,EE90¥3,760198910-199211

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12240iAE92,CE90,EE90¥2,910198705-198910

sub61736-12241¥3,760

main61736-12241iAE92,CE90,EE90¥3,760198910-199211

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-12100iAE92,CE90,EE90¥2,170198705-199211

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-12110iAE92,CE90,EE90¥2,170198705-199211

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12120iAE92,CE90,EE90..3D¥3,420198705-199211

main61747-12130iAE92,CE90,EE90..5D¥3,430198705-199206

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12120iAE92,CE90,EE90..3D¥3,000198705-199211

main61748-12130iAE92,CE90,EE90..5D¥3,030198705-199206

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-12010iAE92,CE90,EE90¥1,840198705-199211

61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH

main61772-12010iAE92,CE90,EE90¥1,840198705-199211

61824PLATE, NOISE CONTROL, NO.1

main61824-12020iAE92,CE90,EE90¥170198705-198905

FRONT

sub61824-12040¥220

main61824-12020iAE92,CE90,EE90¥170198705-198808

REAR

sub61824-12040¥220

main61824-12040iAE92,CE90,EE90¥220198808-199211

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iAE92,CE90;EE90..3D..CBR;EE90..LHD..5D;EE90..3D..XLI¥190198705-199211

90 X 65

main61825-12010iAE92,CE90,EE90¥190198705-199211

main61825-12020iAE92,CE90,EE90¥240198908-199211

190 X 80

main61825-12020iAE92,CE90,EE90¥240198705-198908

50 X 160

61826APLATE, NOISE CONTROL, NO.3

main61826-12020iCE90,EE90..STD¥160198705-198908

65X40

main61826-12020iAE92,CE90,EE90¥160198908-199008

main61826-12020iAE92,CE90,EE90¥160199008-199211

40 X 65

main61826-12030iAE92,CE90,EE90¥380198705-198908

180X196

main61826-12030iAE92,CE90,EE90¥380198908-199211

180 X 196.5

main61826-12030iAE92..SR5;EE90..3FC..EFI¥380198908-199211

main61826-12030iAE92,CE90,EE90..GL,GLI,GTI,XL,XLI¥380198705-199008

W(SUN ROOF)

61838BPLATE, NOISE CONTROL, NO.5

main61838-12010iAE92,CE90,EE90¥240198705-199211

62151BPAD, COWL SIDE SILENCER

main62151-12100iAE92,CE90,EE90..3D¥1,090199106-199211

T3.0X80X80

main62151-12100iAE92,CE90,EE90¥1,090198705-199106

main62151-12130iAE92,CE90,EE90..5D¥1,090199106-199206

85X85

62475BSEAL, ROOF SIDE, INNER

main62475-12040iAE92,CE90,EE90¥430198705-199211

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010iEE90..CBR;EE90..XLI;AE92,CE90..GLI,GTI,STD,XL,XLI¥180198905-199211

67533DPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-12010iAE92,CE90,EE90¥480198705-199211

9010508120

main90105-08120¥90

9017908102

main90179-08102¥160

9095001126

main90950-01126¥360

9095001580

main90950-01580¥230

9095001637

main90950-01637¥110

56 parts on this diagram · 2 diagrams in section
