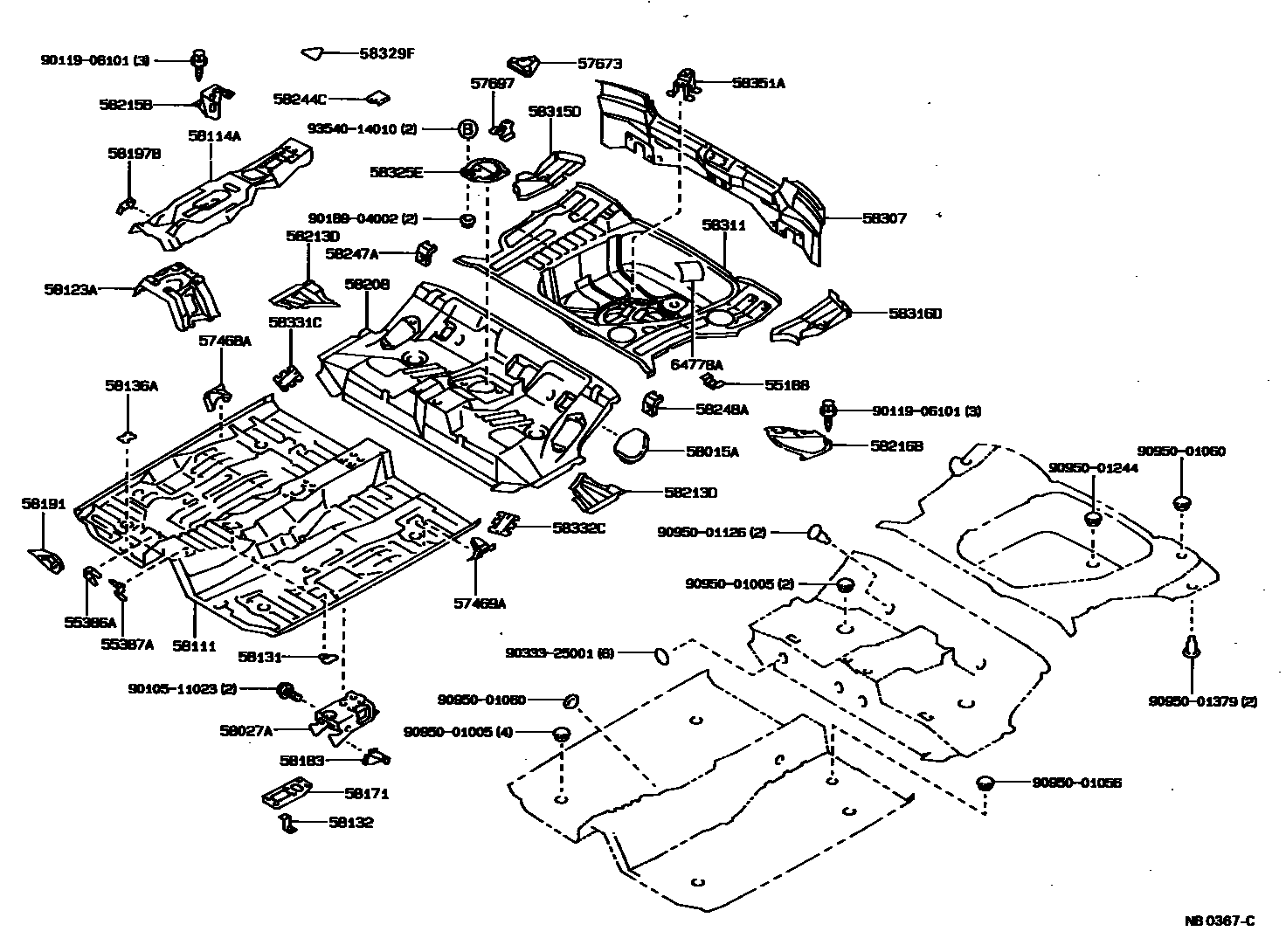

FLOOR PAN & LOWER BACK PANEL

55188BRACKET, UNDER TRAY SUPPORT

main55188-10010iAE92,CE90,EE90¥300198705-199211

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-12040iAE92,CE90,EE90¥780198705-199211

55387ABRACKET, COMPUTER MOUNTING, NO.2

main55387-12020iAE92,CE90,EE90¥780198705-199211

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-12030iAE92,CE90,EE90¥390198705-199211

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-12030iAE92,CE90,EE90¥390198705-199211

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57607-12020iAE92,CE90,EE90¥940198705-199211

57697RETAINER, REAR SEAT CUSHION

main57697-12020iAE92,CE90,EE90¥430198705-199211

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12020iAE92,CE90,EE90¥2,050198705-199211

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12030iAE92,CE90,EE90¥2,350198705-198905

main58027-12050iEE90..CBR;AE92,CE90..GL,GTI,STD,XL¥2,590198905-199008

sub58027-12060¥2,660

main58027-12060iAE92,EE90..(GLI,SR5,STD,XLI)..EFI¥2,660198905-199211

main58027-12100iAE92..GTI;AE92,CE90,EE90..CBR,DSL¥2,560199006-199211

58111PAN, FRONT FLOOR

main58111-12200iAE92,CE90,EE90¥45,000198705-199211

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12050iAE92,CE90,EE90¥4,650198705-199211

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-12040iAE92,CE90,EE90¥4,270198705-199211

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12060iAE92,EE90..LHD..EFI¥400198705-199211

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-32010iAE92,EE90..LHD..MTM¥450198705-199211

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iAE92,CE90,EE90¥220198705-199211

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12080iAE92,CE90,EE90¥910198705-199211

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-12090iAE92,CE90,EE90¥1,170198705-199211

RH

main58184-12110iAE92,CE90,EE90¥1,170198705-199211

LH

58191FOOTREST, FRONT FLOOR

main58191-12100iAE92,EE90..RHD..(GL,GTI)¥1,510198705-199205

main58192-12040iAE92..3D..XL;AE92,EE90..LHD..(GL,GTI)¥1,530198709-199211

main58192-12050iAE92,EE90..LHD..(GL,GTI)¥1,540198705-198709

sub58192-12040¥1,530

58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

main58197-12010iAE92,CE90,EE90¥280198705-199211

58208PAN, CENTER FLOOR

main58211-12170iAE92,CE90,EE90¥28,000198705-199211

main58211-12170iAE92..LHD..GTI¥28,000198908-199211

FOR USA & CANADA

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-12020iAE92,CE90,EE90¥4,270198705-199211

RH

main58214-12010iAE92,CE90,EE90¥4,270198705-199211

LH

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-16010iAE92,CE90,EE90¥670198705-199211

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-16010iAE92,CE90,EE90¥670198705-199211

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-16030iAE92,CE90,EE90¥260198705-199211

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12030iAE92,CE90,EE90¥580198705-199211

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12030iAE92,CE90,EE90¥580198705-199211

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A070iAE92,CE90,EE90¥17,600198705-198910

sub58307-1A071¥17,500

main58307-1A071iAE92,CE90,EE90¥17,500198910-199211

58311PAN, REAR FLOOR

main58311-12180iAE92,CE90,EE90¥27,800198705-199211

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12040iAE92,CE90,EE90¥870198705-199211

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12040iAE92,CE90,EE90¥870198705-199211

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12020iAE92,CE90,EE90¥780198705-199211

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-16010iAE92,EE90..3D..XLI;AE92,CE90,EE90..3D..(SR5,STD,XL)..(CBR,DSL)¥300198705-199205

58331CCOVER, REAR FLOOR SIDE SERVICE HOLE, RH

main58331-12010iAE92,CE90,EE90¥700198705-199211

58332CCOVER, REAR FLOOR SIDE SERVICE HOLE, LH

main58332-12010iAE92,CE90,EE90¥700198705-199211

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12030iAE92,CE90,EE90¥1,020198705-199211

64778APROTECTOR, SPARE WHEEL

main64778-12030iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥1,090198705-199206

9010511023

main90105-11023¥190

9011906101

main90119-06101¥130

9018904002

main90189-04002¥100

9033325001

main90333-25001¥140

9095001005

main90950-01005¥400

9095001056

main90950-01056¥230

9095001060

main90950-01060¥200

9095001126

main90950-01126¥360

9095001244

main90950-01244¥410

9095001379

main90950-01379¥250

9354014010

main93540-14010¥100

47 parts on this diagram · 1 diagram in section
