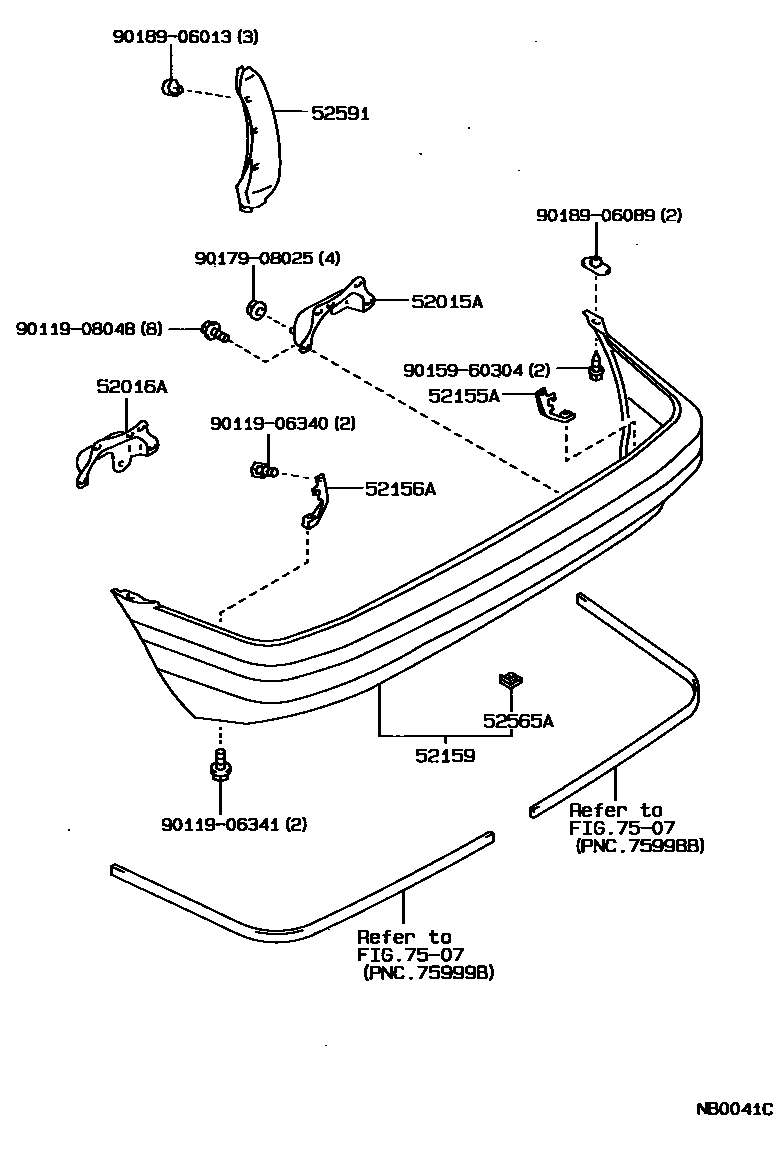

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52181-12310iAE92,CE90,EE90198705-199211

52016AARM SUB-ASSY, REAR BUMPER, LH

main52182-12260iAE92,CE90,EE90198705-199211

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12170iAE92,CE90,EE90198705-199211

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12160iAE92,CE90,EE90198705-199211

52159COVER, REAR BUMPER

main52105-12050iAE92,CE90,EE90..RHD198705-199211

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040iAE92,CE90,EE90198705-198910

main52565-16020iAE92,CE90,EE90198910-199211

52591SEAL, REAR BUMPER SIDE, RH

main52591-12060iAE92,CE90,EE90198705-199211

7507

9011906340

main90119-06340

9011906341

main90119-06341

9011908048

main90119-08048

9015960304

main90159-60304

9017908025

main90179-08025

9018906013

main90189-06013

9018906089

main90189-06089

15 parts on this diagram · 1 diagram in section
