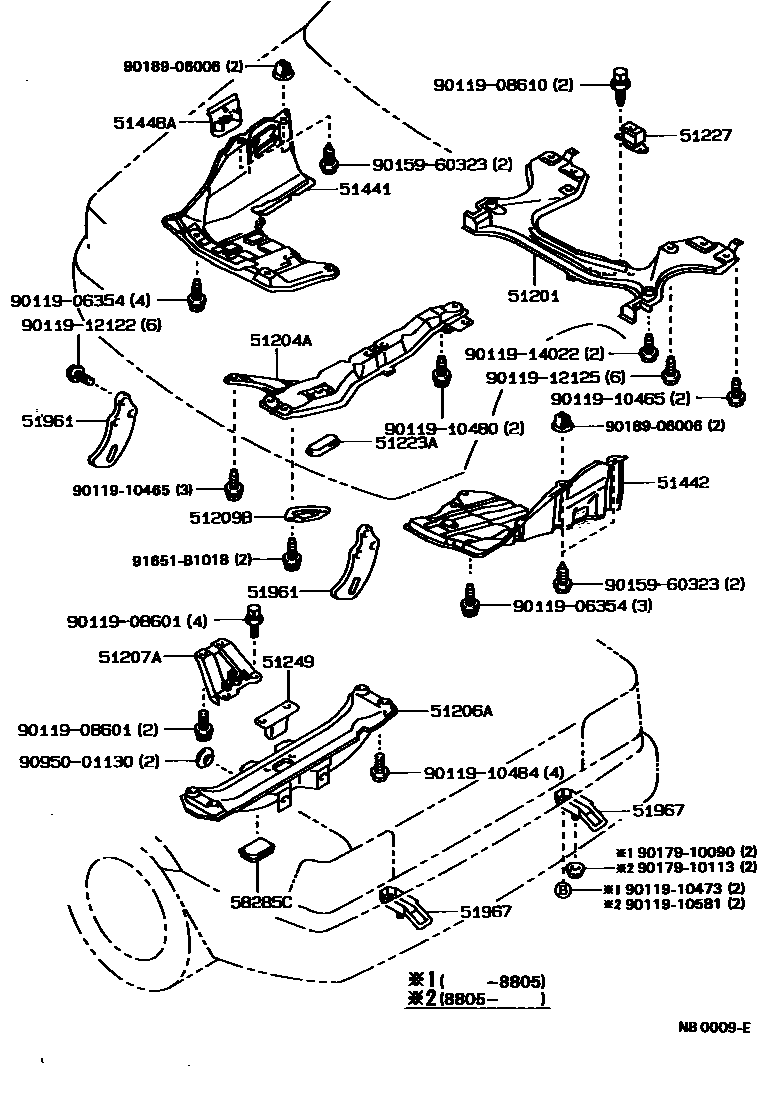

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12280iAE92,CE90,EE90198705-198710

sub51201-12281

sub90950-06001

main51201-12281iAE92,CE90,EE90198710-198711

sub51201-12282

sub90950-01603

main51201-12282iAE92,CE90,EE90198711-199211

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12060iAE92,CE90,EE90198705-199211

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12030iAE92,CE90,EE90198705-199211

51207AMEMBER SUB-ASSY, DIFFERENTIAL SUPPORT

main51207-12010iAE92..GTI198705-199211

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAE92,CE90,EE90198705-199211

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAE92,CE90,EE90198705-199211

sub51223-20030

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12030iAE92,CE90,EE90198705-198811

sub51227-12031

main51227-12031iAE92,CE90,EE90198811-199211

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12020iAE92,CE90,EE90198705-198712

sub51249-12030

main51249-12030iAE92,CE90,EE90198712-198811

sub51249-12040

main51249-12040iAE92,CE90,EE90198811-199211

51441COVER, ENGINE UNDER, NO.1

main51441-12120iAE92,CE90,EE90198705-199211

51442COVER, ENGINE UNDER, NO.2

main51442-12050iAE92,CE90,EE90..MTM198705-199211

main51442-12060iEE90..3FC198705-199206

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE92,CE90,EE90198705-199211

51961HOOK, NO.1

main51963-12180iAE92,CE90,EE90198705-199211

51967HOOK, TRANSPORT, REAR

main51095-12050iAE92,CE90,EE90198705-199211

58285CCOVER, REAR FLOOR HOLE

main58285-12020iAE92,CE90,EE90198705-199211

9011906354

main90119-06354

9011908601

main90119-08601

9011908610

main90119-08610

9011910465

main90119-10465

9011910473

main90119-10473

9011910480

main90119-10480

9011910484

main90119-10484

9011910581

main90119-10581

9011912122

main90119-12122

9011912125

main90119-12125

9011914022

main90119-14022

9015960323

main90159-60323

9017910090

main90179-10090

9017910113

main90179-10113

9018906006

main90189-06006

9095001130

main90950-01130

91651B1018

main91651-B1018

31 parts on this diagram · 1 diagram in section
