REAR DISC BRAKE CALIPER & DUST COVER

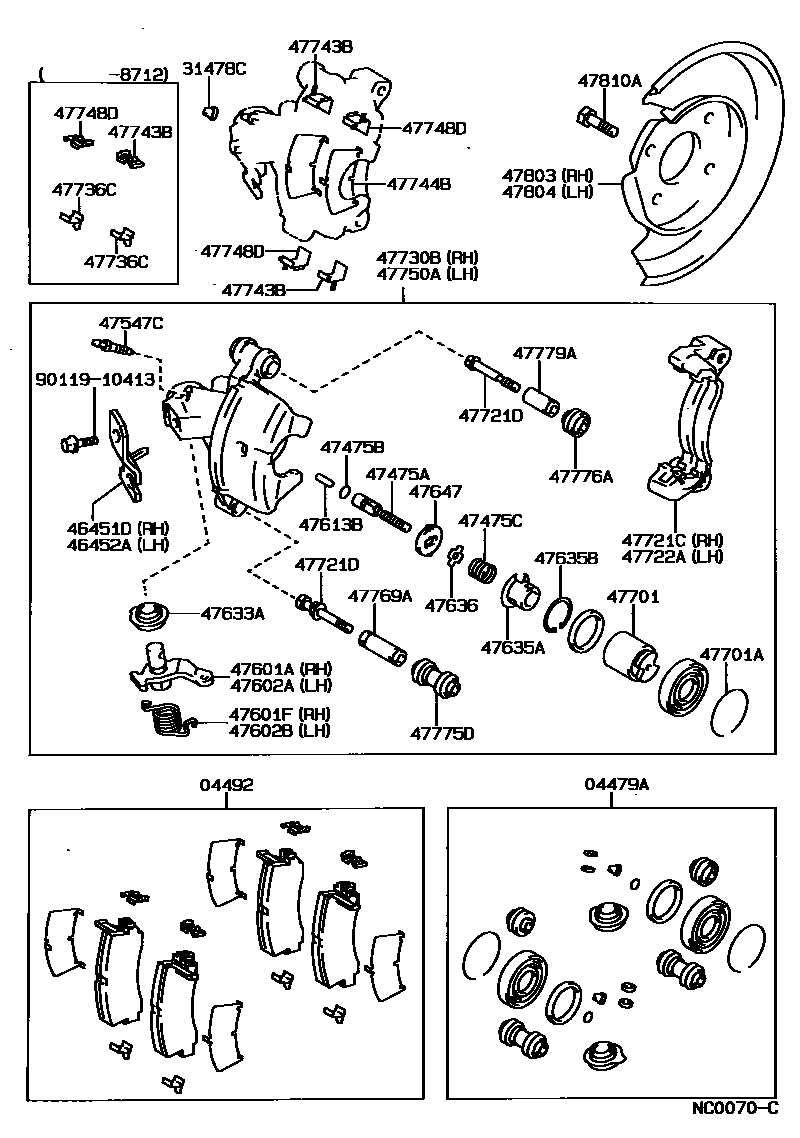

Parts diagram
04479ACYLINDER KIT, DISC BRAKE, REAR
main04479-12130i198705-199211
04492PAD KIT, DISC BRAKE, REAR
main04492-12050i198705-198712
main04492-12051i198712-198805
main04492-12052i198805-198908
main04492-12060i198908-199211
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
main31478-30010i198705-199211
46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH
main46451-12030i198705-199211
46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH
main46452-12020i198705-199211
47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)
main47475-12030i198705-199211
47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)
main90301-09007i198705-199211
47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)
main90501-23051i198705-199211
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
main47547-20010i198705-199211
47601ACRANK SUB-ASSY, PARKING BRAKE, RH
main47601-12020i198705-199211
47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)
main90508-32020i198705-199211
47602ACRANK SUB-ASSY, PARKING BRAKE, LH
main47602-12020i198705-199211
47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)
main90508-32021i198705-199211
47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)
main47613-12020i198705-199211
47633ABOOT, PARKING BRAKE CRANK
main47633-12010i198705-199211
47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)
main47635-12020i198705-199211
47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)
main90521-32002i198705-199211
47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)
main47636-12010i198705-199211
47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)
main47647-12010i198705-199211
47701PISTON SUB-ASSY, REAR DISC BRAKE
main47701-12030i198705-199211
47701ARING, SET(FOR DISC BRAKE PISTON, REAR)
main90522-43004i198705-199211
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
main47721-12140i198705-198908
main47721-12150i198908-199211
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
main90109-08098i198705-199211
*8-1.25PX56-15
main90119-08431i198705-199211
*8-1.25PX62-20
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
main47721-12140i198705-198908
main47721-12150i198908-199211
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
main47730-12330i198705-198908
main47730-12380i198908-199211
47736CPLATE, REAR DISC BRAKE PAD GUIDE
main47736-12030i198705-198712
47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
main47743-12030i198705-198712
main47743-12060i198712-199211
47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)
main47744-12070i198705-198805
main47744-12071i198805-198908
main47744-12080i198908-199211
47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
main47748-12090i198705-198712
main47748-12110i198712-199211
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
main47750-12330i198705-198908
main47750-12380i198908-199211
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
main47769-28010i198705-199211
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
main47775-14010i198705-199211
47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)
main47776-12010i198705-199211
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
main47779-12010i198705-199211
47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
main47803-12040i198705-199211
main47803-12050i198908-199211
W(*66)
47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
main47804-12040i198705-199211
main47804-12050i198908-199211
W(*66)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
main90101-10089i198705-198707
main90105-10167i198707-199211
9011910413

38 parts on this diagram · 2 diagrams in section
