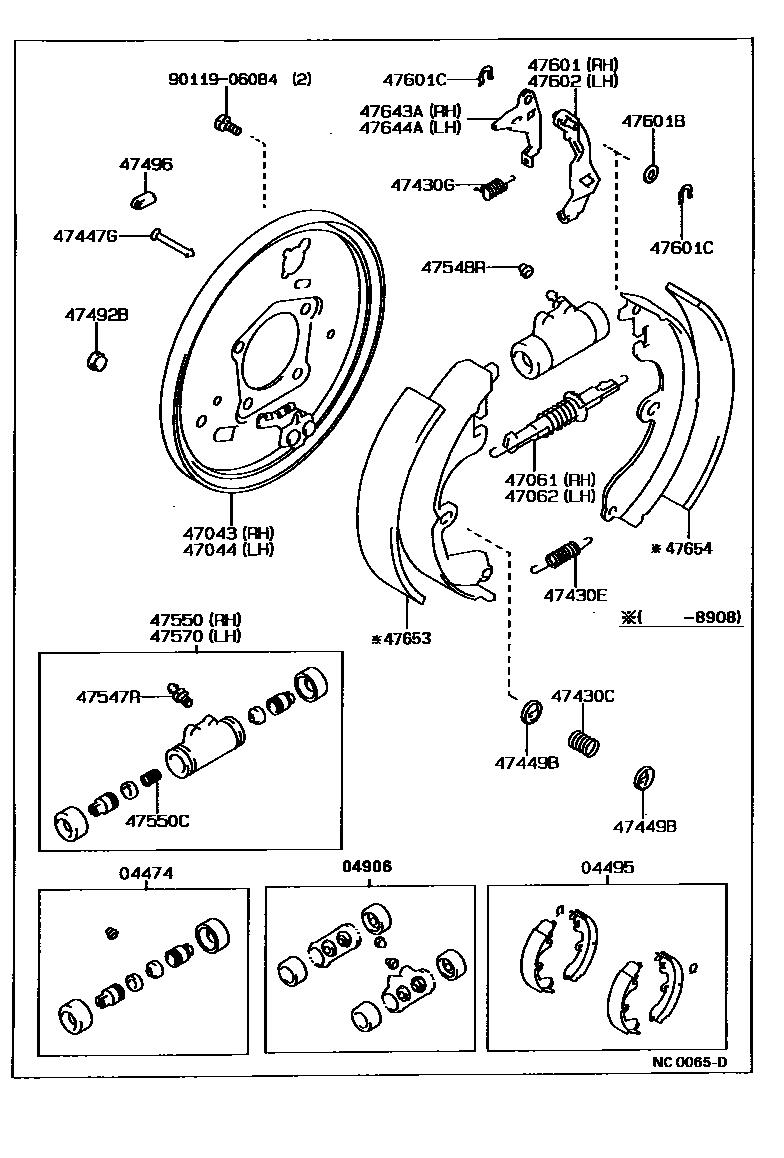

04474CYLINDER KIT, REAR WHEEL
main04474-16020iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥1,990198705-199206 04495SHOE KIT, REAR BRAKE
main04495-12110iAE92,CE90,EE90..CBR,DSL¥6,300198705-198809 main04495-12111iAE92,CE90,EE90..CBR,DSL¥6,300198809-198908 main04495-12171iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥6,300198908-199206 04906CUP KIT, REAR WHEEL CYLINDER
main04906-16020iAE92,CE90,EE90..GL,GLI,SR5,STD,XL¥1,110198705-199206 47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
main47043-12070iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥4,120198705-199206 47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
main47044-12070iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥4,120198705-199206 47061STRUT SET, PARKING BRAKE SHOE, RH
main47061-32010iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥2,190198705-199206 47062STRUT SET, PARKING BRAKE SHOE, LH
main47062-32010iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥2,190198705-199206 47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
main90501-18017iAE92,CE90,EE90..CBR,DSL¥190198705-199206 47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
main90506-18034iAE92,CE90,EE90..CBR,DSL¥250198705-199206 47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
main90506-12036iAE92,CE90,EE90..CBR,DSL¥260198705-199206 47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
main47447-30010iAE92,CE90,EE90..CBR,DSL¥230198705-199206 47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
main47449-30030iAE92,CE90,EE90..CBR,DSL¥190198705-199206 47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
main47492-32010iAE92,CE90,EE90..CBR,DSL¥130198705-199206 47496PLUG, HOLE(FOR REAR BRAKE)
main47491-20011iAE92,CE90,EE90..CBR,DSL¥140198705-199206 47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
main47547-20010iAE92,CE90,EE90..CBR,DSL¥200198705-199206 47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
main31478-30010iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥160198705-199206 47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
main47550-16030iAE92,CE90,EE90..CBR,DSL¥5,100198705-199006 main47550-20120iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥4,950199006-199206 47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
main90501-07006iAE92,CE90,EE90..CBR,DSL¥200198705-199206 47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
main47570-16010iAE92,CE90,EE90..CBR,DSL¥5,100198705-199006 main47570-20030iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥4,950199006-199206 47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
main47601-32010iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥760198705-199206 47601BSHIM, REAR PARKING BRAKE SHOE LEVER
main90564-08150iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥170198705-199206 T=0.3
main90564-08151iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥170198705-199206 T=0.6
main90564-08152iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥170198705-199206 T=0.9
main90564-08172iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥190198705-199206 T=0.2
main90564-08173iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥170198705-199206 T=0.4
main90564-08174iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥170198705-199206 T=0.5
47601CWASHER, C(FOR REAR BRAKE)
main90213-06013iAE92,CE90,EE90..CBR,DSL¥110198705-199206 T=1.2
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
main47602-32010iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥760198705-199206 47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
main47643-32010iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥430198705-199206 47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
main47644-32010iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥430198705-199206 47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
