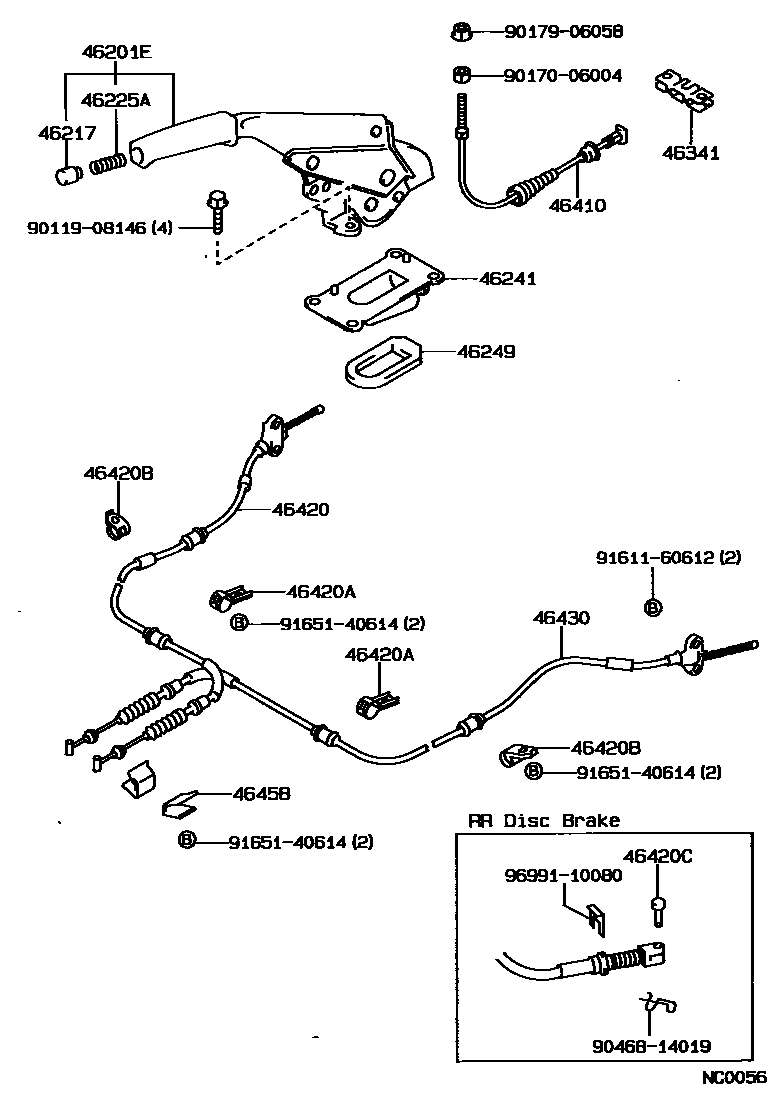

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12100-03iAE92,CE90,EE90..STD,XL198705-198801

SHADOW GRAY,TRIM1#

sub46201-12101

main46201-12100-04iAE92,CE90,EE90..STD,XL198705-198801

DARK BLUE,TRIM8#

sub46201-12101

main46201-12100-05iAE92,CE90,EE90..STD,XL198705-198801

DARK BEIGE,TRIM4#

sub46201-12101

main46201-12101-03iAE92,CE90,EE90..STD,XL,XLI198801-199009

SHADOW GRAY,TRIM1#

sub46201-12101

main46201-12101-06iAE92,CE90,EE90..LHD..(XL,XLI)198908-199206

BROWN,TRIM4#

sub46201-12101

main46201-12101-B0iAE92,CE90,EE90..STD,XL,XLI199009-199206

SHADOW GRAY,TRIM1#

sub46201-12101

main46201-12101-E0iAE92,CE90,EE90..STD,XL198809-198908

DARK BEIGE,TRIM4#

sub46201-12101

main46201-12101-J0iAE92,CE90,EE90..STD,XL,XLI198809-199206

DARK BLUE,TRIM8#

sub46201-12101

main46201-12110-03iAE92,EE90..GL,GTI198705-198801

SHADOW GRAY,TRIM1#

sub46201-12111

main46201-12110-04iAE92,EE90..GL,GTI198705-198801

DARK BLUE,TRIM8#

sub46201-12111

main46201-12110-05iAE92,EE90..GL,GTI198705-198801

DARK BEIGE,TRIM4#

sub46201-12111

main46201-12111iAE92,EE90..GL,GTI198908-199203

sub46201-12101

main46201-12111-03iAE92,EE90..GL,GLI,GTI,SR5198801-199206

SHADOW GRAY,TRIM1#

sub46201-12111

sub46201-12101

main46201-12111-06iAE92,EE90..LHD..(GL,GLI)198908-199206

BROWN,TRIM4#

sub46201-12111

sub46201-12101

main46201-12111-E0iAE92,EE90..GL198809-198908

DARK BEIGE,TRIM4#

sub46201-12111

sub46201-12101

main46201-12111-J0iAE92,EE90..GL,GLI198809-199206

DARK BLUE,TRIM8#

sub46201-12111

sub46201-12101

main46201-12140-03iAE92..GTI198909-199211

SHADOW GRAY,TRIM1#

sub46201-12140

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020iAE92,EE90..GL,GTI198908-199211

sub46217-16030

main46217-12020-03iAE92,CE90,EE90198801-199009

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-E0iAE92,CE90,EE90..CBR,DSL198802-198908

DARK BEIGE,TRIM4#

sub46217-12020

sub46217-16030

main46217-12020-E1iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub46217-12020

sub46217-16030

main46217-12020-J0iAE92,CE90,EE90..LHD..(GL,XL)198801-199206

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-20020-15iAE92,CE90,EE90..CBR,DSL198705-198712

BEIGE,TRIM4#

sub46217-20020

main46217-20020-43iAE92,CE90,EE90198705-198712

SHADOW GRAY,TRIM1#

sub46217-20020

main46217-20020-54iAE92,CE90,EE90..LHD..(GL,XL)198705-198712

DARK BLUE,TRIM8#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAE92,CE90,EE90198705-199211

46241BOOT, PARKING BRAKE LEVER

main46241-12080iAE92,CE90,EE90198705-199211

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iAE92,CE90,EE90198705-199211

46341EQUALIZER, PARKING BRAKE

main46341-12010iAE92,CE90,EE90198705-198712

main46341-32010iAE92,CE90,EE90198712-199211

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12160iAE92,CE90,EE90198705-199211

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12340iAE92..GL,GLI,SR5,XL,XLI198705-199206

main46420-12360iAE92..GTI198705-199211

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01016iAE92,CE90,EE90198705-199211

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01015iAE92,CE90,EE90198705-199107

main90949-01746iAE92,CE90,EE90199107-199211

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040iAE92..EFI198705-199211

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12240iAE92..GL,GLI,SR5,XL,XLI198705-199206

main46430-12260iAE92..GTI198705-199211

46458RETAINER, CABLE

main46458-20020iAE92,CE90,EE90198705-199211

sub46458-50010

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

20 parts on this diagram · 1 diagram in section
