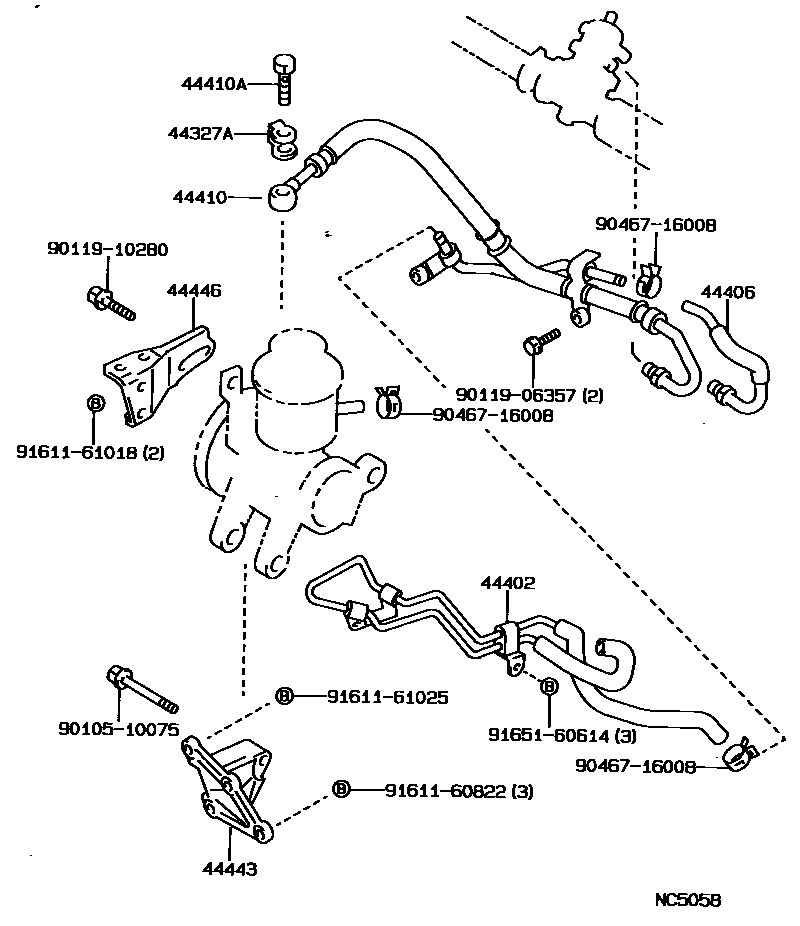

POWER STEERING TUBE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE92,CE90..GL,GLI,SR5,XL,XLI¥260198705-199206

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-12050iAE92..GL,GLI,SR5,XL,XLI198705-199206

44406TUBE SUB-ASSY, RETURN

main44406-12110iAE92,CE90..LHD..(GL,GTI,XL)¥2,660198705-199211

44410TUBE ASSY, PRESSURE FEED

main44410-12260iAE92..RHD¥18,200198705-198905

sub44410-12261¥26,200

sub44420-12070¥6,000

main44410-12261iAE92..RHD¥26,200198905-199005

sub44410-12262¥25,700

main44410-12262iAE92..RHD¥25,700199005-199205

main44410-12270iCE90..XL¥18,100198705-199206

sub44410-12271¥18,100

main44410-12280iEE90..CBR¥19,200198908-199206

main44410-12300iAE92..GL,GLI,SR5,XL,XLI198705-199206

main44410-12310iAE92..LHD..EFI¥20,300198705-198905

sub44410-12311¥20,300

sub44420-12080¥7,100

main44410-12311iAE92..LHD..GTI¥20,300198905-199005

sub44410-12312¥20,200

main44410-12312iAE92..LHD..GTI¥20,200199005-199211

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE92,CE90..GL,GLI,SR5,XL,XLI¥520198705-199206

44443BRACKET, PUMP

main44443-12050iAE92..GL,GLI,SR5,XL,XLI¥8,500198705-199206

main44443-12060iAE92..GTI¥14,100198705-199211

main44443-12070iEE90..CBR¥3,740198908-199206

44446STRUT, ADJUSTING

main44446-12040iAE92..GL,GLI,SR5,XL,XLI¥1,810198705-199206

main44446-12050iEE90..CBR¥1,320198908-199206

9010510075

main90105-10075¥180

9011906357

main90119-06357¥100

9011910280

main90119-10280¥360

9046716008

main90467-16008¥240

9161160822

main91611-60822¥170

9161161018

main91611-61018¥130

9161161025

main91611-61025¥240

9165160614

main91651-60614¥70

15 parts on this diagram · 7 diagrams in section
