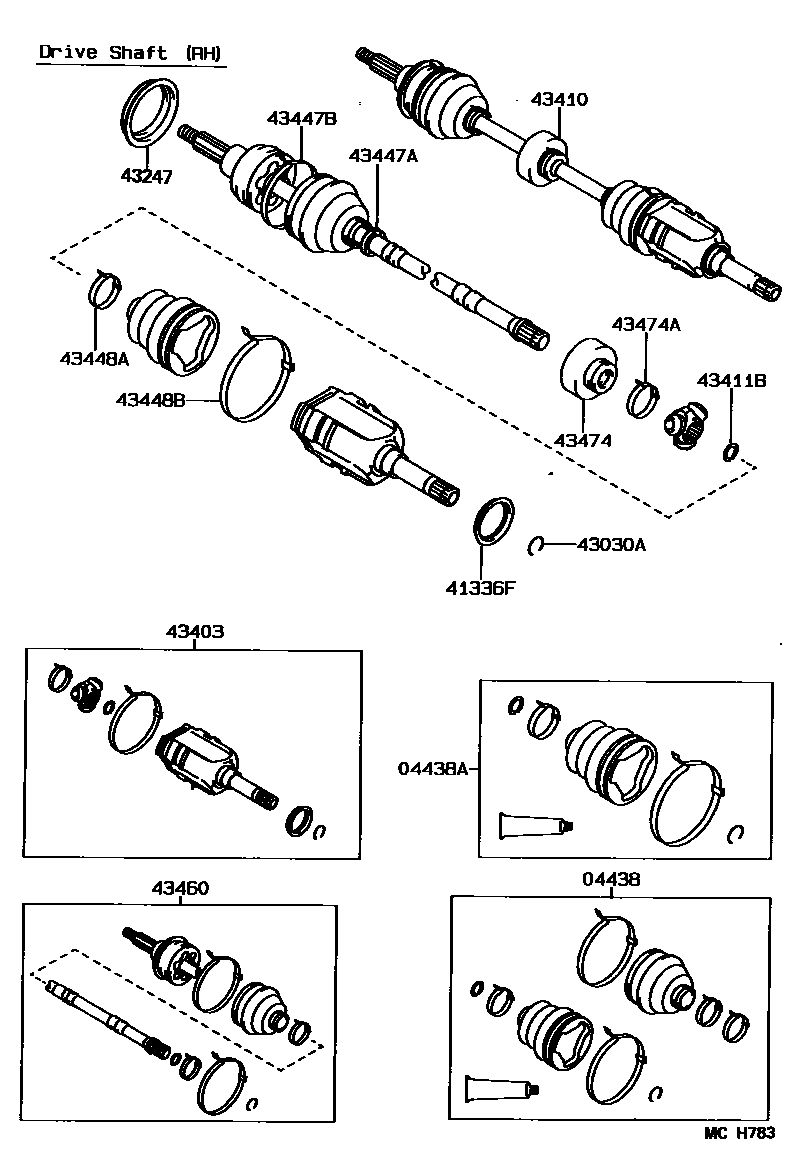

FRONT DRIVE SHAFT

0001 1 0004 1 0007 1 0009 1 0011 1 0013 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12031iCE90¥10,800198705-199009

main04438-12040iAE92..EFI¥10,800198705-198709

main04438-12080iAE92,EE90..CBR¥10,800198705-199002

sub04438-12170¥10,800

main04438-12120iAE92..GTI¥10,800198709-199002

sub04438-12190¥10,800

main04438-12170iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥10,800199002-199009

sub04438-12171¥10,800

main04438-12171iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥10,800199009-199206

sub04438-12370¥10,800

main04438-12190iCE90¥10,800199002-199206

main04438-12191iAE92..GTI¥10,800199009-199205

sub04438-20110¥10,800

main04438-20110iAE92..GTI¥10,800199205-199211

sub04438-20131¥10,800

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12050iCE90¥6,700198705-199009

main04438-12060iAE92..EFI¥6,700198705-198709

sub04438-17031¥6,700

main04438-12070iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥6,700198705-199002

sub04438-12160¥6,700

main04438-12160iAE92..GTI¥6,700199002-199206

sub04438-12161¥6,700

main04438-12161iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥6,700199009-199211

sub04438-12410¥6,700

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥130198705-199211

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004iAE92,EE90..CBR¥100198705-199211

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-12010iAE92..LHD..GTI¥780198908-199211

W(*66)

main43247-32011iAE92,CE90,EE90¥2,420198908-199106

sub43247-33010¥2,400

main43247-33010iAE92,CE90,EE90¥2,400199106-199211

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-20020iCE90¥26,300199009-199206

main43403-12040iAE92,EE90¥27,100198909-199211

main43403-19055iAE92,EE90..CBR¥27,600198705-198709

sub43403-19085¥17,300

main43403-19085iAE92,EE90¥17,300198709-198909

main43403-39016iCE90¥30,100198705-199009

main43403-39025iAE92..EFI¥28,400198705-198709

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12130iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥83,300198705-199101

sub43410-12131¥82,600

sub43525-20030¥300

sub90179-22020¥310

main43410-12131iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥82,600199101-199206

sub43410-12122¥82,300

sub90178-22001¥310

main43410-12140iAE92..EFI¥83,300198705-198709

sub43410-12141¥83,300

sub43525-20030¥300

sub90179-22020¥310

main43410-12150iCE90¥83,300198705-199009

sub43410-12151¥83,300

sub43525-20030¥300

sub90179-22020¥310

main43410-12170iAE92..GTI¥80,500198709-199101

sub43410-12171¥82,600

sub43525-20030¥300

sub90179-22020¥310

main43410-12171iAE92..GTI¥82,600199101-199211

sub43410-12172¥74,200

sub90178-22001¥310

main43410-12200iAE92..LHD..GTI¥85,800198908-199101

W(*66)

sub43410-12201¥82,600

sub43525-20030¥300

sub90179-22020¥310

main43410-12201iAE92..LHD..GTI¥82,600199101-199211

W(*66)

sub43410-12202¥74,100

sub90178-22001¥310

main43410-20340iCE90¥80,500199009-199101

sub43410-20341¥82,900

sub43525-20030¥300

sub90179-22020¥310

main43410-20341iCE90¥82,900199101-199206

sub43410-20342¥82,700

sub90178-22001¥310

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAE92,EE90¥100198705-199211

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iCE90¥700198705-199211

main90949-01078iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥80198705-199206

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iCE90¥380198705-199211

sub42345-12160¥300

main90949-01080iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥300198705-199206

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iAE92,CE90..DSL,EFI¥700198705-199009

main90949-01078iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI¥80198705-199211

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iCE90¥630198705-199009

main90949-01076iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥380198705-199211

sub42345-12160¥300

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19275iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥46,400198705-199101

sub43460-19276¥50,400

sub43525-20030¥300

sub90179-22020¥310

main43460-19276iAE92,EE90..GL,GLI,SR5,STD,XL,XLI¥50,400199101-199206

sub43460-19277¥50,400

sub90178-22001¥310

main43460-19285iCE90¥45,100198705-199009

sub43460-19286¥49,800

sub43525-20030¥300

sub90179-22020¥310

main43460-19305iAE92..GTI¥52,500198709-199101

sub43460-19306¥51,200

sub43525-20030¥300

sub90179-22020¥310

main43460-19306iAE92..GTI¥51,200199101-199211

sub43460-19309¥51,200

sub90178-22001¥310

main43460-19355iAE92..LHD..GTI¥46,000198908-199101

W(*66)

sub43460-19356¥51,200

sub43525-20030¥300

sub90179-22020¥310

main43460-19356iAE92..LHD..GTI¥51,200199101-199211

W(*66)

sub43460-19357¥51,200

sub90178-22001¥310

main43460-29145iCE90¥50,600199009-199101

sub43460-29146¥51,100

sub43525-20030¥300

sub90179-22020¥310

main43460-29146iCE90¥51,100199101-199206

sub43460-29147¥49,100

43474DAMPER, DRIVE SHAFT

main43474-12020iAE92,CE90,EE90¥4,940198705-199211

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE92,CE90,EE90¥700198705-199211

15 parts on this diagram · 6 diagrams in section
