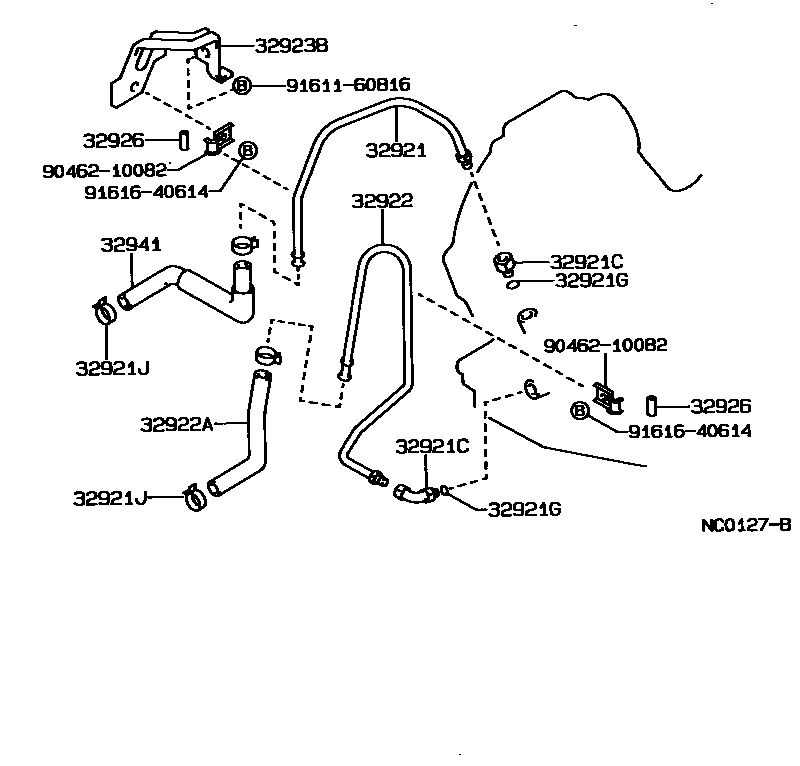

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-12370iEE90..3FC¥1,150198705-198910

main32921-12371iEE90..3FC¥980198910-199206

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iEE90..3FC¥500198705-199206

INLET

main90407-14003iEE90..3FC¥1,720198705-199206

OUTLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iEE90..3FC¥170198705-199206

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iEE90..3FC¥100198705-199206

sub96135-51300¥120

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12200iEE90..3FC¥1,150198705-198910

main32922-12201iEE90..3FC¥980198910-199206

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15034iEE90..3FC¥680198705-198910

sub90445-15050¥540

main90445-15050iEE90..3FC¥540198910-199206

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-12110iEE90..3FC¥810198705-199206

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iEE90..3FC¥200198705-199206

L=25,ID=8

32941HOSE, OIL COOLER INLET, NO.1

main32941-12130iEE90..3FC¥2,420198705-198910

sub32941-12131¥2,420

main32941-12131iEE90..3FC¥2,420198910-199206

9046210082

main90462-10082¥80

9161160816

main91611-60816¥230

9161640614

main91616-40614¥170

12 parts on this diagram · 1 diagram in section
