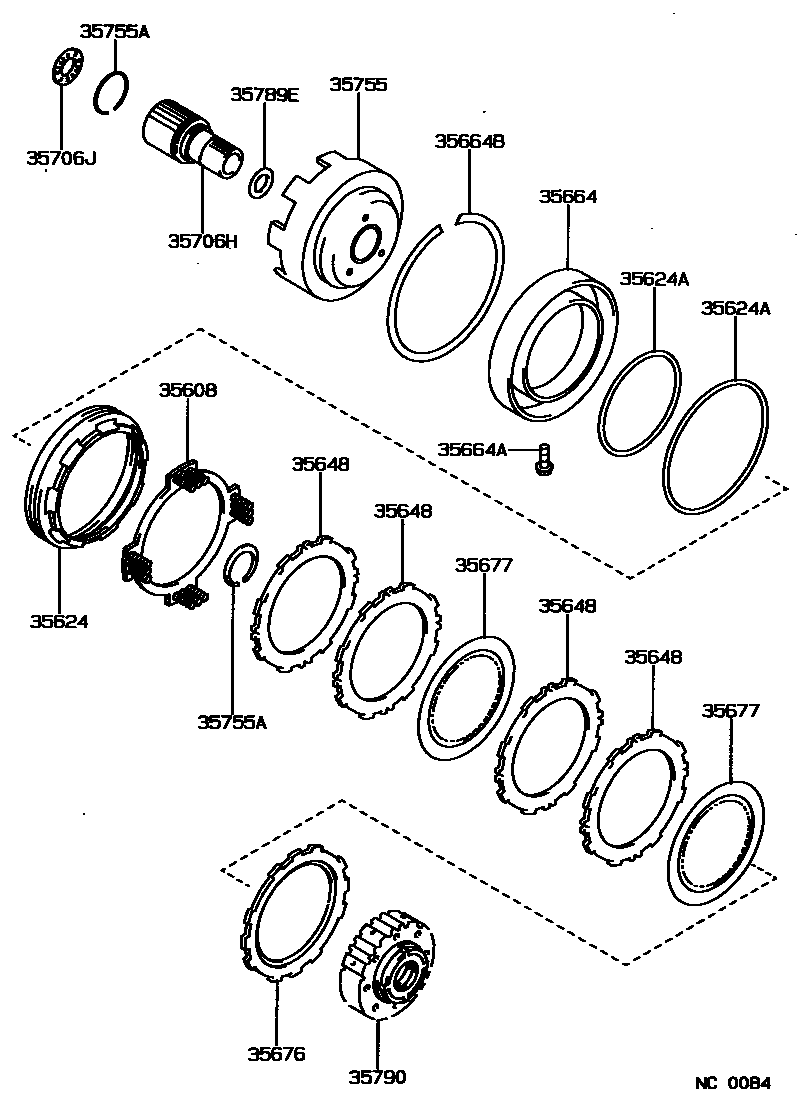

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iEE90..3FC198705-199206

35624PISTON, 2ND BRAKE

main35624-32010iEE90..3FC198705-199206

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iEE90..3FC198705-199206

INNER

main90301-99023iEE90..3FC198705-199206

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iEE90..3FC198705-199206

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iEE90..3FC198705-199206

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iEE90..3FC198705-199206

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iEE90..3FC198705-199206

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iEE90..3FC198705-199206

T=3.5

sub35676-12030

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-30040iEE90..3FC198705-199206

sub35677-43010

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-32012iEE90..3FC198705-198907

sub35706-32030

main35706-32030iEE90..3FC198907-199210

sub35706-12010

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iEE90..3FC198705-199206

35755DRUM, SUN GEAR INPUT

main35755-32020iEE90..3FC198705-199206

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iEE90..3FC198908-199206

T=1.2,ID=44.0,T=1.2,ID=44.0

main90520-44002iEE90..3FC198705-198908

T=1.2,ID=44.0,T=1.2, ID=44.0

main90520-47003iEE90..3FC198705-198908

T=2.3,ID=47.1,WD=2.3, ID=47.1

main90520-47003iEE90..3FC198908-199206

T=2.3,ID=47.1,T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iEE90..3FC198705-199206

35790CLUTCH ASSY, 1 WAY

main35790-32020iEE90..3FC198705-198909

sub35790-32050

main35790-32050iEE90..3FC198909-199206

15 parts on this diagram · 1 diagram in section
