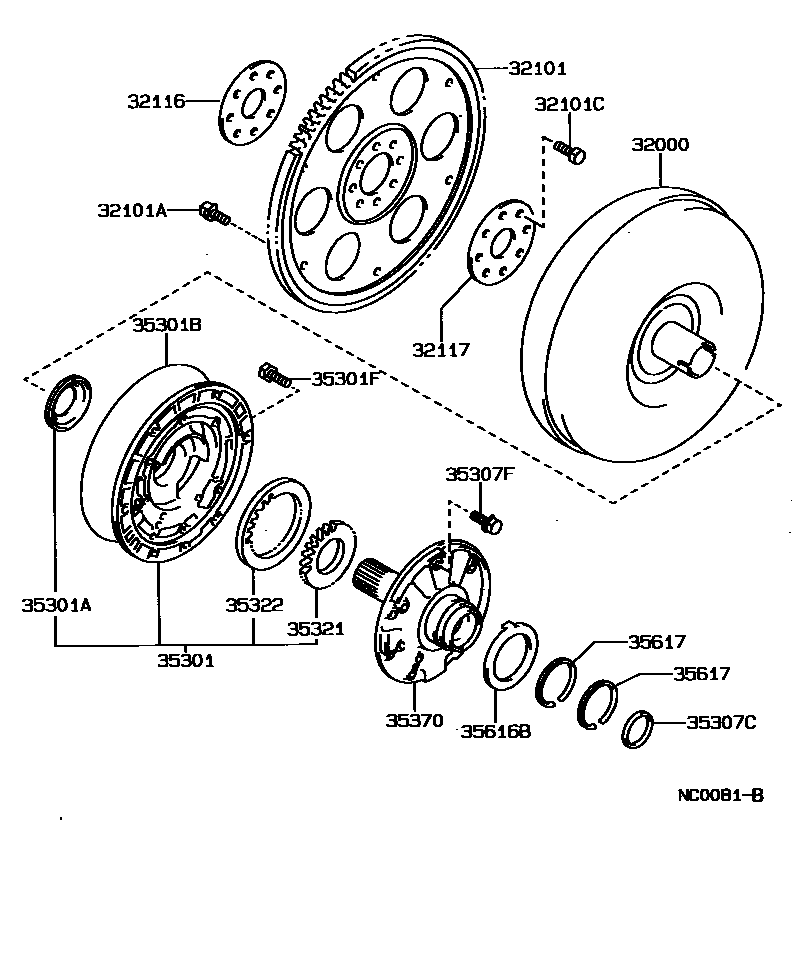

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12140iEE90..3FC¥135,000198705-198802

sub32000-12141¥141,000

main32000-12141iEE90..3FC¥141,000198802-198908

main32000-16070iEE90..3FC¥124,000198908-199206

sub32000-16071¥124,000

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-10021iEE90..3FC¥18,900198705-199206

sub32101-10022¥18,900

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iEE90..3FC¥80198705-199206

*8-1.25PX12-8.4

main90119-08498iEE90..3FC¥80198705-199206

*8-1.25PX12-8

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iEE90..3FC¥130198705-199206

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-10020iEE90..3FC¥480198705-199206

32117SPACER, DRIVE PLATE, REAR

main32117-10010iEE90..3FC¥410198705-199206

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iEE90..3FC¥26,400198705-199206

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iEE90..3FC¥540198705-199206

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iEE90..3FC¥2,050198705-199206

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iEE90..3FC¥200198705-199206

*8-1.25PX28-28

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iEE90..3FC¥700198705-199206

T=0.8

main35789-32030iEE90..3FC¥740198705-199206

T=1.4

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iEE90..3FC¥80198705-199206

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070iEE90..3FC¥3,720199108-199206

T=9.440-9.449

main35321-12080iEE90..3FC¥3,720199108-199206

T=9.450-9.459

main35321-12090iEE90..3FC¥3,720199108-199206

T=9.460-9.470

main35321-32040iEE90..3FC¥3,880198705-199108

T=9.440-9.456

sub35321-12070¥3,720

main35321-32050iEE90..3FC¥3,880198705-199108

T=9.456-9.474

sub35321-12090¥3,720

main35321-32060iEE90..3FC¥3,880198705-199108

T=9.474-9.490

sub35321-12110¥3,720

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iEE90..3FC¥3,980199108-199206

T=9.440-9.449

main35322-12070iEE90..3FC¥3,980199108-199206

T=9.450-9.459

main35322-12080iEE90..3FC¥3,980199108-199206

T=9.460-9.470

main35322-32040iEE90..3FC¥4,160198705-199108

T=9.440-9.456

sub35322-12060¥3,980

main35322-32050iEE90..3FC¥4,160198705-199108

T=9.456-9.474

sub35322-12080¥3,980

main35322-32060iEE90..3FC¥4,160198705-199108

T=9.474-9.490

sub35322-12100¥3,980

35370SHAFT ASSY, STATOR

main35370-12040iEE90..3FC¥24,300199001-199206

main35370-32022iEE90..3FC¥27,000198705-199001

sub35370-20H00¥18,100

sub35370-32H01¥19,400

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iEE90..3FC¥2,070198705-199206

35617RING, CLUTCH DRUM OIL SEAL

main35617-32010iEE90..3FC¥1,400198705-198708

main35617-32011iEE90..3FC¥1,520198708-199206

17 parts on this diagram · 1 diagram in section
