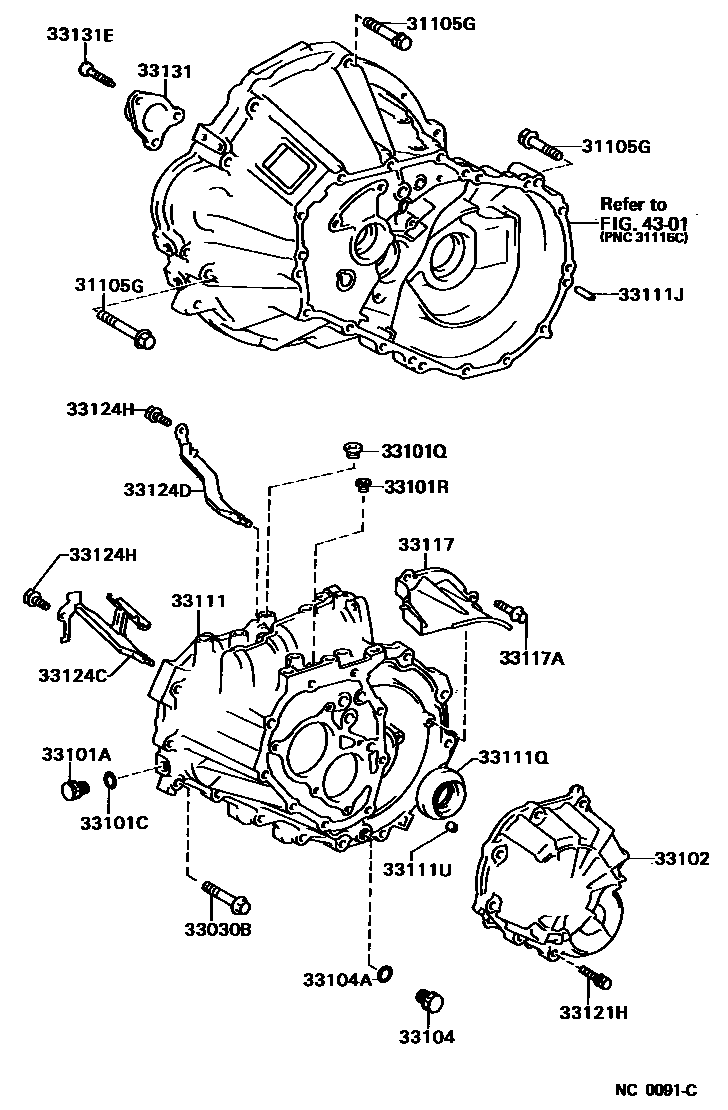

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C52,C140,C150 0002 1S50

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCE90198705-199206

*8-1.25PX18-15

sub91641-H0820

main90105-10077iAE92,CE90198705-199211

*10-1.25PX43-26

main90105-10097iEE90..MTM198705-199206

*10-1.25PX60-22

main90119-12042iAE92198705-199211

*12-1.25PX75-30

main90119-12168iCE90198705-199211

*12-1.25PX55-30

main91611-61025iAE92198705-199211

*10-1.25PX25-25

sub91612-61025

main91619-61260iEE90..MTM198705-199206

*12-1.25PX60-30

main91621-60614iEE90..MTM198705-199206

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCE90198705-199206

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iAE92198705-199211

*8-1.25PX51-28

sub90105-08353

main90105-08086iEE90..LHD..3D..5F198705-199211

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCE90198705-199003

main90341-18006iEE90..LHD..5D..MTM..CBR198705-199211

main90341-18033iCE90199003-199206

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEE90..LHD..5D..MTM..CBR198705-199211

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iEE90198705-199206

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90341-10065iEE90198705-199206

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10010iEE90..4F198705-199105

sub33102-10011

main33102-10011iEE90..4F199105-199208

sub33102-10012

main33102-10020iEE90..LHD..3D..5F198705-199105

sub33102-10022

main33102-10021iEE90..5F199105-199208

sub33102-10022

main33102-12020iAE92198705-199105

sub33102-12021

main33102-12021iAE92199105-199211

main33102-32011iCE90198705-199004

sub33102-32012

main33102-32012iCE90199004-199205

main33102-33020iCE90199205-199206

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iEE90..3D..4F198705-199211

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE92,CE90198705-199211

33111CASE, MANUAL TRANSMISSION

main33111-10071iEE90..LHD..3D..5F198705-199107

sub33111-16050

sub33124-10021

main33111-10072iEE90..MTM199107-199206

main33111-16040iAE92198705-199107

sub33111-16070

sub90109-12073

main33111-16041iAE92199107-199211

main33111-20140iCE90198906-198910

sub33111-20141

main33111-20141iCE90198910-199102

sub33111-33020

main33111-32014iCE90198705-198906

sub33111-20140

main33111-33020iCE90199102-199205

sub33111-33030

sub33124-32020

sub33214-33020

sub33261-33010

sub90384-14005

sub90384-15002

main33111-33030iCE90199205-199206

sub33111-33040

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iEE90..LHD..5D..MTM..CBR198705-199211

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iEE90..3D..4F198705-199108

sub90311-34017

main90311-34017iEE90..4F..EFI199108-199211

sub90311-34028

main90311-34018iAE92;EE90..5F..EFI;EE90..MTM..CBR199108-199202

sub90311-34017

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE92198705-199211

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAE92,EE90..MTM..CBR198705-199011

sub33117-16010

main33117-16010iAE92,EE90..MTM199011-199211

main33117-17010iAE92..GTI198705-199011

sub33117-16010

main33117-32011iCE90198705-199206

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAE92,CE90,EE90..MTM198705-199211

sub91641-H0820

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iCE90198705-199011

sub90105-08273

main90105-08273iCE90199011-199206

main90119-08494iEE90..3D..4F198705-199206

sub90119-08373

main91611-60835iAE92198705-199211

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010iEE90..LHD..5D..MTM..CBR198705-199206

main33124-12010iAE92198705-199211

main33124-32011iCE90198705-199004

main33124-32012iCE90199004-199205

main33124-33010iCE90199205-199206

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10020iEE90..MTM198705-199206

main33124-12020iAE92198705-199211

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iEE90..4F198705-199211

sub91611-G0820

main91651-60618iCE90198705-199206

33131RETAINER, BEARING, FRONT(MTM)

main33131-12070iAE92198705-198708

sub33131-12071

main33131-12071iAE92198708-199211

sub33131-12080

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE92198705-199211

4301

22 parts on this diagram · 2 diagrams in section
