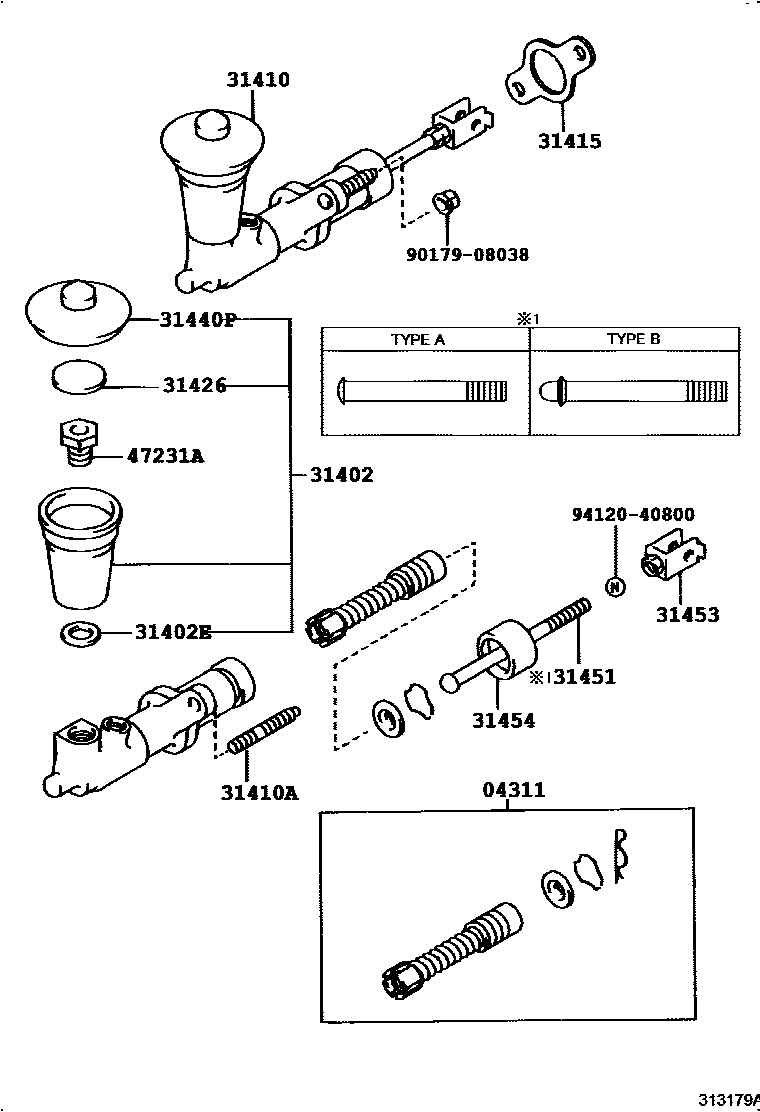

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iAE92,CE90,EE90..MTM198905-199205

sub04311-12080

main04311-12080iAE92,CE90,EE90..MTM199205-199211

main04311-22022iAE92,CE90,EE90..MTM198705-198806

PNC 31451=TYPE A

sub04311-22050

main04311-32030iAE92,CE90,EE90..MTM198806-198905

PNC 31451=TYPE B

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12020iAE92,CE90,EE90..MTM198705-198905

main31402-12030iAE92,EE90..RHD..5F198905-199206

main31402-12040iAE92,EE90..LHD..MTM198905-199211

sub31402-12050

main31402-12050iCE90..LHD198905-199206

main31402-12060iCE90..RHD198905-199205

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iAE92,CE90,EE90..MTM198705-198905

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12190iAE92,EE90..RHD..5F198705-198806

sub31410-16023

main31410-12191iAE92,EE90..RHD..5F198806-198905

sub31410-16023

main31410-12200iAE92,EE90..LHD..MTM198705-198806

sub31410-12221

main31410-12201iAE92,EE90..LHD..MTM198806-198905

sub31410-12221

main31410-12210iCE90..RHD198705-198806

sub31410-16023

main31410-12211iCE90..RHD198806-198905

sub31410-20441

main31410-12220iCE90..LHD198705-198806

sub31410-12221

main31410-12221iCE90..LHD198806-198905

main31410-12290iCE90..RHD198905-199205

sub31410-12312

main31410-12320iAE92,EE90..RHD..5F198905-199206

sub31410-12312

main31410-12330iAE92,EE90..LHD..MTM198905-198908

sub31410-12370

main31410-12340iCE90..LHD198905-199206

sub31410-12380

main31410-12350iAE92,EE90..LHD..MTM198908-199211

sub31410-12380

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE92,CE90,EE90..MTM198705-199211

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iAE92,CE90,EE90..LHD..MTM198706-199211

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAE92,CE90,EE90..LHD..MTM198905-199211

main31426-30011iAE92,CE90,EE90..RHD..5F198705-199206

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE92,CE90,EE90..MTM198705-199211

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12050iAE92,EE90..MTM198806-198905

TYPE B:REFER ILLUST.

main31451-12070iCE90198806-198905

main31451-22070iCE90..RHD198705-198806

main31451-30120iAE92,EE90..MTM198705-198806

TYPE A:REFER ILLUST.

main31451-35060iCE90..LHD198705-198806

main31451-35070iAE92,EE90..LHD..MTM198905-198908

main31451-35080iCE90;AE92,EE90..RHD..5F198905-199211

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12011iCE90..LHD198904-199206

sub31404-35030

main31404-12020iAE92,EE90..MTM198905-199211

main31404-16011iCE90198705-198904

sub31404-16012

main31404-16012iCE90..RHD198904-198905

sub31404-22020

main31453-10020iAE92,EE90..MTM198705-198908

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAE92,CE90,EE90..LHD..MTM198705-198908

main31454-16010iAE92,CE90,EE90..MTM199204-199211

main31454-24010iAE92,CE90,EE90..MTM198705-199204

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iAE92,CE90,EE90..MTM198705-198905

9017908038

main90179-08038

9412040800

main94120-40800

14 parts on this diagram · 3 diagrams in section
