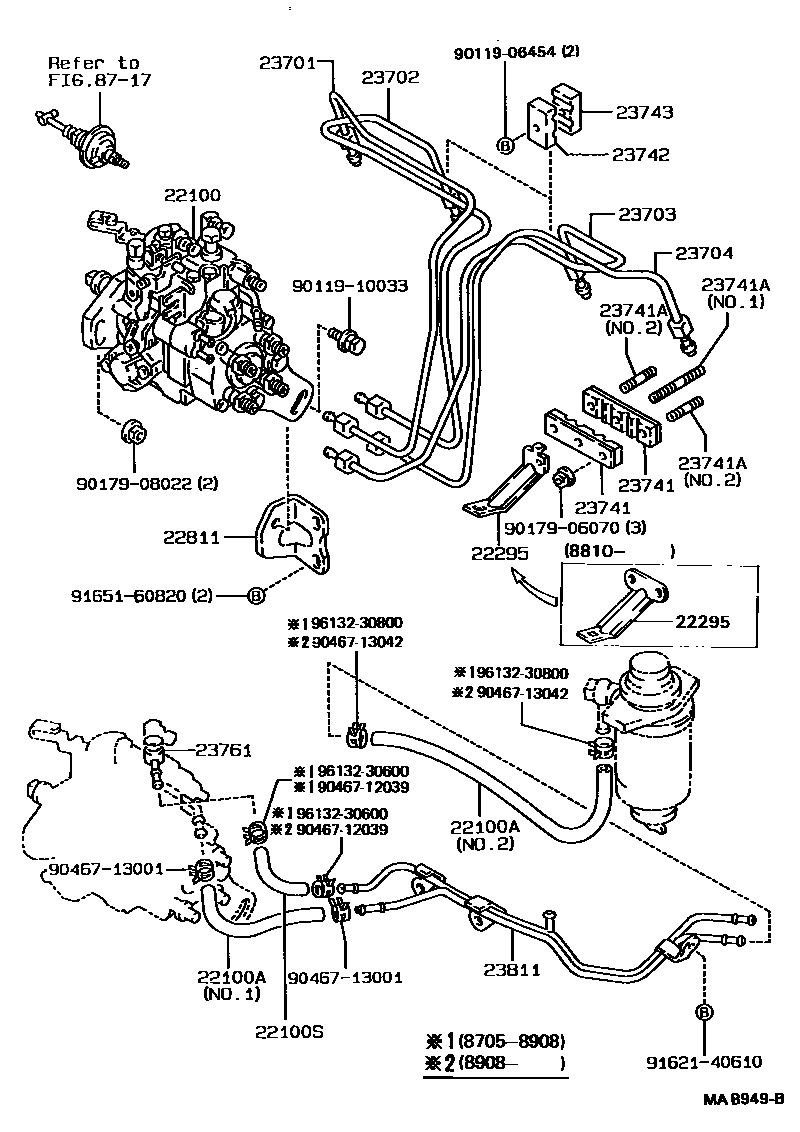

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6A330i1C..CE90198705-198908

main22100-6A340i1C..CE90..LHD198705-198908

COLD SPEC

sub22100-6A330

sub88031-30070

main22100-6A350i1C..CE90..LHD..XL198705-198908

COLD SPEC & W(POWER STEERING)

sub22100-6A330

sub88031-30070

main22100-6A770i1C..CE90198908-199206

sub22100-6A780

main22100-6A780i1C..CE90..XL198908-199206

W(POWER STEERING)

main22100-6A790i1C..CE90..LHD198908-199206

COLD SPEC

sub22100-6A800

main22100-6A800i1C..CE90..LHD..XL198908-199206

W(POWER STEERING) & COLD SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-64100i1C..CE90..LHD198705-198709

NO.2

main23271-64140i1C..CE90..LHD198709-199206

NO.2

main23271-64150i1C..CE90..RHD198802-199205

NO.2

main23273-64030i1C..CE90198705-199206

NO.1

main95333-08030i1C..CE90..RHD198705-198802

L=240,NO.2

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main95333-06020i1C..CE90198705-199206

sub95337-06020

22295BRACKET, INJECTION PUMP CONNECTOR

main22295-64010i1C..CE90198705-198810

sub22295-64011

main22295-64011i1C..CE90198810-199206

22811STAY, INJECTION PUMP, NO.1

main22811-64010i1C..CE90198705-199206

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64050i1C..CE90198809-199206

main23701-64060i1C..CE90198705-198809

sub23701-64050

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64050i1C..CE90198809-199206

main23702-64060i1C..CE90198705-198809

sub23702-64050

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64050i1C..CE90198810-199206

main23703-64060i1C..CE90198705-198809

sub23703-64050

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64050i1C..CE90198810-199206

main23704-64060i1C..CE90198705-198809

sub23704-64050

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i1C..CE90198705-199206

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i1C..CE90198705-199206

NO.1

sub90116-06095

main92122-60622i1C..CE90198705-199206

NO.2

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i1C..CE90198705-199206

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i1C..CE90198705-199206

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64030i1C..CE90198705-199206

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64040i1C..CE90198705-199206

8717

9011906454

main90119-06454

9011910033

main90119-10033

9017906070

main90179-06070

9017908022

main90179-08022

9046712039

main90467-12039

9046713001

main90467-13001

9046713042

main90467-13042

9162140610

main91621-40610

9165160820

main91651-60820

9613230600

main96132-30600

9613230800

main96132-30800

27 parts on this diagram · 1 diagram in section
