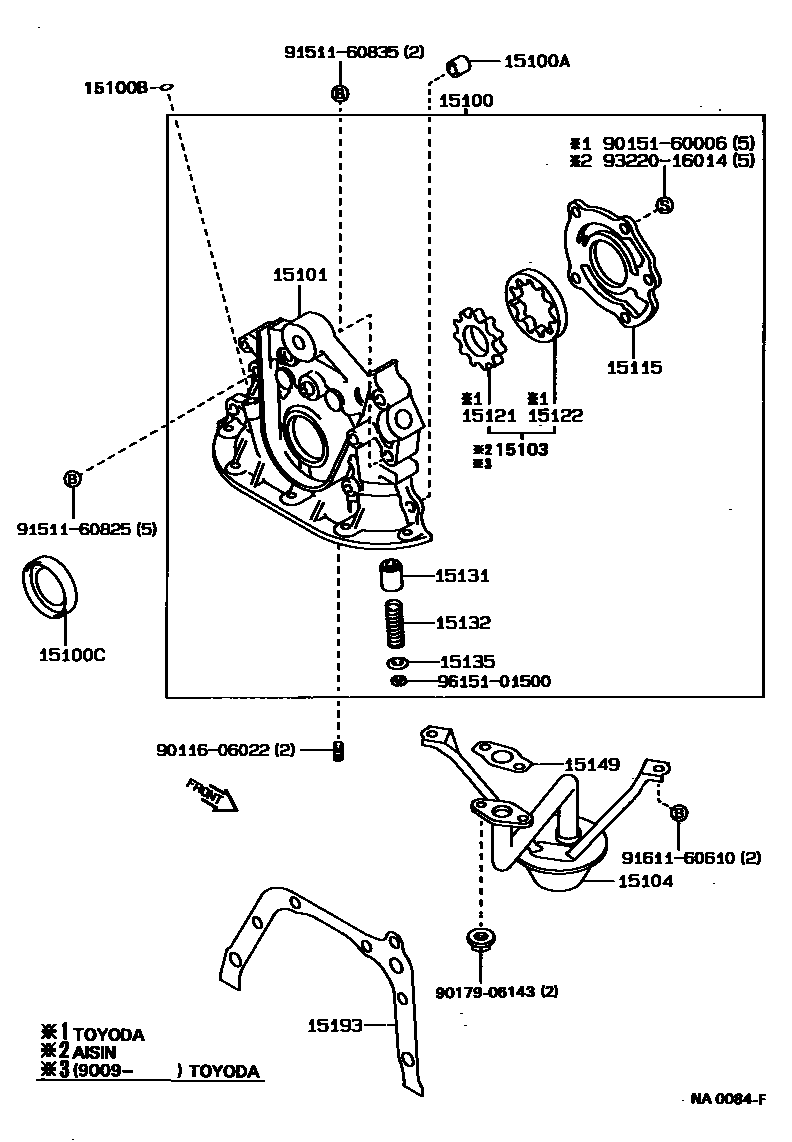

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

15100PUMP ASSY, OIL

main15100-11050i2E#..EE90198705-199206

main15100-15050i4AF#..AE92198705-199206

main15100-19025i4AGE..AE92198705-198908

sub15100-19026

main15100-19035i4AGE..AE92198908-198912

main15100-19036i4AGE..AE92198912-199211

main15100-64011i1C..CE90198705-198808

main15100-64012i1C..CE90198808-198905

main15100-64030i1C..CE90198905-199206

sub15100-64031

sub90119-08B81

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i2E#..EE90198908-198912

main90253-11021×2i1C..CE90198705-199211

15100BRING, O(FOR OIL PUMP)

main90301-55005i2E#..EE90198907-199206

main96711-19010i4AF#..AE92198705-199105

main96721-19010i4AF#..AE92199105-199206

main96721-24056i2E..EE90198705-198907

15100CSEAL(FOR OIL PUMP)

main90029-21007i2E#..EE90198908-199206

sub90029-21020

main90029-21014i1C..CE90198908-199109

main90029-21022i1C..CE90199109-199206

sub04151-64020

main90311-32001i4AF#,4AGE..AE92198908-198911

main90311-32018i4AF#,4AGE..AE92198911-199211

sub90311-32020

15101BODY SUB-ASSY, OIL PUMP

main15011-15050i4AF#..AE92198705-199206

AISIN

main15101-15040i4AF#..AE92198705-199206

TOYODA KOUKI

main15101-64011i1C..CE90198705-198808

sub15100-64040

main15101-64012i1C..CE90198808-198908

sub15100-64040

main15101-64030i1C..CE90198908-199206

sub15100-64031

sub15100-64042

sub90119-08B81

15103GEAR SET, OIL PUMP

main15103-15020i4AF..AE92198705-198908

main15103-15H00i4AF#..AE92199009-199206

TOYODA KOUKI

main15103-16030i4AGE..AE92198908-199211

15104STRAINER SUB-ASSY, OIL

main15104-11040i2E#..EE90198707-199206

main15104-15080i4A#..AE92198705-198908

main15104-15090i4AF#,4AGE..AE92199201-199211

main15104-64021i1C..CE90198705-199112

main15104-64060i1C..CE90199112-199206

sub15104-64070

15115COVER, OIL PUMP

main15115-15020i4AF#..AE92198705-199211

AISIN

main15115-15030i4AF#..AE92198705-199206

TOYODA KOUKI

sub15115-16060

main15115-16010i4AGE..AE92198705-198908

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AF#..AE92198705-199206

main15121-16010i4AGE..AE92198705-198908

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AF#..AE92198705-199206

main15122-16010i4AGE..AE92198705-198908

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AF#..AE92198705-199206

TOYODA KOUKI

main15131-24010i4AGE..AE92198705-199211

AISIN

main15131-64020i1C..CE90198705-199206

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AF#..AE92198705-199206

TOYODA KOUKI

main15132-40010i4AGE..AE92198705-199211

AISIN

main15132-64012i1C..CE90198808-199206

main15132-76011i1C..CE90198705-198808

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AGE..AE92198705-199211

AISIN

main15135-15030i4AF#..AE92198705-199206

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4A#..AE92198705-198908

main15149-15011i4AF#,4AGE..AE92198912-199106

main15149-16010i4AF#,4AGE..AE92199205-199211

15193GASKET, OIL PUMP

main15193-64021i1C..CE90198705-199206

sub15193-64022

main15197-15011i4AF#,4AGE..AE92198705-198912

main15197-15012i4AF#,4AGE..AE92198912-199211

sub15197-15030

9011606022

main90116-06022

9015160006

main90151-60006

9017906143

main90179-06143

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9322016014

main93220-16014

9615101500

main96151-01500

23 parts on this diagram · 5 diagrams in section
