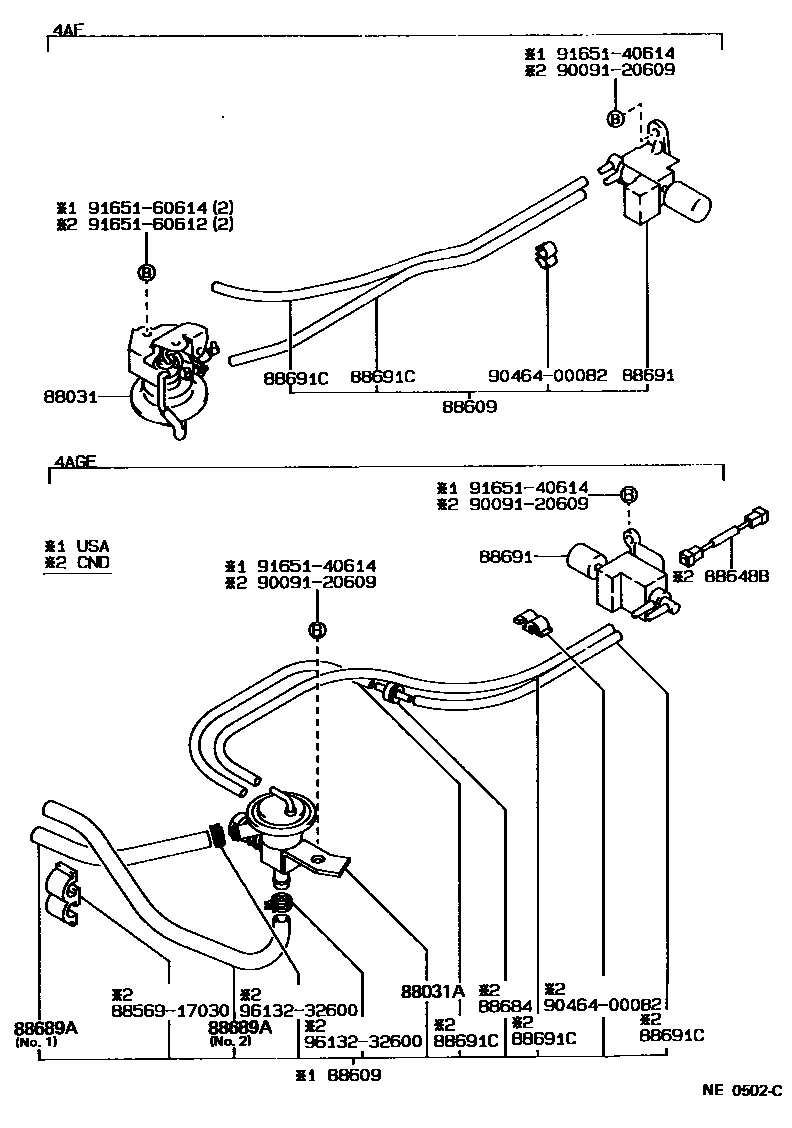

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-12140iAE92..CBR198708-198908

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main88606-12020iAE92..GTS198708-199106

main88606-12040iAE92..GTS..CND198908-199106

main88606-12050iAE92..DX,SR5198908-199106

88609DEVICE SUB-ASSY, IDLE UP

main88609-12481iAE92..USA..EFI198708-198712

sub88609-12482

main88609-12482iAE92..GTS..USA198712-199106

main88609-12540iAE92..DX,SR5198908-199106

88648BWIRING, COOLER, NO.1

main88648-12420iAE92..GTS..CND198708-199106

88684VALVE, VACUUM

main88684-22010iAE92..GTS..CND198801-199106

88689AHOSE, COOLER VACUUM NO.1

main88689-12230iAE92..EFI198708-198801

NO.1

main88689-12231iAE92..USA..EFI198712-199106

NO.1

main88689-12240iAE92..EFI198708-198801

NO.2

main88689-12241iAE92..GTS198712-199106

NO.2

main88689-12310iAE92..DX,SR5198908-199106

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-12430iAE92..CBR198708-198908

main88690-12540iAE92..GTS..USA198708-199106

main88690-12740iAE92..ATM198807-198908

main88690-12750iAE92..(DX,SR5)..USA198908-199106

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002iAE92..GTS..CND198708-199106

L=300

main95411-10030iAE92..CBR198708-198908

L=300,MARK=#0

sub90999-92002

main95411-10039iAE92..ATM198807-198908

*H,L=390,MARK=#0

main95411-19926iAE92..CBR198708-198908

*H,L=260,MARK=#*

8856917030CLAMP (FOR COOLER RELAY)

main88569-17030

9009120609

main90091-20609

9046400082

main90464-00082

9165140614

main91651-40614

9165160612

main91651-60612

9165160614

main91651-60614

9613232600

main96132-32600

15 parts on this diagram · 2 diagrams in section
