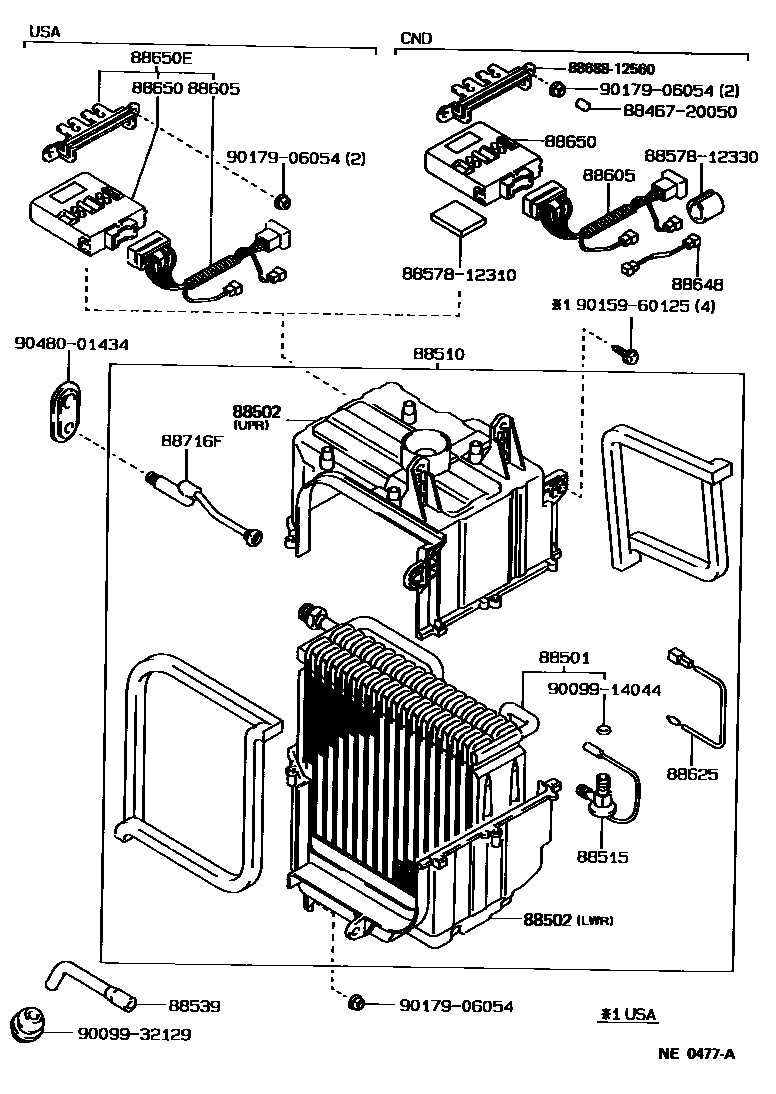

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12350iAE92198708-199106

88502CASE SUB-ASSY, COOLING UNIT

main88502-12120iAE92..CND198708-199106

UPR

main88502-12130iAE92..CND198708-199106

LWR

88510UNIT ASSY, COOLER

main88510-12770iAE92..USA198708-199106

main88510-12800iAE92..CND198708-199106

88515VALVE, COOLER EXPANSION

main88515-16040iAE92¥7,100198708-199106

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12100iAE92198708-199106

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1A270iAE92..CBR198708-198908

main88605-1A310iAE92..EFI198708-198908

main88605-1A330iAE92..EFI198708-198908

W(POWER STEERING)

main88605-1A331iAE92..GTS198908-199106

main88605-1E170iAE92..USA..CBR;AE92..4FC..CND198807-198908

main88605-1E180iAE92..(DX,SR5)..USA198908-199106

main88605-1E300iAE92..SR5..CND198908-199106

88625THERMISTOR, COOLER, NO.1

main88625-12230iAE92..USA199009-199106

main88625-32040iAE92198708-199106

88648WIRING, COOLER, NO.1

main88648-12340iAE92..CND198708-199106

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-12670iAE92..CBR198708-198807

main88650-12690iAE92..EFI198708-198908

main88650-12691iAE92..DX,SR5198908-199106

main88650-12700iAE92..EFI198708-198908

W(POWER STEERING)

main88650-12730iAE92..CBR198807-198908

main88650-1A320iAE92..GTS198908-199106

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-12460iAE92..USA..CBR198708-198807

sub88650-12461

main88650-12461iAE92..USA..CBR198807-198908

main88650-12500iAE92..USA..EFI198708-198908

main88650-12501iAE92..(DX,SR5)..USA198908-199106

main88650-12520iAE92..USA..EFI198708-198908

W(POWER STEERING)

sub88650-12521

main88650-12521iAE92..GTS..USA198908-199106

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88726-12310iAE92198708-199106

8846720050CUSHION, COOLER CONDENSER, NO.1

main88467-20050

8857812310PAKING, COOLER AIR DUCT

main88578-12310

8857812330PAKING, COOLER AIR DUCT

main88578-12330

8868812560BRACKET, COOLER DIAPHRAGM

main88688-12560

9009914044

main90099-14044

9009932129

main90099-32129

9015960125

main90159-60125¥120

9017906054

main90179-06054¥100

9048001434

main90480-01434

20 parts on this diagram · 1 diagram in section
