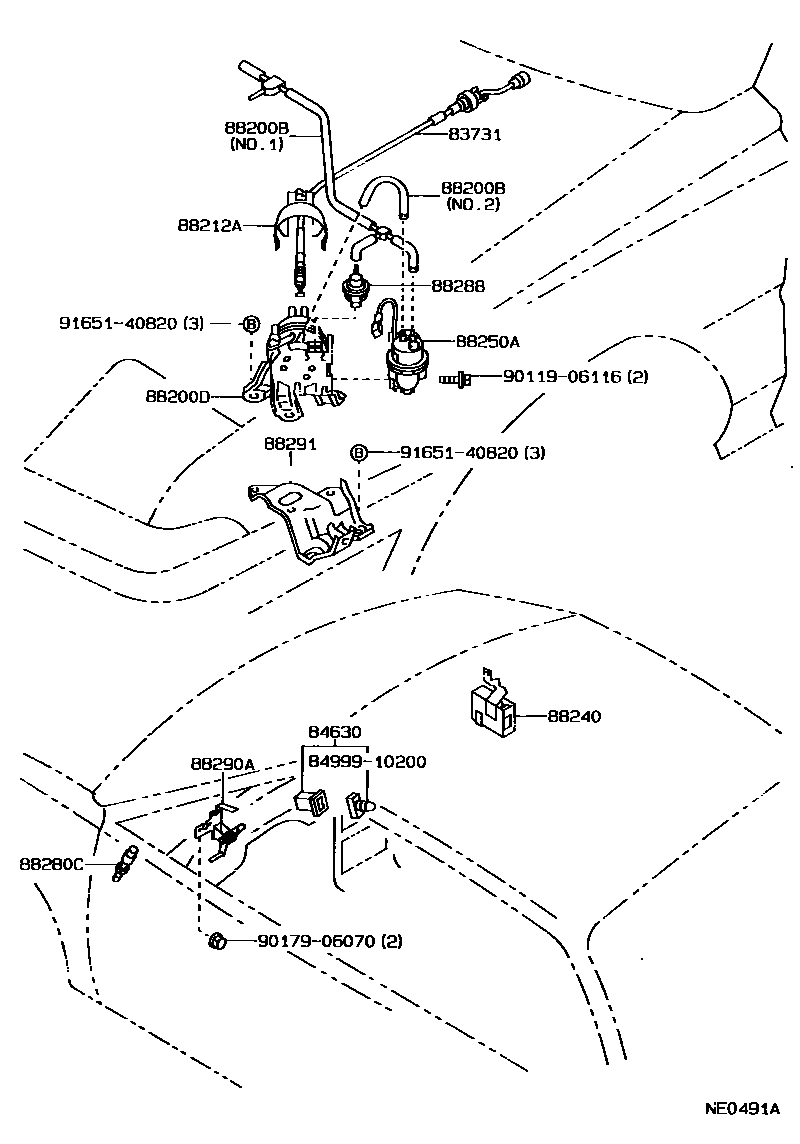

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1 0004 1

83731CABLE, CRUISE CONTROL

main83731-12020iAE92..CBR198708-198908

main83731-12030iAE92..EFI198708-199106

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-12050iAE92198708-199106

main84630-12120iAE92..CND198908-199008

sub84630-12050

88200BHOSE, CRUISE CONTROL VACUUM

main88283-12090iAE92..CBR198708-198908

NO.1

main88283-12100iAE92..EFI198708-199106

main90999-92002iAE92..CBR198708-198908

*H,L=300,MARK=#*,NO.2

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-12070iAE92..EFI198708-198804

sub88200-12071

main88200-12071iAE92..EFI198804-199106

main88200-12080iAE92..CBR198708-198804

sub88200-12081

main88200-12081iAE92..CBR198804-198908

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-12070iAE92198708-199106

88240COMPUTER ASSY, CRUISE CONTROL

main88240-12150iAE92198708-199106

88250APUMP ASSY, CRUISE CONTROL

main88251-12090iAE92..EFI198708-199106

main88251-12100iAE92..CBR198708-198908

88280CSWITCH ASSY, CLUTCH

main88280-12030iAE92..5F..CBR;AE92..USA..EFI198708-199106

88288SWITCH, VACUUM SPEED CONTROL

main88288-12010iAE92198708-199106

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-12020iAE92198708-199106

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-12080iAE92..EFI198708-199106

NO.1

main88291-12090iAE92..CBR198708-198908

main88291-12100iAE92..EFI198708-199106

NO.2

8499910200SWITCH ASSY, GOVERNOR CONTROL

main84999-10200

9011906116

main90119-06116

9017906070

main90179-06070

9165140820

main91651-40820

15 parts on this diagram · 4 diagrams in section
