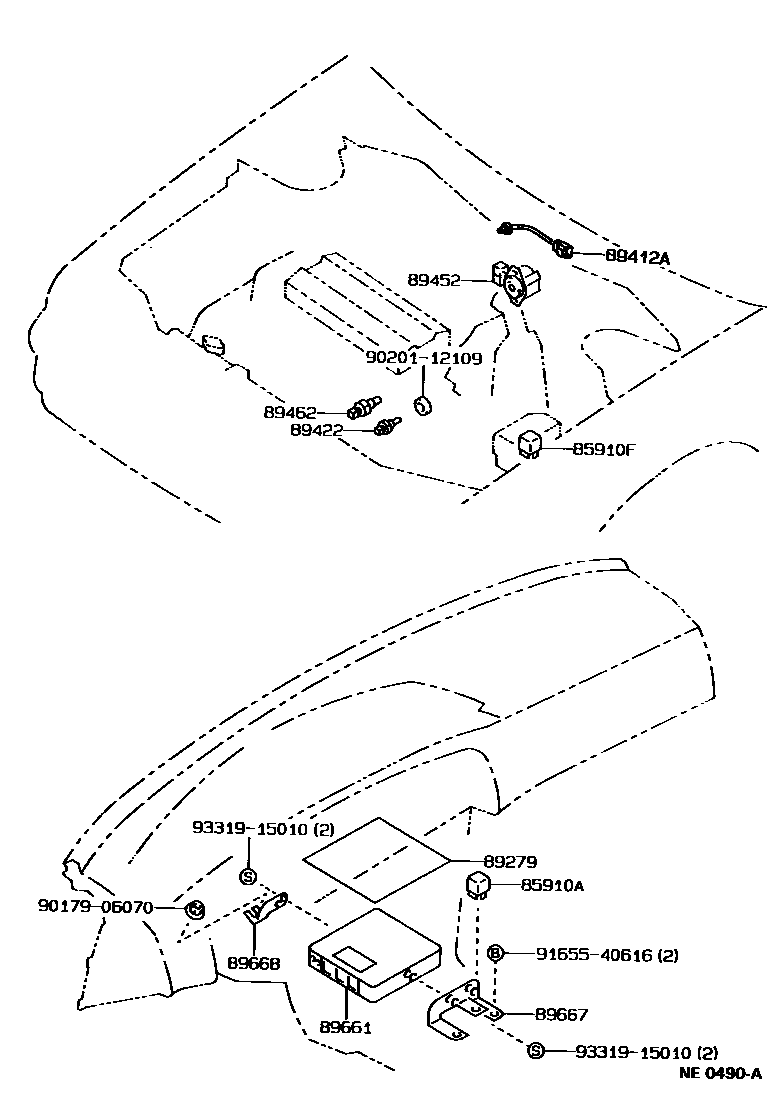

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iAE92..DX,SR5198908-199106

main85910-30050iAE92..GTS198708-199106

85910FRELAY, COMPUTER (FOR EFI)

main90987-02006iAE92..EFI198708-199106

89279COVER, ENGINE CONTROL COMPUTER

main89279-12020iAE92..EFI198708-199106

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iAE92..GTS..USA198908-199106

CALIFORNIA SPEC

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-12010iAE92..EFI198708-198808

main89422-20010iAE92..EFI198808-199106

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iAE92..EFI198708-198903

main89452-12050iAE92..GTS198903-199106

sub89452-33010

main89452-14020iAE92..ATM198908-199011

main89452-22010iAE92..ATM199011-199106

main89452-32020iAE92..5F..(DX,SR5)198908-199106

89462SWITCH, START INJECTOR TIME

main89462-12010iAE92..EFI198708-198808

main89462-20030iAE92..EFI198808-199106

89661COMPUTER, ENGINE CONTROL

main89661-12210iAE92..EFI198708-198808

main89661-12240iAE92..USA..EFI198708-198808

CALIFORNIA SPEC

main89661-12320iAE92..EFI198808-198908

main89661-12410iAE92..USA..EFI198808-198908

CALIFORNIA SPEC

main89661-12490iAE92..(3FC,5F)..(DX,SR5)198908-199008

main89661-12491iAE92..(3FC,5F)..(DX,SR5)199008-199106

main89661-12500iAE92..4FC198908-199008

main89661-12501iAE92..4FC199008-199106

main89661-12510iAE92..(3FC,5F)..(DX,SR5)..USA198908-199008

CALIFORNIA SPEC

main89661-12511iAE92..(3FC,5F)..(DX,SR5)..USA199008-199106

CALIFORNIA SPEC

main89661-12520iAE92..4FC..USA198908-199008

CALIFORNIA SPEC

main89661-12521iAE92..4FC..USA199008-199106

CALIFORNIA SPEC

main89661-12580iAE92..GTS198908-199002

main89661-12581iAE92..GTS199002-199106

sub89661-12582

main89661-12600iAE92..GTS..USA198908-199002

CALIFORNIA SPEC

main89661-12601iAE92..GTS..USA199002-199106

CALIFORNIA SPEC

sub89661-12602

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12020iAE92..EFI198708-199106

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12030iAE92..GTS198908-199106

main89668-12040iAE92..EFI198708-199106

9017906070

main90179-06070

9020112109

main90201-12109

9165540616

main91655-40616

9331915010

main93319-15010

14 parts on this diagram · 2 diagrams in section
