HEADLAMP
81110HEADLAMP ASSY, RH
HALOGEN WHITE
81110SSEALED BEAM UNIT, NO.1
12V 65/35W,*HAL,*WB
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
HALOGEN WHITE
81121SPRING, HEADLAMP TENSION
HALOGEN WHITE
81131SCREW, HEADLAMP ADJUSTING
HALOGEN WHITE
81150HEADLAMP ASSY, LH
HALOGEN WHITE
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
HALOGEN WHITE
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
811311A200SCREW, HEADLAMP ADJUSTING
main81131-1A200
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905015
main90189-05015
9161160630
main91611-60630

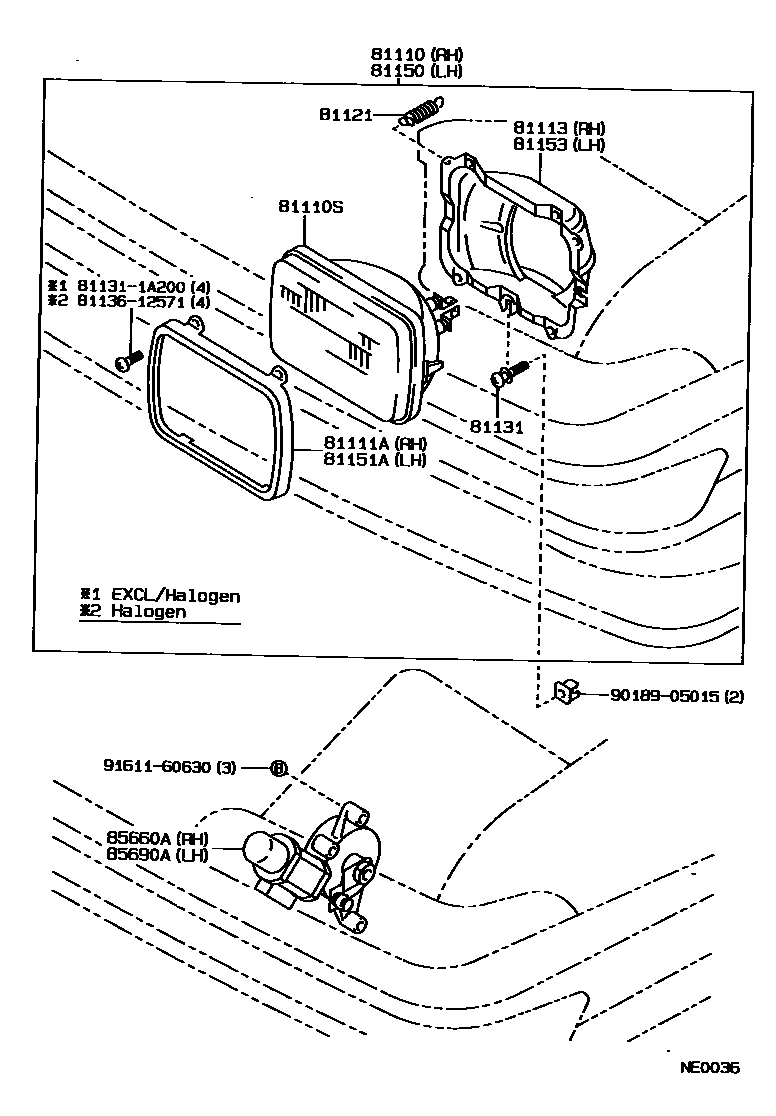

15 parts on this diagram · 1 diagram in section
