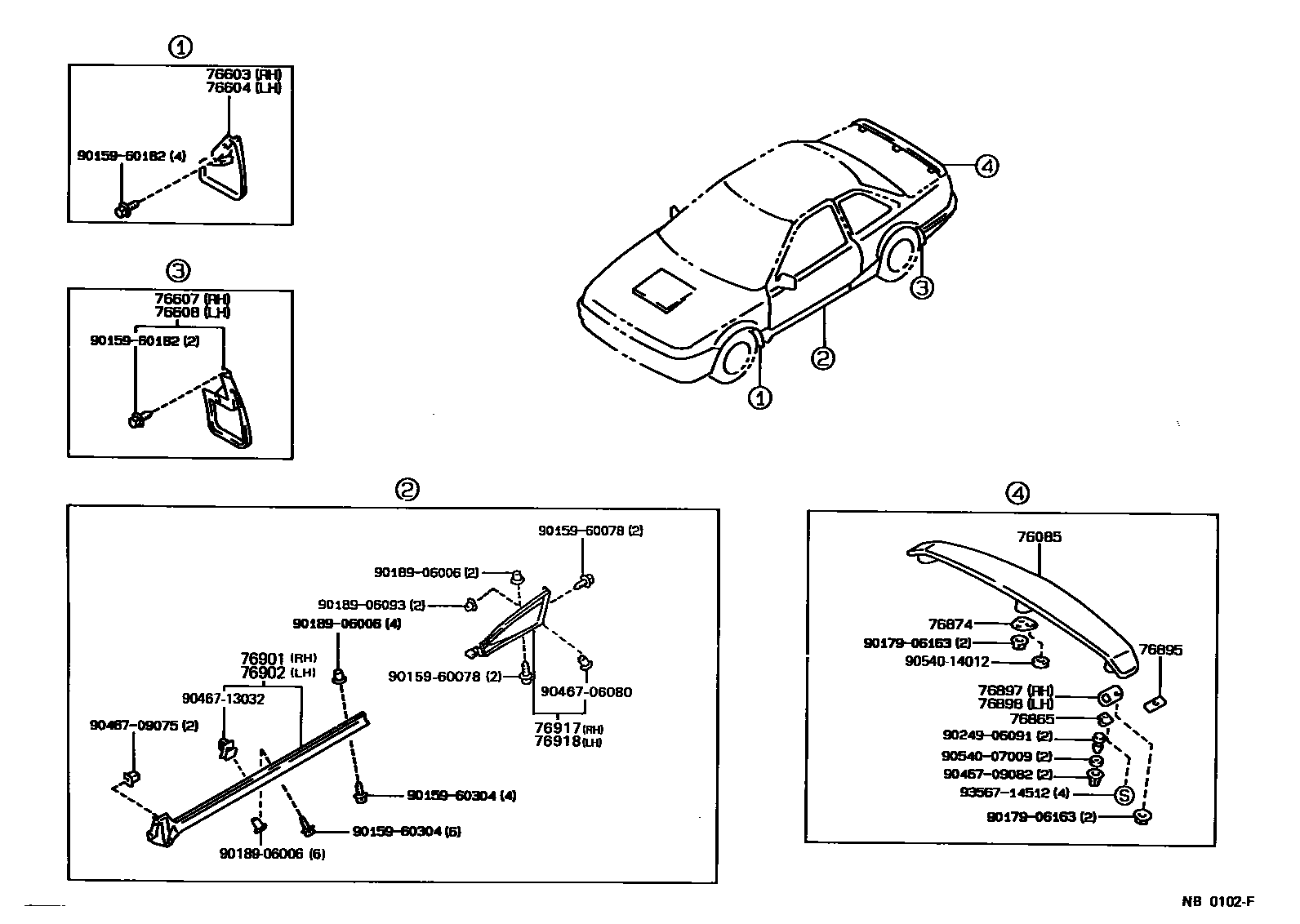

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
BLACK M,204
SURER RED 2,3E5
GRAY M,168 ,29E
GRAY M,168
BLUE M,8D7
SURER WHITE 2,040
BLUE M,8E3
DARK BLUEISH GRAY M,183
DARK BLUE MICA M,8E9
BLUE MICA M,8G1
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
BLACK M,204
SUPER RED 2,3E5
GRAY M,168 ,29E
GRAY M,168
BLUE M,8D7
SUPER WHITE 2,040
BLUE M,8E3
DARK BLUEISH GRAY M,183
DARK BLUE MICA M,8E9
BLUE MICA M,8G1
76865RETAINER, REAR SPOILER, NO.1
76874PROTECTOR, REAR SPOILER, NO.3
76895PROTECTOR, REAR SPOILER, NO.5
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76901MUDGUARD SUB-ASSY, SIDE, RH
BLACK M,204
SUPER RED 2,3E5
GRAY M,168 ,29E
GRAY M,168
SUPER WHITE 2,040
DARK BLUE MICA M,8E9
DARK BLUEISH GRAY M,183
BLUE MICA M,8G1
76902MUDGUARD SUB-ASSY, SIDE, LH
BLACK M,204
SUPER RED 2,3E5
GRAY M,168
GRAY M,168 ,29E
SUPER WHITE 2,040
DARK BLUE MICA M,8E9
DARK BLUEISH GRAY M,183
BLUE MICA M,8G1
76917MUDGUARD, SIDE, REAR RH
76918MUDGUARD, SIDE, REAR LH
9015960078
main90159-60078
9015960182
main90159-60182
9015960304
main90159-60304
9017906163
main90179-06163
9018906006
main90189-06006
9018906093
main90189-06093
9024906091
main90249-06091
9046706080
main90467-06080
9046709075
main90467-09075
9046709082
main90467-09082
9046713032
main90467-13032
9054007009
main90540-07009
9054014012
main90540-14012
9356714512
main93567-14512
28 parts on this diagram · 1 diagram in section
