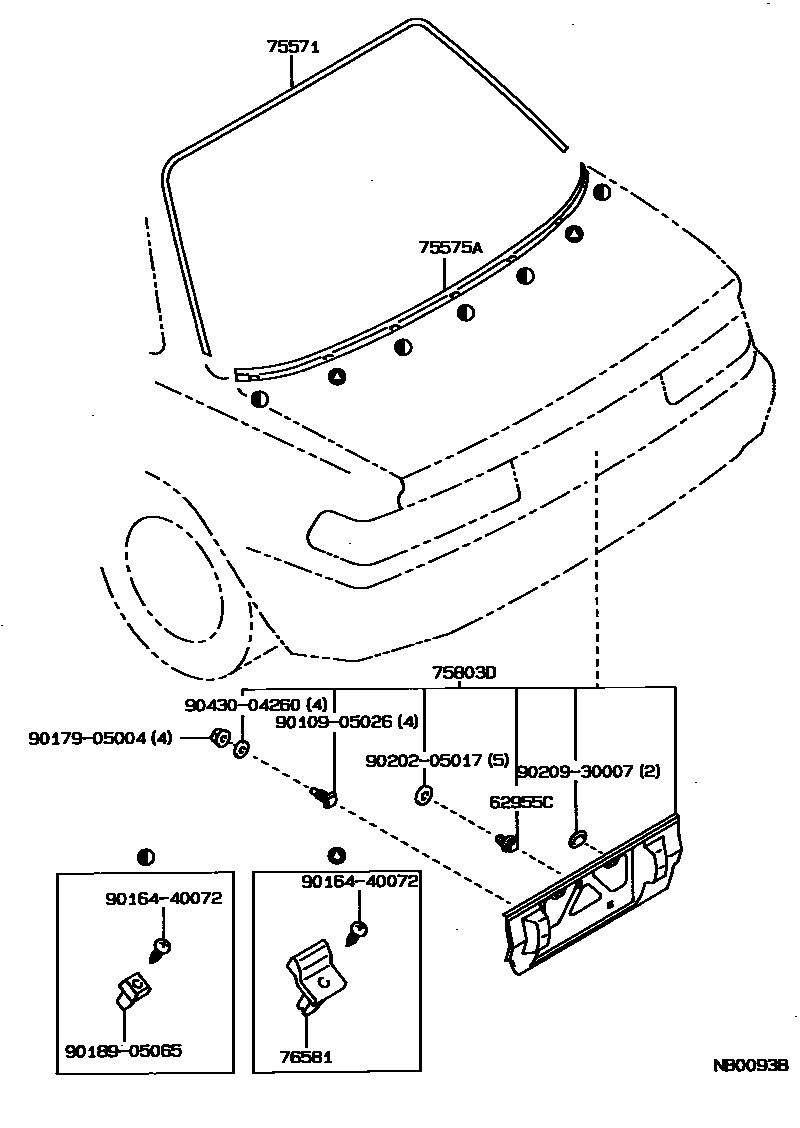

REAR MOULDING

62955CRETAINER, BACK DOOR MOULDING

main62955-20020iAE92198708-199106

sub62955-12010

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-12270iAE92198708-199106

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-12280iAE92198708-199106

75803DMOULDING SUB-ASSY, BACK DOOR, OUTSIDE LOWER

main75803-12100iAE92198708-199106

76581RETAINER, BACK WINDOW OUTSIDE MOULDING

main76581-12010iAE92198708-199106

9010905026

main90109-05026

9016440072

main90164-40072

9017905004

main90179-05004

9018905065

main90189-05065

9020205017

main90202-05017

9020930007

main90209-30007

9043004260

main90430-04260

12 parts on this diagram · 1 diagram in section
