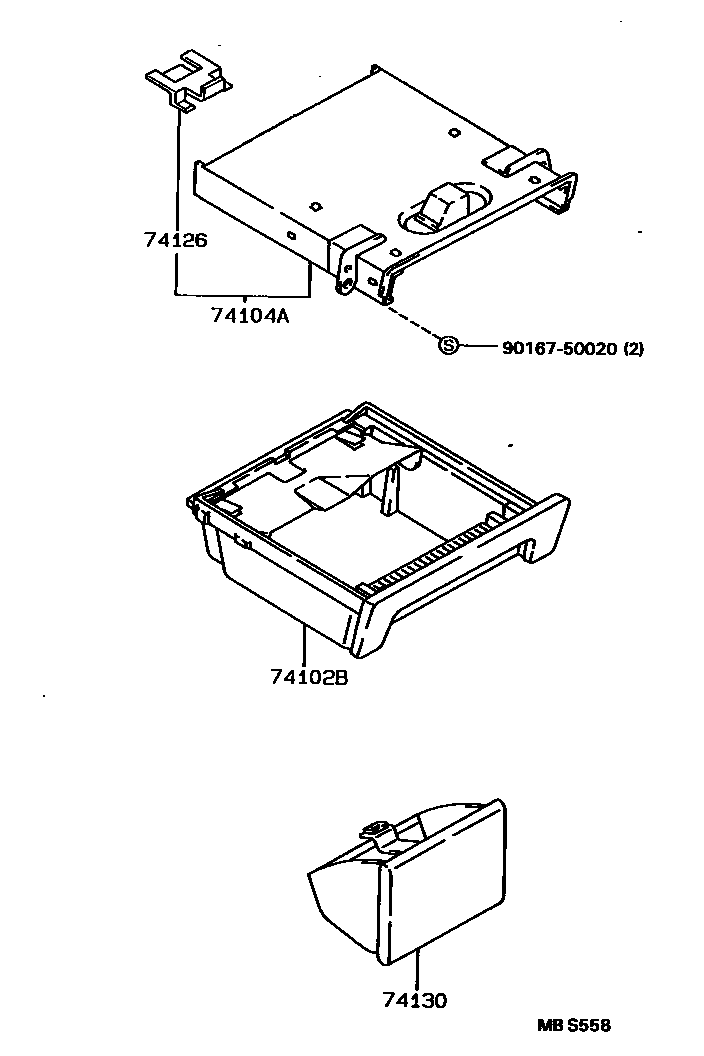

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12210-02iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

RED,TRIM3#

main74102-12210-03iAE92198708-199106

SHADOW GRAY,TRIM1#

main74102-12210-04iAE92198708-199106

DARK BLUE,TRIM8#

main74102-12210-05iAE92..CBR198708-198908

DARK BEIGE,TRIM4#

main74102-12210-06iAE92..(DX,SR5)..USA198908-199106

BROWN,TRIM4#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-12190iAE92198708-199106

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iAE92198708-199106

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-04iAE92198708-198807

DARK BLUE,TRIM8#

sub74109-20080

sub74109-32010

main74109-32010-05iAE92..CBR198708-198908

DARK BEIGE,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-13iAE92198708-199009

SHADOW GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-22iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

RED,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-B2iAE92..CND199009-199106

SHADOW GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-E0iAE92..(DX,SR5)..USA198908-199106

BROWN,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-J0iAE92198807-199106

DARK BLUE,TRIM8#

sub74109-20080

sub74109-32010

9016750020

main90167-50020

5 parts on this diagram · 1 diagram in section
