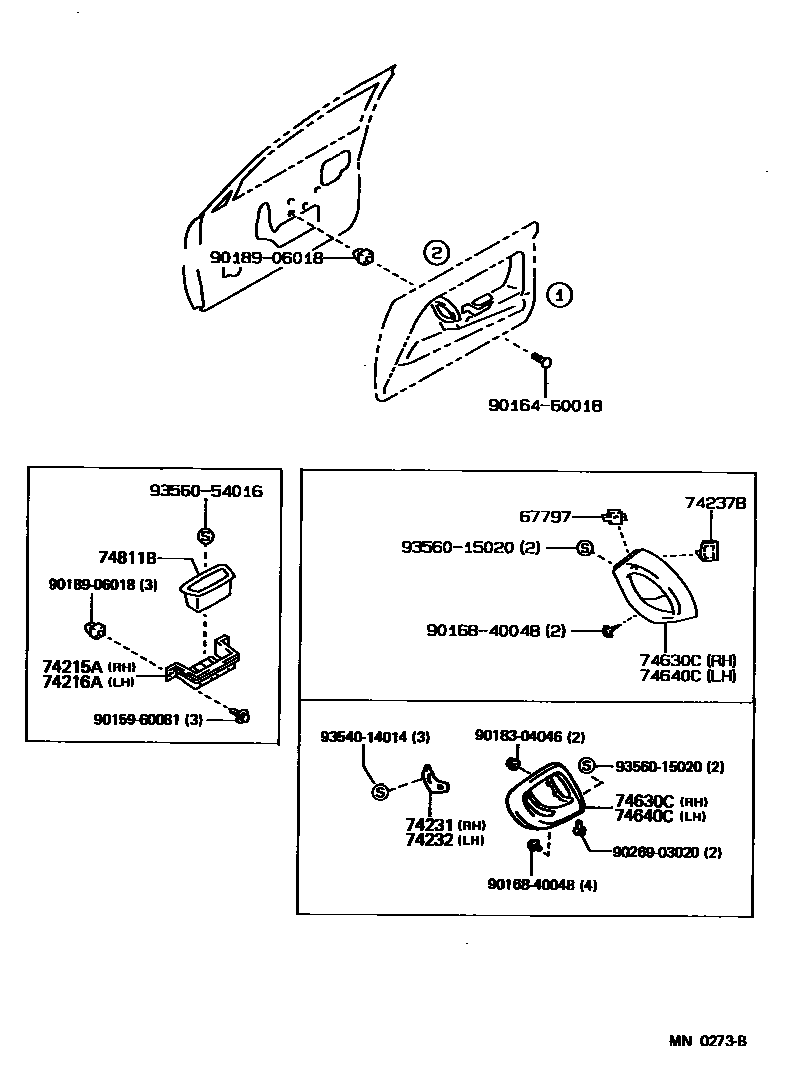

ARMREST & VISOR
67797RETAINER, DOOR TRIM ORNAMENT
74215ABASE, DOOR ARMREST RH
74216ABASE, DOOR ARMREST, LH
74231PANEL, FRONT ARMREST BASE, UPPER RH
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
74237BCAP, DOOR ARMREST BASE
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
74630CGRIP ASSY, DOOR ASSIST, RH
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
RED,TRIM3#
W(*PW & *EL),RED,TRIM3#
W(*PW & *EL),SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
W(*PW & *EL),DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BROWN,TRIM4#
74640CGRIP ASSY, DOOR ASSIST, LH
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
RED,TRIM3#
W(*PW & *EL),RED,TRIM3#
SHADOW GRAY,TRIM1#
W(*PW & *EL),SHADOW GRAY,TRIM1#
W(*PW & *EL),DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BROWN,TRIM4#
74811BHANDLE, DOOR PULL
9015960081
main90159-60081
9016460018
main90164-60018
9016840048
main90168-40048
9018304046
main90183-04046
9018906018
main90189-06018
9026903020
main90269-03020
9354014014
main93540-14014
9356015020
main93560-15020
9356054016
main93560-54016
18 parts on this diagram · 2 diagrams in section
