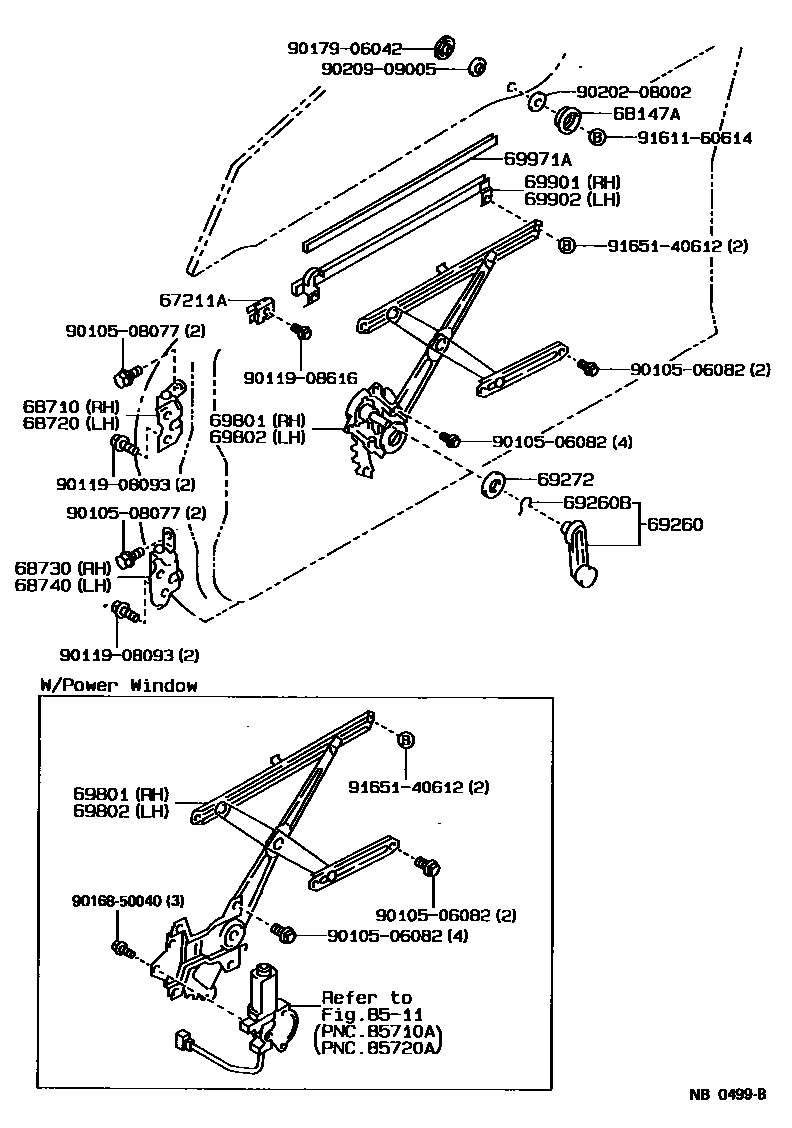

FRONT DOOR WINDOW REGULATOR & HINGE
67211ASTOP, FRONT DOOR WINDOW, UPPER
68147ASTOP, FRONT DOOR GLASS, UPPER
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
RED,TRIM3#
BROWN,TRIM4#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
W(POWER WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
W(POWER WINDOW)
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69971AFILLER, FRONT DOOR GLASS CHANNEL
8511
9010506082
9010508077
9011908093
9011908616
9016850040
9017906042
9020208002
9020909005
9161160614
9165140612
25 parts on this diagram · 1 diagram in section
