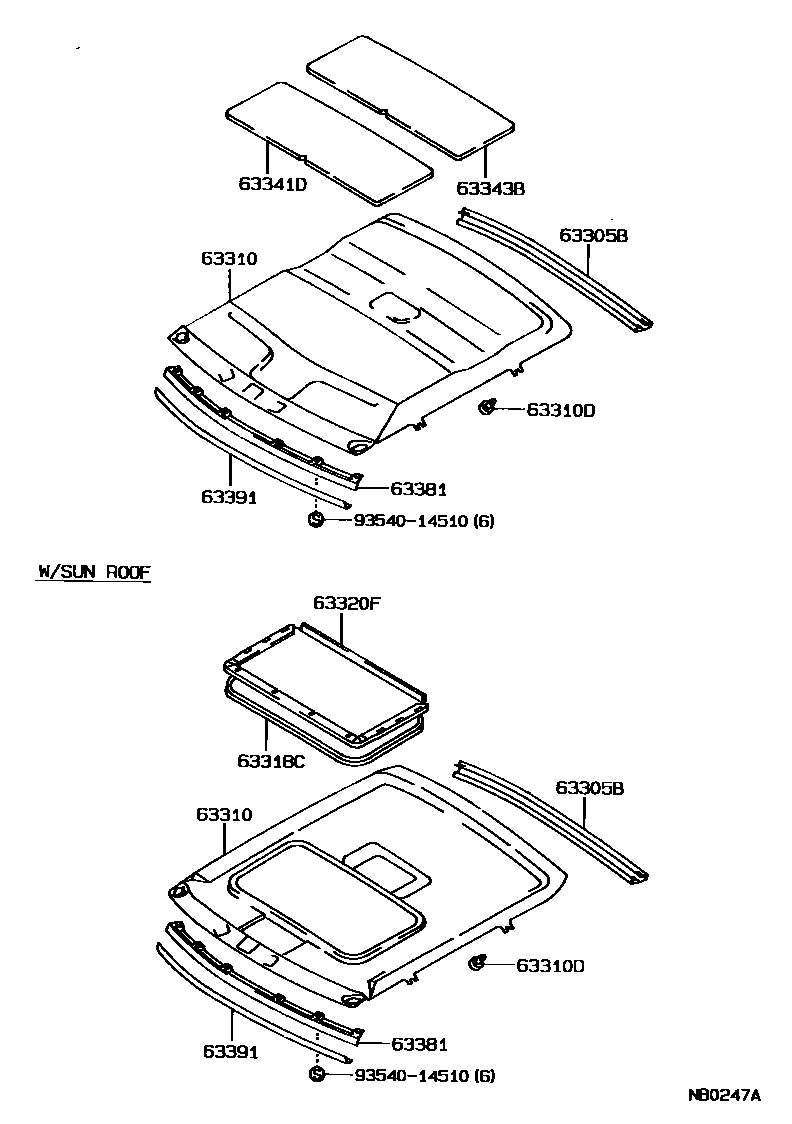

ROOF HEADLINING & SILENCER PAD

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12120-02iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

RED,TRIM3#

main63305-12120-03iAE92198708-199106

SHADOW GRAY,TRIM1#

main63305-12120-04iAE92198708-199106

DARK BLUE,TRIM8#

main63305-12120-05iAE92..CBR198708-198908

DARK BEIGE,TRIM4#

main63305-12120-06iAE92..(DX,SR5)..USA198908-199106

BROWN,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-1A110-02iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

W(SUN ROOF),RED,TRIM3#

main63310-1A110-03iAE92198708-199106

W(SUN ROOF),LIGHT GRAY,TRIM1#

main63310-1A110-04iAE92198708-199106

W(SUN ROOF),LIGHT BLUE,TRIM8#

main63310-1A110-05iAE92..CBR198708-198908

W(SUN ROOF),LIGHT BEIGE,TRIM4#

main63310-1A110-06iAE92..(DX,SR5)..USA198908-199106

W(SUN ROOF),LIGHT BROWN,TRIM4#

main63311-12780-02iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

RED,TRIM3#

main63311-12780-03iAE92198708-199106

LIGHT GRAY,TRIM1#

main63311-12780-04iAE92198708-199106

LIGHT BLUE,TRIM8#

main63311-12780-05iAE92..CBR198708-198908

LIGHT BEIGE,TRIM4#

main63311-12780-06iAE92..(DX,SR5)..USA198908-199106

LIGHT BROWN,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-07034iAE92198708-199106

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12060-02iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

RED,TRIM3#

main63318-12060-03iAE92198708-199106

LIGHT GRAY,TRIM1#

main63318-12060-04iAE92198708-199106

LIGHT BLUE,TRIM8#

main63318-12060-05iAE92..CBR198708-198908

LIGHT BEIGE,TRIM4#

main63318-12060-06iAE92..(DX,SR5)..USA198908-199106

LIGHT BROWN,TRIM4#

63320FHEADLINING ASSY, SUN ROOF

main63320-12080-02iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

RED,TRIM3#

main63320-12080-03iAE92198708-199106

LIGHT GRAY,TRIM1#

main63320-12080-04iAE92198708-199106

LIGHT BLUE,TRIM8#

main63320-12080-05iAE92..CBR198708-198908

LIGHT BEIGE,TRIM4#

main63320-12080-06iAE92..(DX,SR5)..USA198908-199106

LIGHT BROWN,TRIM4#

63341DPAD, ROOF SILENCER, FRONT

main63343-12050iAE92198708-199106

63343BPAD, ROOF SILENCER, REAR

main63343-12050iAE92198708-199106

63381RETAINER, HEADLINING, FRONT

main63381-12180iAE92198708-199106

63391TRIM, ROOF HEADLINING, FRONT

main63391-12100-02iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

RED,TRIM3#

sub63391-12100

main63391-12100-03iAE92198708-199106

SHADOW GRAY,TRIM1#

sub63391-12100

main63391-12100-04iAE92198708-199106

DARK BLUE,TRIM8#

sub63391-12100

main63391-12100-05iAE92..CBR198708-198908

DARK BEIGE,TRIM4#

sub63391-12100

main63391-12100-06iAE92..(DX,SR5)..USA198908-199106

BROWN,TRIM4#

sub63391-12100

9354014510

main93540-14510

10 parts on this diagram · 1 diagram in section
