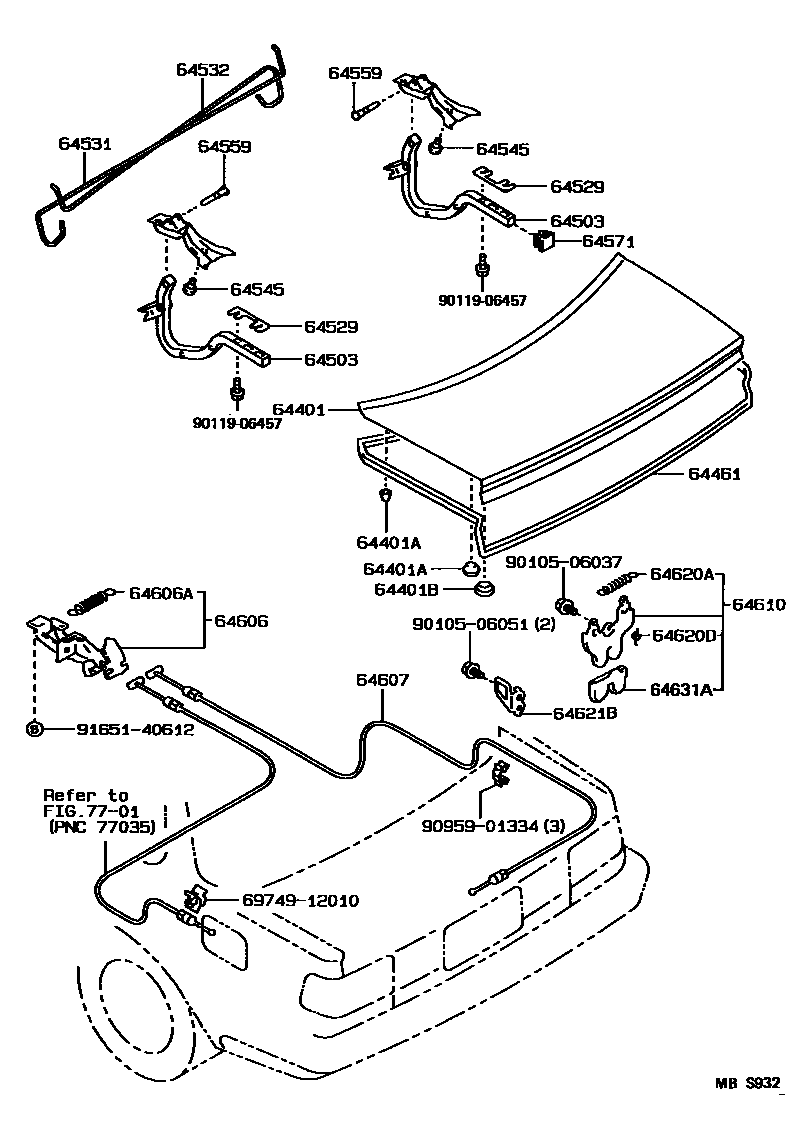

LUGGAGE COMPARTMENT DOOR & LOCK
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
RR
64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
sub90950-01881
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
W(REAR AIR SPOILER)
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
W(REAR AIR SPOILER)
64559PIN, LUGGAGE DOOR HINGE
64571COVER, LUGGAGE COMPARTMENT DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64620DSPRING, TORSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64631APROTECTOR, LUGGAGE DOOR LOCK
7701
6974912010CLAMP, FRONT DOOR LOCK LINK
main69749-12010
9010506037
main90105-06037
9010506051
main90105-06051
9011906457
main90119-06457
9095901334
main90959-01334
9165140612
main91651-40612
26 parts on this diagram · 1 diagram in section
