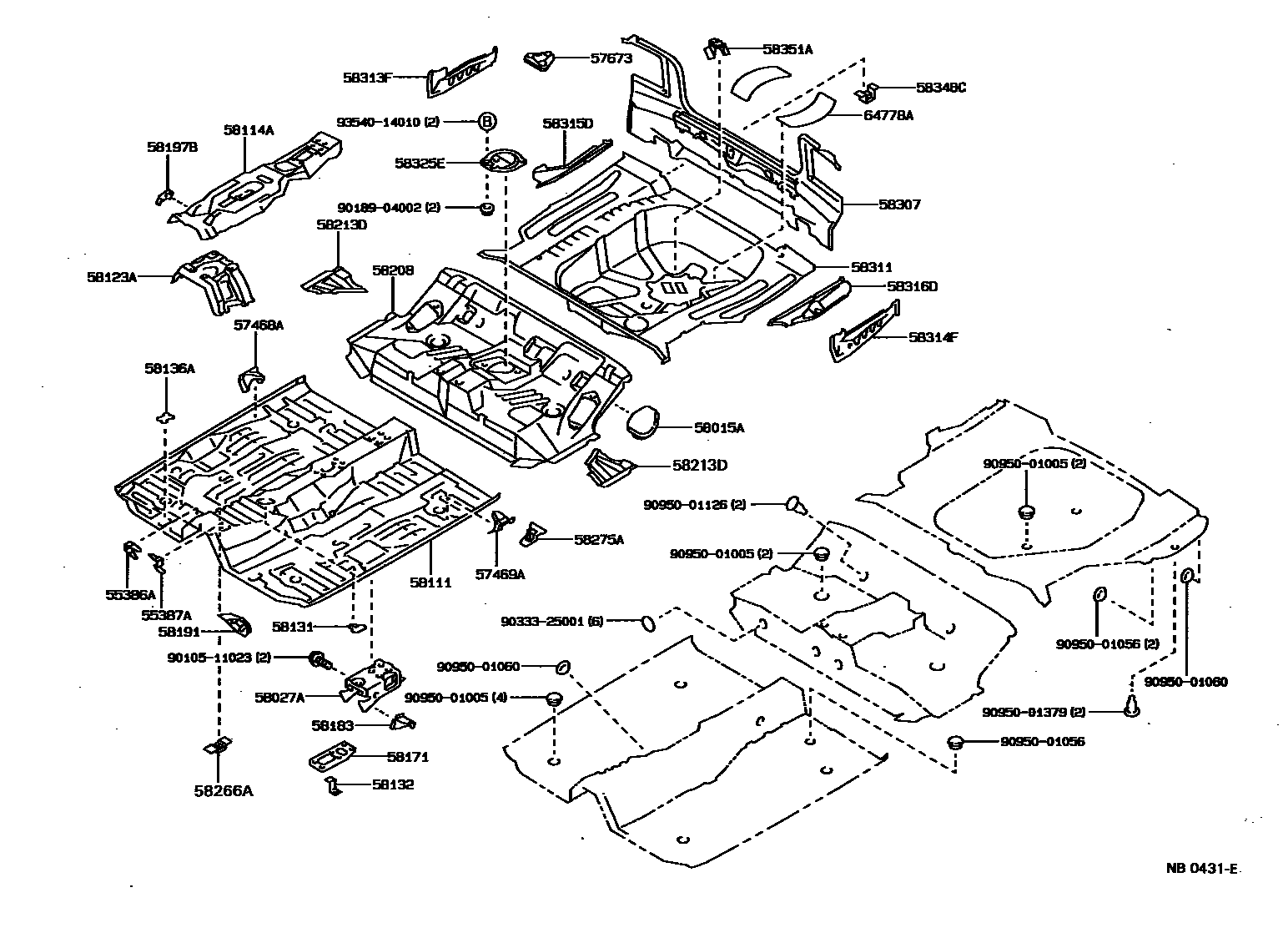

FLOOR PAN & LOWER BACK PANEL
55386ABRACKET, COMPUTER MOUNTING, NO.1
55387ABRACKET, COMPUTER MOUNTING, NO.2
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58208PAN, CENTER FLOOR
W(REAR SPLIT FOLD DOWN SEAT)
W(REAR SPLIT FOLD DOWN SEAT)
58213DREINFORCEMENT, CENTER FLOOR PANEL
RH
LH
58266ABRACKET, FUEL TUBE CLAMP
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58351ABRACKET, SPARE WHEEL CARRIER
64778APROTECTOR, SPARE WHEEL
sub64778-12030
9010511023
main90105-11023
9018904002
main90189-04002
9033325001
main90333-25001
9095001005
main90950-01005
9095001056
main90950-01056
9095001060
main90950-01060
9095001126
main90950-01126
9095001379
main90950-01379
9354014010
main93540-14010
40 parts on this diagram · 1 diagram in section
