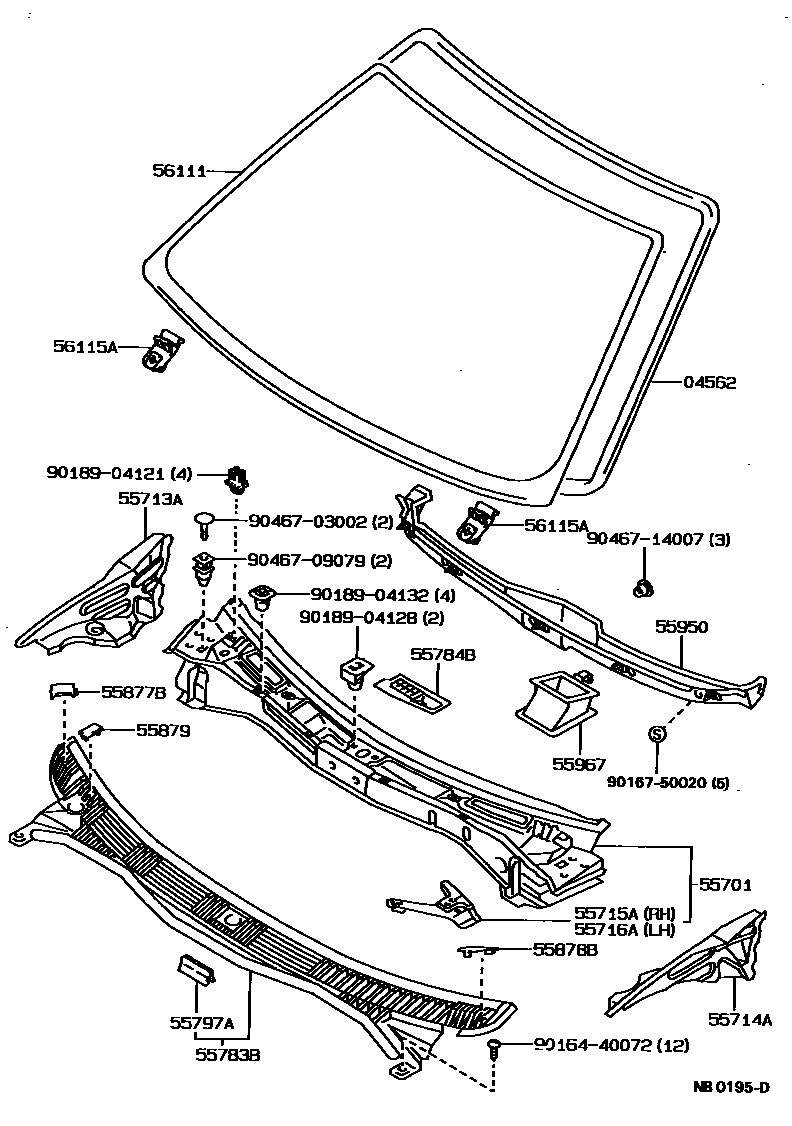

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE92198708-199106

55701PANEL SUB-ASSY, COWL

main55700-12600iAE92..DX,SR5198708-199106

main55700-12610iAE92..GTS198708-199106

55713APANEL, COWL TOP SIDE, RH

main55713-12070iAE92198708-199106

55714APANEL, COWL TOP SIDE, LH

main55714-12070iAE92198708-199106

55715ABRACE, COWL TOP TO APRON, RH

main55715-12090iAE92198708-199106

55716ABRACE, COWL TOP TO APRON, LH

main55716-12090iAE92198708-199106

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12050iAE92198708-199106

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-12080iAE92198708-199106

55797ASEAL, COWL WATER EXTRACT

main55797-12010iAE92198708-199106

55877BCOVER, COWL VENT, RH

main55877-12060iAE92198708-199106

55878BCOVER, COWL VENT, LH

main55878-12020iAE92198708-199106

55879PACKING, FRONT VENTILATOR

main55879-12050iAE92198708-199106

55950NOZZLE ASSY, DEFROSTER

main55950-12130iAE92198708-199106

55967NOZZLE, DEFROSTER, LOWER

main55967-12030iAE92198708-199106

56111GLASS, WINDSHIELD

main56111-1A070iAE92..GTS198708-199106

*TL,T=5.3

main56111-1A180iAE92..DX,SR5198708-199106

*TL,T=5.3

sub56111-1A070

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12030iAE92198708-199106

9016440072

main90164-40072

9016750020

main90167-50020

9018904121

main90189-04121

9018904128

main90189-04128

9018904132

main90189-04132

9046703002

main90467-03002

9046709079

main90467-09079

9046714007

main90467-14007

24 parts on this diagram · 1 diagram in section
