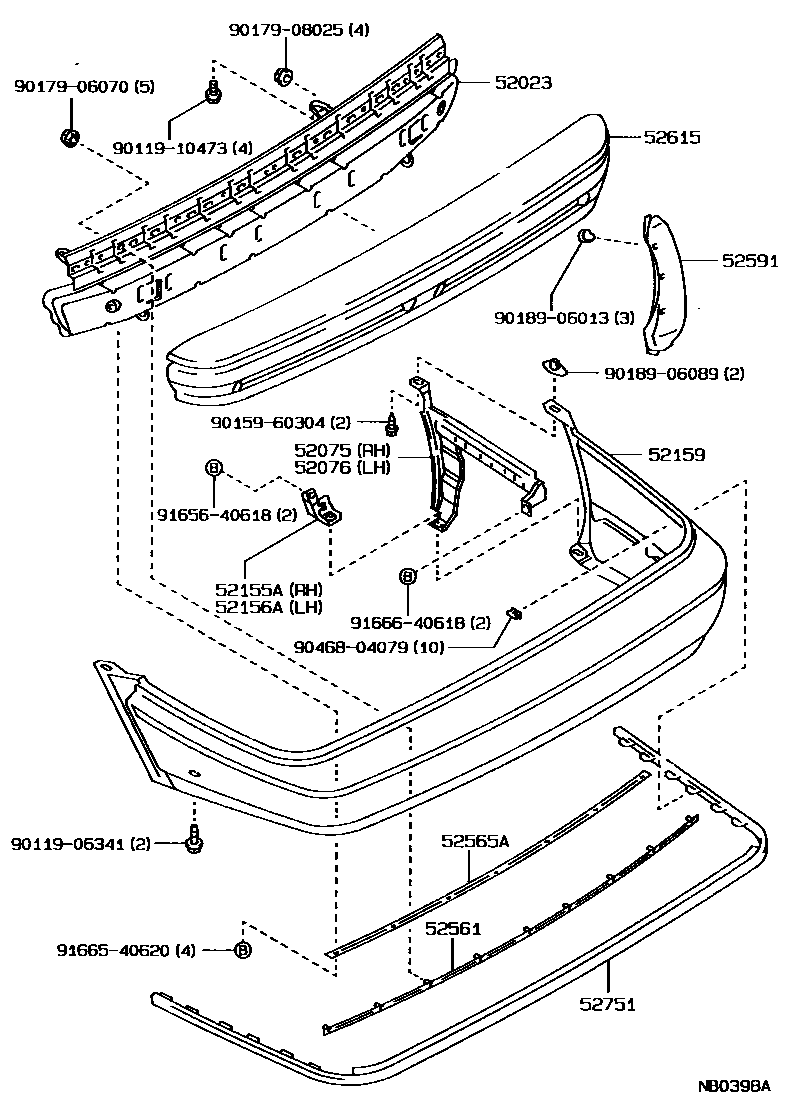

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-12130iAE92¥39,200198708-199106

52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH

main52075-12020iAE92¥3,000198708-199106

52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH

main52076-12020iAE92¥3,000198708-199106

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12160iAE92¥610198708-199106

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12130iAE92¥610198708-199106

52159COVER, REAR BUMPER

main52159-12870iAE92..DX,SR5198708-199106

main52159-12918iAE92198908-199106

W/O(PAINTED)

main52159-12918iAE92198708-199106

TREATED FOR PAINTING

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-12080iAE92¥2,750198708-199106

52565ARETAINER, REAR BUMPER, LOWER

main52565-20080iAE92¥3,250198708-199106

52591SEAL, REAR BUMPER SIDE, RH

main52591-12070iAE92¥750198708-199106

52615ABSORBER, REAR BUMPER ENERGY

main52615-12090iAE92198708-199106

52751MOULDING, REAR BUMPER

main52751-12200iAE92¥6,900198708-199106

9011906341

main90119-06341¥120

9011910473

main90119-10473¥190

9015960304

main90159-60304¥120

9017906070

main90179-06070¥180

9017908025

main90179-08025¥80

9018906013

main90189-06013¥70

9018906089

main90189-06089¥130

9046804079

main90468-04079¥160

9165640618

main91656-40618¥120

9166540520

main91665-40520

9166640618

main91666-40618¥120

22 parts on this diagram · 1 diagram in section
