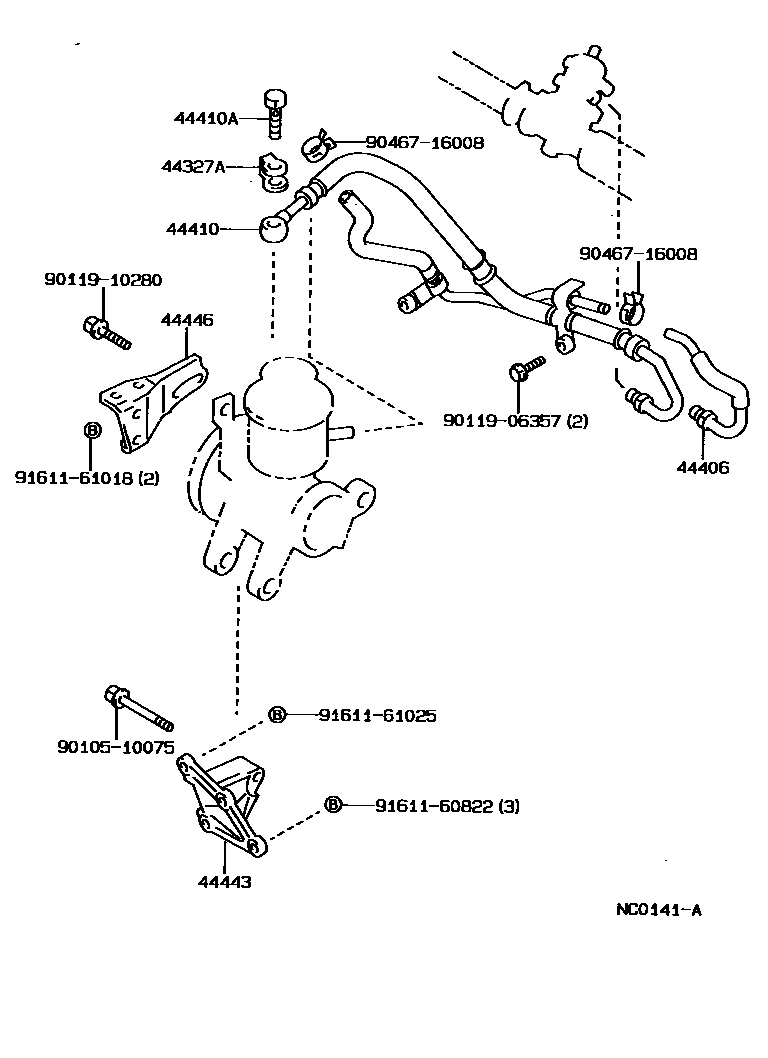

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE92..DX,SR5¥260198708-199106

44406TUBE SUB-ASSY, RETURN

main44406-12100iAE92..DX,SR5¥2,700198708-199106

main44406-12110iAE92..GTS¥2,660198708-199106

44410TUBE ASSY, PRESSURE FEED

main44410-12230iAE92..DX,SR5198708-199106

main44410-12310iAE92..EFI¥20,300198708-198905

sub44410-12311¥20,300

sub44420-12080¥7,100

main44410-12311iAE92..GTS¥20,300198905-199005

sub44410-12312¥20,200

main44410-12312iAE92..GTS¥20,200199005-199106

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE92..DX,SR5¥520198708-199106

44443BRACKET, PUMP

main44443-12050iAE92..DX,SR5¥8,500198708-199106

main44443-12060iAE92..GTS¥14,100198708-199106

44446STRUT, ADJUSTING

main44446-12040iAE92..DX,SR5¥1,810198708-199106

9010510075

main90105-10075¥180

9011906357

main90119-06357¥100

9011910280

main90119-10280¥360

9046716008

main90467-16008¥240

9161160822

main91611-60822¥170

9161161018

main91611-61018¥130

9161161025

main91611-61025¥240

13 parts on this diagram · 2 diagrams in section
