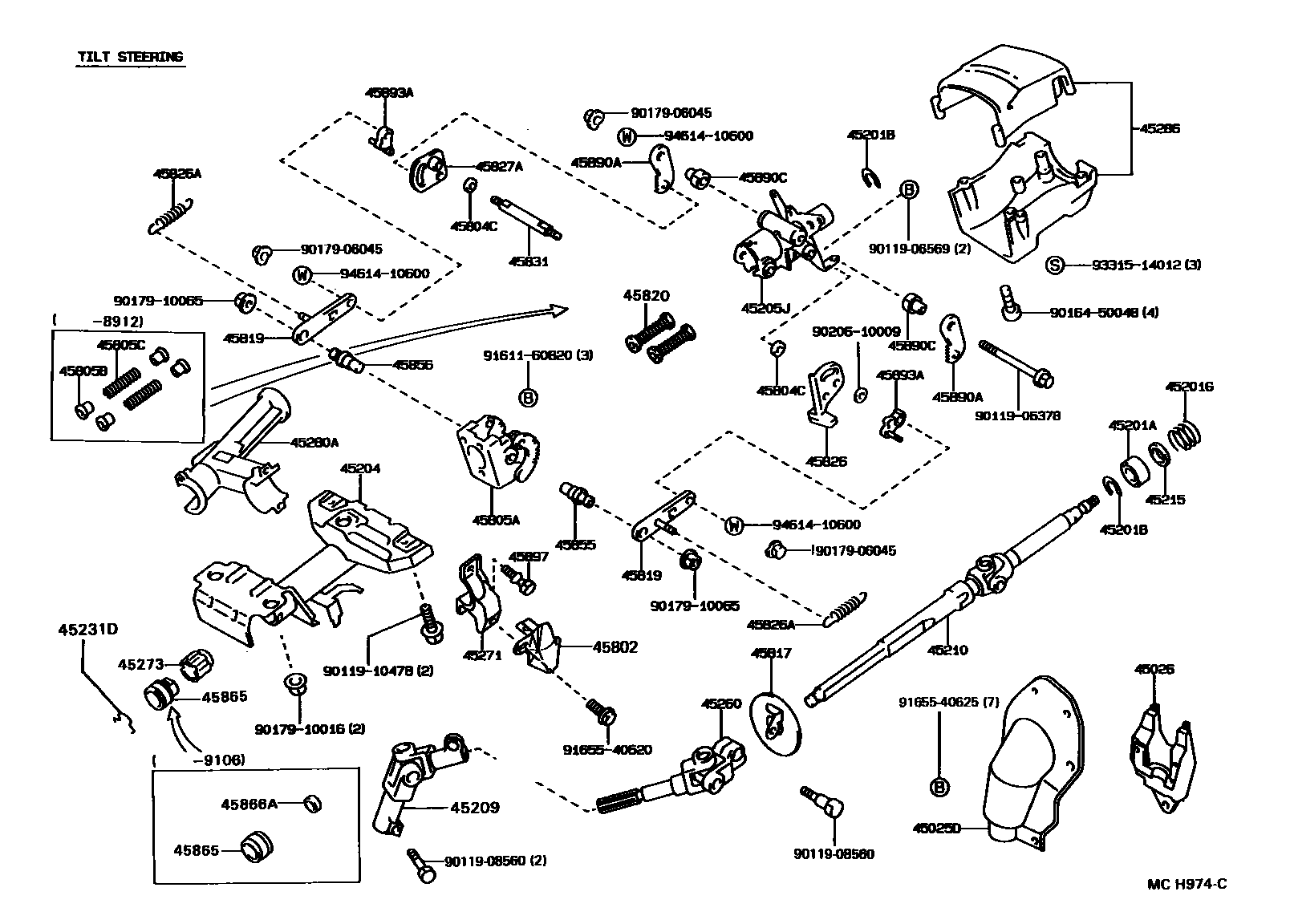

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12190iAE92198708-199106

main45025-12200iAE92..GTS198708-199009

W(POWER STEERING)

sub45025-12201

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12030iAE92198708-199106

main45026-12040iAE92..DX,SR5198708-199009

W(POWER STEERING)

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iAE92198708-198809

sub90363-18005

main90363-18005iAE92198809-199106

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAE92..CBR;AE92..USA..EFI198708-199106

T=1.20

main90520-17196iAE92..DX,SR5198708-199106

T=1.35-1.45

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAE92198708-199106

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-12090iAE92198708-198908

sub45204-12091

main45204-12091iAE92198908-199006

sub45204-12092

sub45273-22020

main45204-12092iAE92199006-199106

sub45204-12093

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12260iAE92198708-198809

sub45205-12261

main45205-12261iAE92198809-199106

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12050iAE92..5F..(DX,SR5)199009-199106

W(TILT STEERING & POWER STEERING)

main45209-12050iAE92198708-199106

W(POWER STEERING)

main45209-12050iAE92..GTS198908-199106

main45209-32010iAE92198708-199106

sub45209-10020

45210SHAFT ASSY, STEERING MAIN

main45210-12370iAE92..CND..CBR198708-198908

W(POWER STEERING)

main45210-12380iAE92..(DX,SR5)..USA;AE92..SR5..CND..EFI198708-199106

main45210-12390iAE92..5F..(DX,SR5)198708-199106

W(POWER STEERING)

main45210-12400iAE92..GTS198708-199106

W(TILT STEERING)

sub45210-12560

main45210-12400iAE92..ATM;AE92..5F..SR5..CND198908-199106

W(TILT STEERING & POWER STEERING)

sub45210-12560

main45210-12410iAE92..CND..CBR198708-198908

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAE92198708-199106

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iAE92198708-199006

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12220iAE92..CBR;AE92..5F..(DX,SR5)..USA..EFI198708-199106

W(TILT STEERING & POWER STEERING)

main45260-12220iAE92..ATM;AE92..5F..CND;AE92..GTS..USA198908-199106

main45260-12220iAE92..EFI198708-198908

W(POWER STEERING)

main45260-12240iAE92..EFI198708-198908

main45260-12240iAE92..CBR;AE92..5F..(DX,SR5)..USA..EFI198708-199106

W(TILT STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAE92..CND..CBR198708-199106

main45271-12060iAE92..GTS..CND198708-199106

main45271-12060iAE92..SR5..CND198708-199106

W(TILT STEERING)

main45271-12070iAE92..(DX,SR5)..USA;AE92..SR5..CND..EFI198708-199012

main45271-12080iAE92..USA..CBR;AE92..5F..(DX,SR5)..USA..EFI198708-199106

W(TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAE92..DX,SR5198708-199106

main45273-22020iAE92..5F..(DX,SR5)..USA199006-199106

W(TILT STEERING)

main45273-22020iAE92..5F..(DX,SR5)..USA199006-199106

W(TILT STEERING & POWER STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12110iAE92..5F..(DX,SR5)198708-199106

main45280-12130iAE92..GTS198708-199106

W(TILT STEERING)

main45280-12140iAE92..ATM198908-199106

main45280-12150iAE92..ATM198908-199106

W(TILT STEERING)

45286COVER, STEERING COLUMN

main45286-12941-03iAE92..CBR;AE92..SR5..CND..EFI198708-199106

SHADOW GRAY,TRIM1#

sub45286-12941

main45286-12941-04iAE92..CBR;AE92..SR5..CND..EFI198708-199106

DARK BLUE,TRIM8#

sub45286-12941

main45286-12941-05iAE92..CBR198708-198908

BEIGE,TRIM4#

sub45286-12941

main45286-12941-12iAE92..CBR;AE92..SR5..CND..EFI198708-199106

MAROON,TRIM3#

sub45286-12941

main45286-12943-03iAE92..EFI198708-199106

SHADOW GRAY,TRIM1#

sub45286-12943

main45286-12943-03iAE92..CBR;AE92..SR5..CND..EFI198708-199106

W(TILT STEERING),SHADOW GRAY,TRIM1#

sub45286-12943

main45286-12943-04iAE92..GTS..CND198708-199106

DARK BLUE,TRIM8#

sub45286-12943

main45286-12943-04iAE92..CBR;AE92..SR5..CND..EFI198708-199106

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-12943

main45286-12943-05iAE92..CBR198708-198908

W(TILT STEERING),BEIGE,TRIM4#

sub45286-12943

main45286-12943-12iAE92..EFI198708-199106

RED,TRIM3#

sub45286-12943

main45286-12943-12iAE92..CBR;AE92..SR5..CND..EFI198708-199106

W(TILT STEERING),RED,TRIM3#

sub45286-12943

main45286-12944-03iAE92..(DX,SR5)..USA198908-199106

SHADOW GRAY,TRIM1#

sub45286-12944

main45286-12944-04iAE92..(DX,SR5)..USA198908-198909

BLUE,TRIM8#

sub45286-12944

main45286-12944-06iAE92..(DX,SR5)..USA198908-199106

BROWN,TRIM4#

sub45286-12944

main45286-12944-12iAE92..SR5..USA198908-199106

RED,TRIM3#

sub45286-12944

main45286-12944-J0iAE92..SR5..USA198909-199106

DARK BLUE,TRIM8#

sub45286-12944

main45286-12945-03iAE92..GTS..USA198908-199106

SHADOW GRAY,TRIM1#

sub45286-12945

main45286-12945-03iAE92..(DX,SR5)..USA198908-199106

W(TILT STEERING),SHADOW GRAY,TRIM1#

sub45286-12945

main45286-12945-04iAE92..GTS..USA198908-198909

DARK BLUE,TRIM8#

sub45286-12945

main45286-12945-04iAE92..(DX,SR5)..USA198908-198909

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-12945

main45286-12945-06iAE92..DX199009-199106

BROWN,TRIM4#

sub45286-12945

main45286-12945-06iAE92..DX198908-199106

W(TILT STEERING),BROWN,TRIM4#

sub45286-12945

main45286-12945-12iAE92..GTS..USA198908-199106

W(TILT STEERING),RED,TRIM3#

sub45286-12945

main45286-12945-12iAE92..SR5..USA198908-199106

RED,TRIM3#

sub45286-12945

main45286-12945-J0iAE92..(DX,GTS)..USA198909-199106

W(TILT STEERING),DARK BLUE,TRIM8#

sub45286-12945

main45286-12945-J0iAE92..(DX,SR5)..USA198909-199106

DARK BLUE,TRIM8#

sub45286-12945

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45802-12020iAE92..USA198708-198908

main45802-12060iAE92..USA198908-199106

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283iAE92198708-199106

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iAE92198708-199106

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031iAE92198708-199001

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-20072iAE92198708-199001

sub45820-12010

45817STOPPER, STEERING SHAFT THRUST

main45817-12030iAE92..USA198708-199106

45819RETAINER, TILT LEVER

main45819-12010iAE92..CBR198708-199106

sub45819-12020

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010iAE92199001-199106

45826LEVER, STEERING TILT

main45826-12020iAE92198708-198905

main45826-12021iAE92198905-199106

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029iAE92198708-199106

45827ALEVER, STEERING TILT SUB

main45827-12010iAE92198708-198905

main45827-12011iAE92198905-199106

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iAE92198708-199106

45855BOLT, TILT STEERING, NO.1

main45855-12010iAE92198708-199106

OD=9.989-9.998

main45855-12020iAE92198708-199106

OD=9.998-10.007

45856BOLT, TILT STEERING, NO.2

main45856-12010iAE92198708-199106

OD=9.989-9.998

main45856-12020iAE92198708-199106

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iAE92198708-199106

sub45865-12060

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iAE92198708-199106

45890APAWL ASSY, TILT STEERING

main45890-12020iAE92198708-198905

LH

sub45890-12H00

main45890-12021iAE92198905-199106

LH

main45890-12030iAE92198708-198905

RH

sub45890-12H00

main45890-12031iAE92198905-199106

RH

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iAE92198708-199106

MARK 0

main90389-07005iAE92198708-199106

MARK 2

main90389-07006iAE92198708-199106

MARK 3

main90389-07007iAE92198708-199106

MARK 4

main90389-07008iAE92198708-199106

MARK A

main90389-07009iAE92198708-199106

MARK 6

main90389-07010iAE92198708-199106

MARK 7

main90389-07011iAE92198708-199106

MARK 8

45893ASTOPPER, TILT STEERING PAWL

main45893-12020iAE92198708-198905

LH

main45893-12021iAE92198905-199106

MARK A,LH

main45893-12070iAE92198708-198905

RH

main45893-12071iAE92198905-199106

MARK F OR 11,RH

main45893-12120iAE92198905-199106

MARK B,LH

main45893-12130iAE92198905-199106

MARK C,LH

main45893-12140iAE92198905-199106

MARK D,LH

main45893-12150iAE92198905-199106

MARK E,LH

main45893-12160iAE92198905-199106

MARK G OR 12,RH

main45893-12170iAE92198905-199106

MARK H OR 13,RH

main45893-12180iAE92198905-199106

MARK I OR 14,RH

main45893-12190iAE92198905-199106

MARK J OR 15,RH

45897BOLT, STEERING LOCK SET

main45897-12020iAE92198708-199106

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910478

main90119-10478

9016450048

main90164-50048

9017906045

main90179-06045

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9161160820

main91611-60820

9165540620

main91655-40620

9165540625

main91655-40625

9331514012

main93315-14012

9461410600

main94614-10600

50 parts on this diagram · 2 diagrams in section
