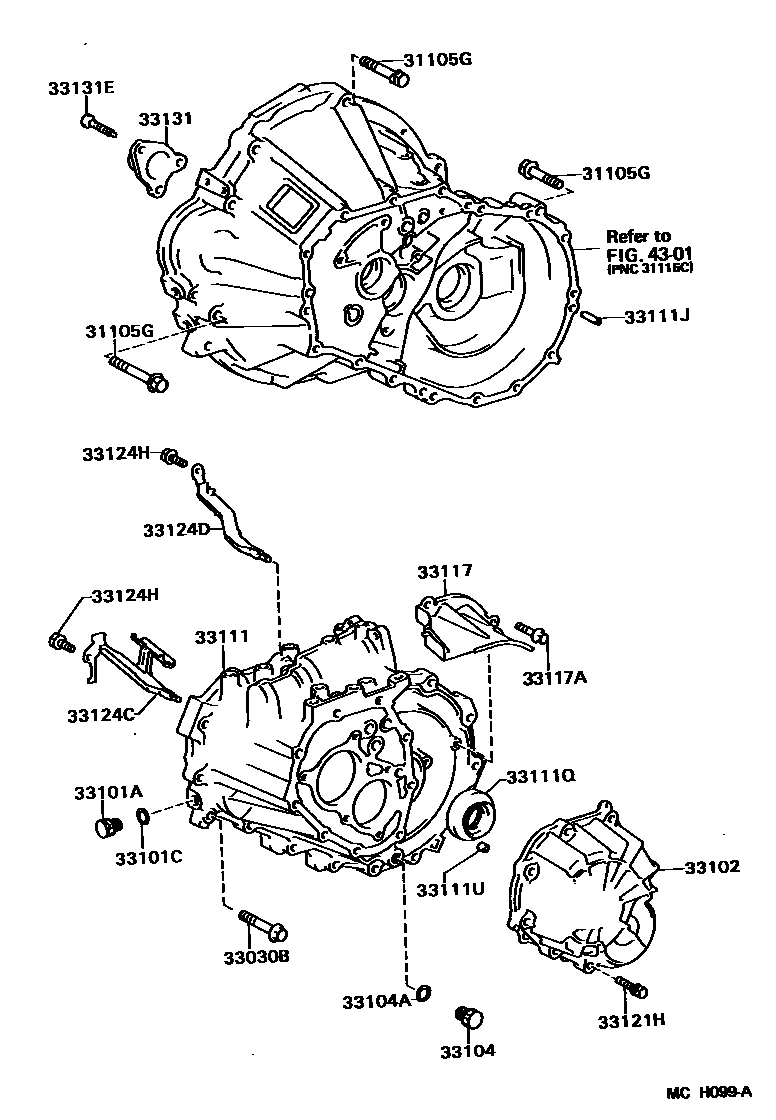

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iAE92..5F¥260198708-199106

*10-1.25PX43-26

main90119-12042iAE92..5F¥260198708-199106

*12-1.25PX75-30

main90119-12168iAE92..5F¥170198708-199106

*12-1.25PX55-30

main91611-61025iAE92..5F¥240198708-199106

*10-1.25PX25-25

sub91612-61025¥120

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064iAE92..5F¥190198708-199106

*8-1.25PX51-28

sub90105-08353¥100

main90105-08086iAE92..5F¥110198904-199106

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE92..5F¥180198708-199106

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAE92..5F¥110198708-199106

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12020iAE92..5F¥15,600198708-199105

sub33102-12021¥9,800

main33102-12021iAE92..5F¥9,800199105-199106

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE92..5F¥180198708-199106

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE92..5F¥110198708-199106

33111CASE, MANUAL TRANSMISSION

main33111-16040iAE92..5F¥35,000198708-199106

sub33111-16070¥35,000

sub90109-12073¥230

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAE92..5F¥120198708-199106

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAE92..5F¥310198708-199106

sub90311-34017¥270

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE92..5F¥120198708-199106

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAE92..5F..(DX,SR5)¥1,080198708-199011

sub33117-16010¥730

main33117-16010iAE92..5F¥730199011-199106

main33117-17010iAE92..GTS¥1,950198708-199011

sub33117-16010¥730

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAE92..5F¥180198708-199106

sub91641-H0820¥90

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main91611-60835iAE92..5F¥90198708-199106

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAE92..5F¥1,190198708-199106

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAE92..5F¥1,190198708-199106

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iAE92..5F¥200198708-199106

sub91611-G0820¥160

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAE92..5F¥1,760198708-199106

sub33131-12080¥1,760

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE92..5F¥70198708-199106

4301

20 parts on this diagram · 1 diagram in section
