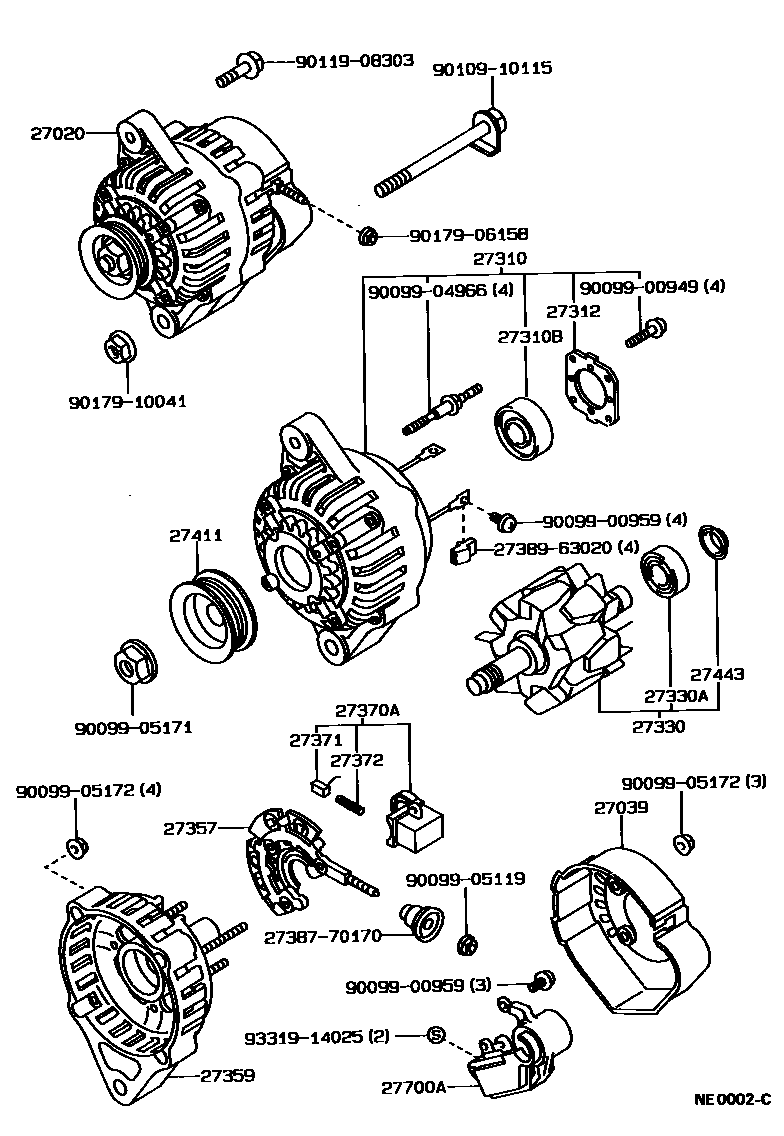

ALTERNATOR

0001 112V 60A 0003 112V 70A 0004 112V 60A

27020ALTERNATOR ASSY

main27060-16151i4AGE..AE92198708-198908

12V 60A

main27060-16160i4AF..AE92198708-198908

12V 60A

main27060-16170i4AFE..AE92..USA198908-199106

12V 70A

main27060-16180i4AGE..AE92..USA198908-199106

12V 70A

sub27060-16082

main27060-16230i4AFE..AE92..CND198908-199106

12V 70A

main27060-16240i4AGE..AE92..CND198908-199106

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-42010i4A#..AE92..CND198908-199106

sub27039-16310

main27039-72010i4A#..AE92..USA198708-199106

sub27039-15170

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16103i4AGE..AE92..USA198909-199106

main27310-16181i4AGE..AE92198708-198908

main27310-16190i4AFE..AE92..USA198708-199106

main27310-16260i4AFE..AE92..CND198908-199106

main27310-16270i4AGE..AE92..CND198908-199106

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10160i4A#..AE92..CND198908-199106

sub90099-10219

main90099-10178i4A#..AE92..USA198708-199106

main90099-10192i4AFE..AE92..CND199105-199106

27312PLATE, RETAINER

main27312-42010i4A#..AE92..CND198908-199106

main27312-70200i4A#..AE92..USA198708-199106

27330ROTOR ASSY, ALTERNATOR

main27330-42010i4A#..AE92..CND198908-199012

sub27330-76030

main27330-72101i4A#..AE92..USA198708-199106

main27330-76030i4A#..AE92..CND199012-199106

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AF#,4AGE..AE92198708-199106

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i4AGE..AE92198708-199106

main27357-63060i4AF..AE92198708-198908

main27357-74050i4A#..AE92..CND198908-199106

sub27357-74160

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16151i4AF..AE92198708-199106

sub27359-16152

sub27384-16380

main27359-16180i4AGE..AE92..USA198708-199106

sub27359-16181

sub27384-16380

main27359-16260i4AFE..AE92..CND198908-199106

sub27359-64500

main27359-16270i4AGE..AE92..CND198908-199106

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i4AGE..AE92..USA198708-199106

sub27370-54450

main27370-42010i4A#..AE92..CND198908-199106

sub27370-75060

main27370-63021i4AF..AE92198708-199105

sub27370-70300

main27370-70300i4AFE..AE92..USA199105-199106

sub27370-35060

main27370-75060i4AFE..AE92..CND199105-199106

27371BRUSH, ALTERNATOR

main27371-63020i4A#..AE92198708-199106

sub27371-70300

main27371-70300i4AFE..AE92..USA199105-199106

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4A#..AE92..USA198908-199106

sub27372-87501

main27372-72100i4A#..AE92198708-198908

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-16180i4A#..AE92..USA198708-199106

main27411-16190i4AF..AE92198708-198808

sub27411-16191

main27411-16191i4AF..AE92198808-198908

main27411-16260i4AFE..AE92..CND199012-199106

sub27411-16270

main27411-16270i4A#..AE92..CND198908-199106

27443COVER, ALTERNATOR BEARING

main27443-63020i4AF#,4AGE..AE92198708-199106

27700AREGULATOR ASSY, GENERATOR

main27700-16010i4AGE..AE92198708-199106

sub27700-66020

main27700-63021i4AF..AE92198708-198804

sub27700-70030

main27700-70030i4AF#..AE92198804-199106

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010910115

main90109-10115

9011908303

main90119-08303

9017906158

main90179-06158

9017910041

main90179-10041

9331914025

main93319-14025

28 parts on this diagram · 3 diagrams in section
