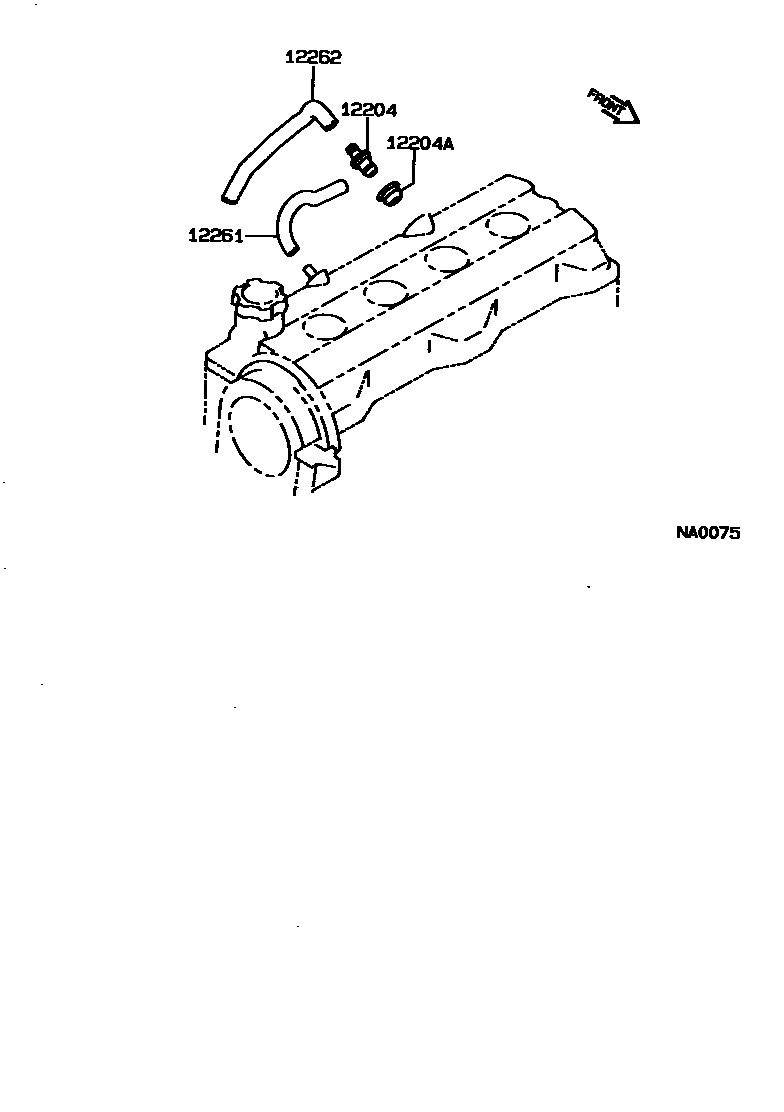

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-15030i4AF#..AE92¥1,290198708-199106

main90404-54038i4AGE..AE92¥510198908-199106

HEAD SIDE

main90406-17006i4AGE..AE92¥610198908-199106

BLOCK SIDE

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i4AF#..AE92¥390198708-199106

12261HOSE, VENTILATION

main12261-15090i4AF..AE92¥670198708-198908

main12261-16031i4AGE..AE92¥1,090198708-199106

main90445-10013i4AFE..AE92¥1,180198908-199106

sub90447-11006¥1,190

12262HOSE, VENTILATION, NO.2

main12262-15040i4AF..AE92¥880198708-198908

main12262-16040i4AGE..AE92¥1,030198908-199106

main90445-15037i4AFE..AE92¥700198908-199106

sub90445-15067¥530

4 parts on this diagram · 3 diagrams in section
