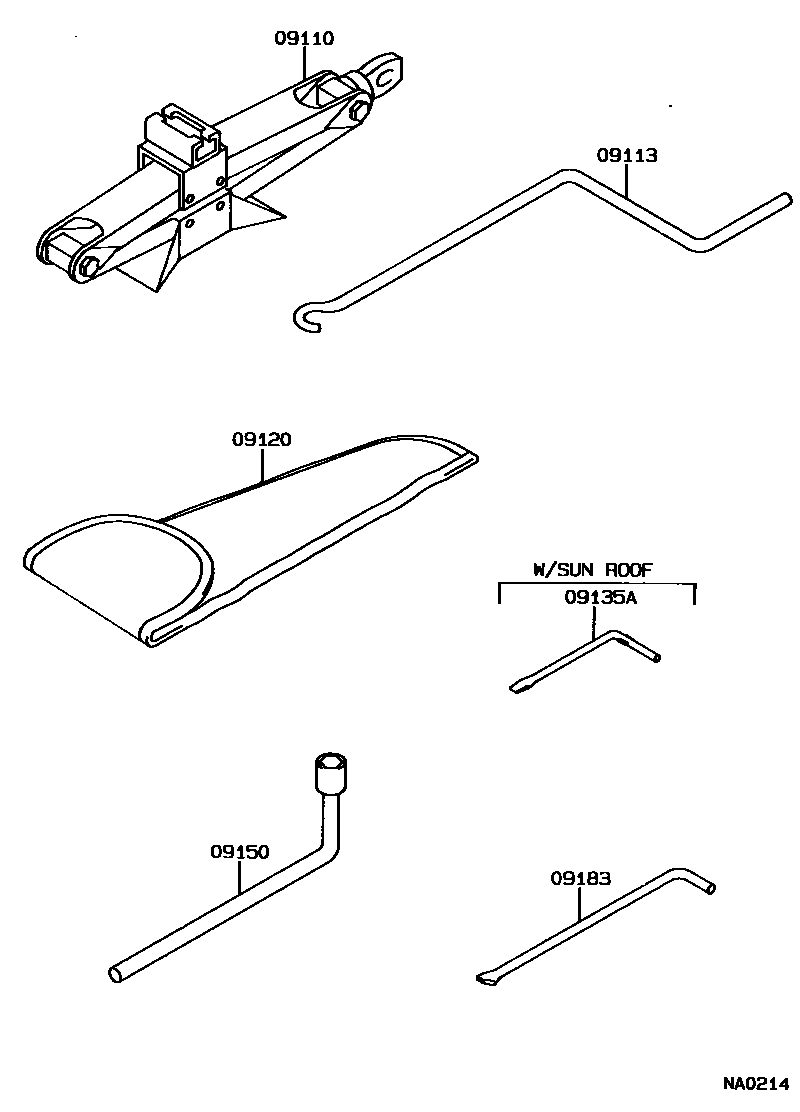

STANDARD TOOL

09110JACK ASSY

main09111-12100iAE92198708-199106

sub09111-20060

09113HANDLE, JACK

main09113-20030iAE92198708-199106

sub09113-20050

09120BAG, TOOL

main09120-12030iAE92198708-198810

sub09120-32010

main09120-32010iAE92198810-199106

09135ABIT, SCREW DRIVER

main09135-00012iAE92198708-199106

09150WRENCH, HUB NUT BOX

main09150-26010iAE92198708-199106

09183WRENCH, WHEEL CAP

main09183-00010iAE92198708-199106

6 parts on this diagram · 1 diagram in section
